Rohde & Schwarz CMU200 Service Manual

R&S PB Installation Instruction CMU-B41 AUDIO-GEN.+ANA. Bi/1CMK 18.11.99 1100.5397.00 02.00
page 4 of 7
2 Installation of the Option
2.1 Fitting
½ Remove clamp. Take off vent cover between air duct and cage since it is no longer needed (Fig. 3).
½ Plug module CMU-B41 into free slot at the right-hand side of unit.
½ Mount clamp again (Fig. 3).

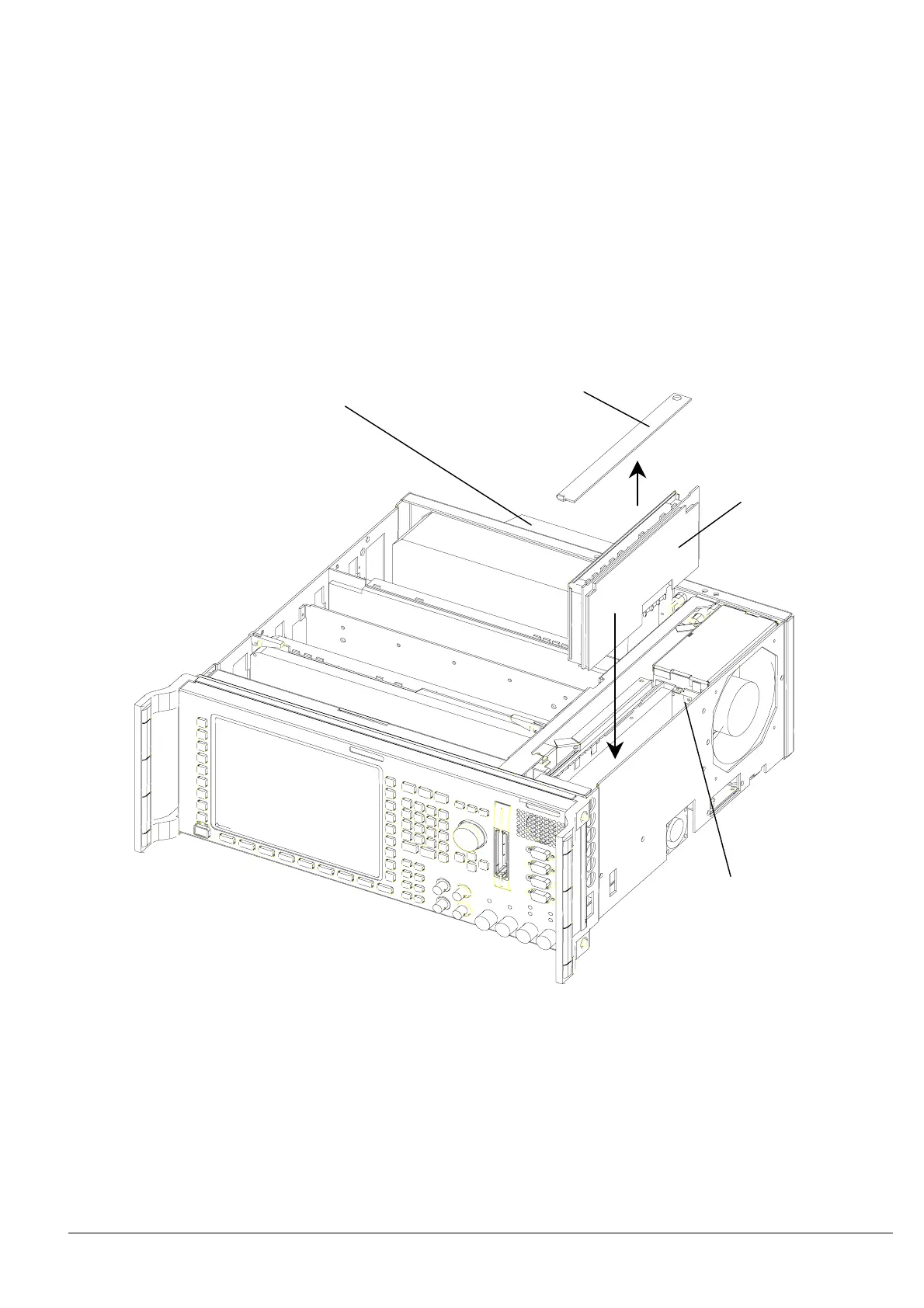

Fig. 3
CMU-B41
LABEL „OPTION INCL.“
