R&S PB Install. Instruction CMU-U61 FLOPPY DISKDRIVE Bi/1CMK 06.05.99 1100.5568.00 02.00
page 8 of 9
3 Assembling Unit
Affixing Label
½ Affix „CMU-U61“ label on power supply unit (Fig. 6).
Re-Mounting Front-Panel
½ Mount front module, labelling panel, front handles and casing in the reverse order to that
described under 1.4 to 1.11 (Fig. 2).
½ Connect the free end of flat cable to X218 on the motherboard.
Putting Casing Back
½ Fit casing and cabinet feet in the reverse order to that described under 1.2 / 1.3 (Fig. 1).

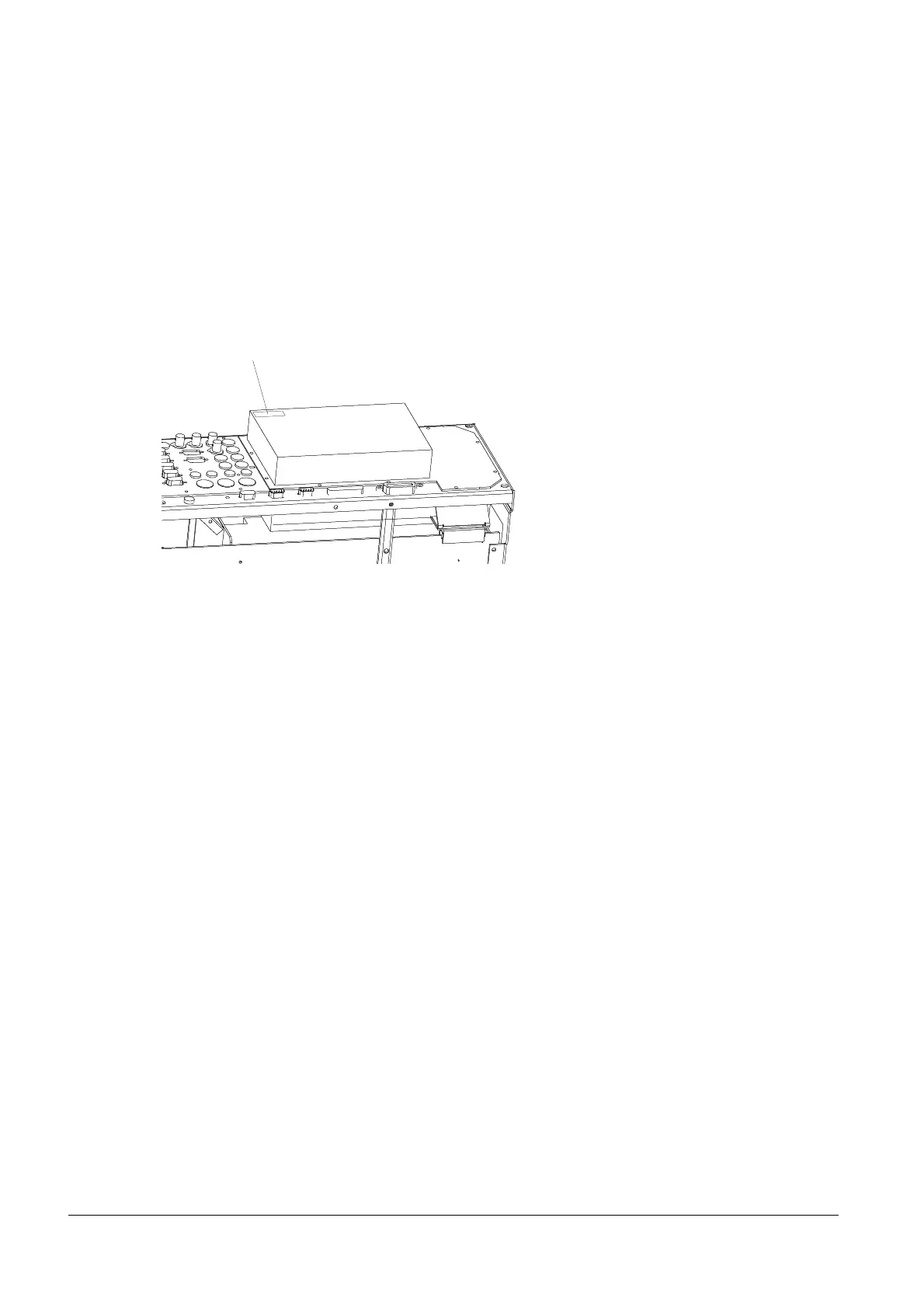

CMU-U61 label
Fig. 6
To Next Page
