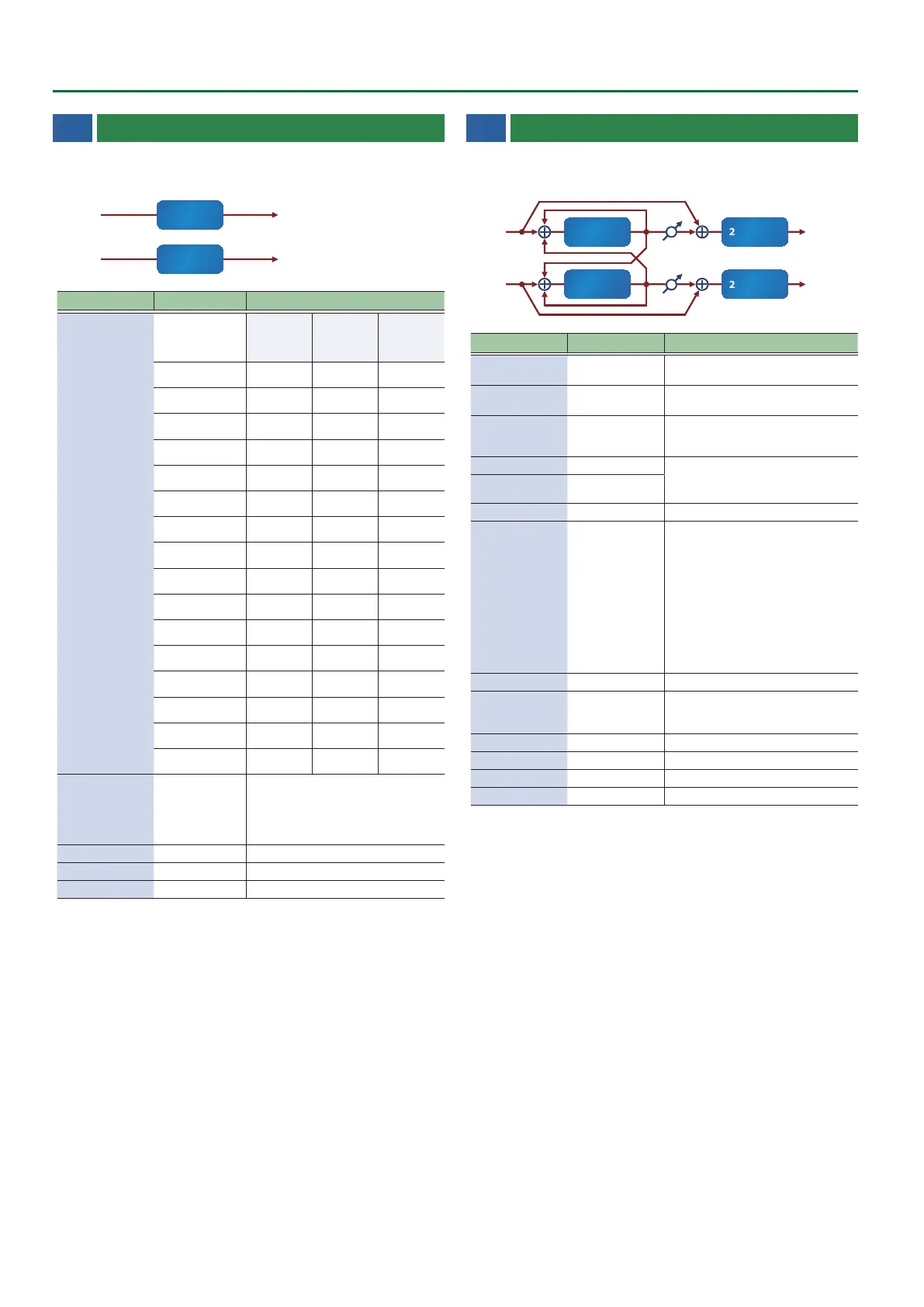

Roland AE-30 Parameter Guide

52
MFX/IFX Parameters
10 Speaker Sim
(Speaker Simulator)
Simulates the speaker type and microphone settings used to record
the speaker sound.
L in L out
R outR in
Speaker
Speaker
Parameter Value Explanation
Speaker Type
Cabinet
Diameter (in
inches) and
number of the
speaker
Microphone
SMALL 1
Small open-
back enclosure
10 Dynamic
SMALL 2
Small open-
back enclosure
10 Dynamic
MIDDLE
Open back
enclosure
12 x 1 Dynamic
JC-120
Open back
enclosure
12 x 2 Dynamic
BUILT-IN 1
Open back
enclosure
12 x 2 Dynamic
BUILT-IN 2
Open back
enclosure
12 x 2 Condenser
BUILT-IN 3
Open back
enclosure
12 x 2 Condenser
BUILT-IN 4
Open back
enclosure
12 x 2 Condenser
BUILT-IN 5
Open back
enclosure
12 x 2 Condenser
BG STACK 1
Sealed
enclosure
12 x 2 Condenser
BG STACK 2
Large sealed
enclosure
12 x 2 Condenser
MS STACK 1
Large sealed
enclosure
12 x 4 Condenser
MS STACK 2
Large sealed
enclosure
12 x 4 Condenser
METAL STACK
Large double
stack
12 x 4 Condenser
2-STACK
Large double
stack
12 x 4 Condenser
3-STACK
Large triple
stack
12 x 4 Condenser
Mic Setting 1, 2, 3
Adjusts the location of the microphone
that is recording the sound of the speaker.
This can be adjusted in three steps, with
the microphone becoming more distant
in the order of 1, 2, and 3.
Mic Level 0–127 Volume of the microphone
Direct Level 0–127 Volume of the direct sound
Level 0–127 Output Level
11 Phaser 1
This is a stereo phaser. A phase-shifted sound is added to the
original sound and modulated.
R outR in
2-Band EQPhaser
Mix
L in L out
Phaser 2-Band EQ
Mix
Parameter Value Explanation
Mode
4-STAGE, 8-STAGE,
12-STAGE
Number of stages in the phaser
Manual 0–127
Center frequency at which the sound is
modulated
Rate (sync sw) OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Scene Tempo” (p. 22)
Rate (Hz) 0.05–10.00 (Hz)
Modulation rate
Rate (note)
Note
& “Note” (p. 64)
Depth 0–127 Depth of modulation
Polarity INVERSE, SYNCHRO
Selects whether the left and right phase
of the modulation will be the same or the
opposite.
INVERSE: The left and right phase will be
opposite.
When using a mono source, this spreads
the sound.
SYNCHRO: The left and right phase will
be the same.
Select this when inputting a stereo
source.
Resonance 0–127 Amount of feedback
Cross Feedback -98–+98 (%)
Adjusts the proportion of the phaser
sound that is fed back into the effect.
Negative (-) settings will invert the phase.
Mix 0–127 Level of the phase-shifted sound
Low Gain -15–+15 (dB) Gain of the low range
High Gain -15–+15 (dB) Gain of the high range
Level 0–127 Output Level
