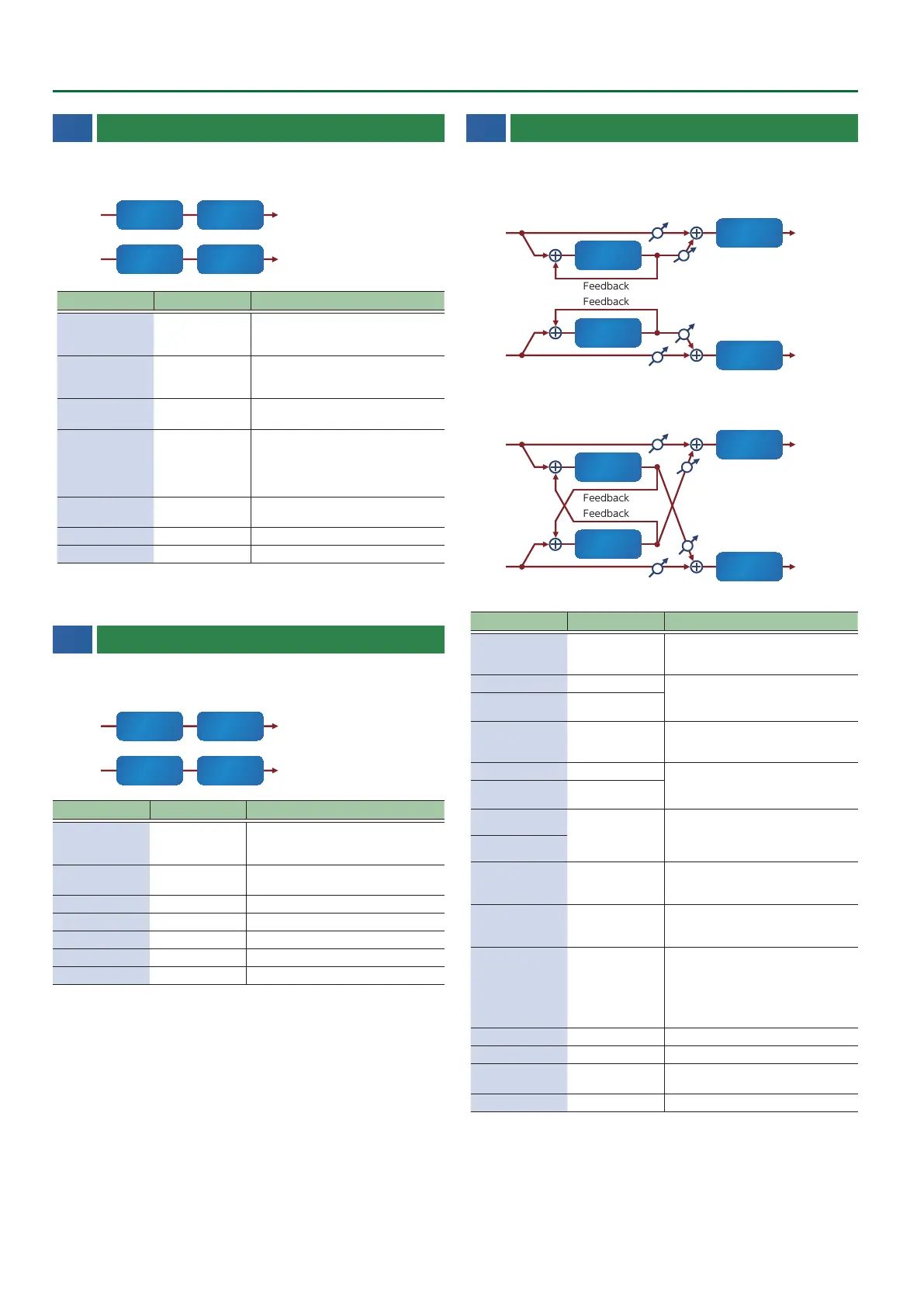

MFX/IFX Parameters
33 Compressor
Flattens out high levels and boosts low levels, smoothing out
fluctuations in volume.
L in L out
R outR in
Compressor 2-Band EQ
Compressor 2-Band EQ
Parameter Value Explanation
Attack 0–124
Sets the time from when the input
exceeds the Threshold until the volume
starts being compressed
Release 0–124
Adjusts the time after the signal volume
falls below the Threshold Level until
compression is no longer applied.
Threshold -60–0 (dB)
Adjusts the volume at which compression
begins
Knee 0–30 (dB)
This is a function that smooths the onset
of compression from the uncompressed
state; it gradually applies compression
starting earlier than Threshold. Higher
values produce a smoother transition.
Ratio
1:1, 1.5:1, 2:1, 4:1,
16:1, INF:1
Compression ratio
Post Gain 0–+18 (dB) Adjusts the output gain.
Level 0–127 Output Level
34 Limiter
Compresses signals that exceed a specified volume level, preventing
distortion from occurring.
L in L out
R outR in
Limiter 2-Band EQ
Limiter 2-Band EQ
Parameter Value Explanation
Release 0–127
Adjusts the time after the signal volume
falls below the Threshold Level until
compression is no longer applied.
Threshold 0–127
Adjusts the volume at which compression
begins
Ratio 1.5:1, 2:1, 4:1, 100:1 Compression ratio
Post Gain 0–+18 (dB) Adjusts the output gain.
Low Gain -15–+15 (dB) Gain of the low range
High Gain -15–+15 (dB) Gain of the high range
Level 0–127 Output Level
37 Delay
This is a stereo delay.
When Feedback Mode is NORMAL:
R out
L out
2-Band EQ
2-Band EQ
Balance W
Balance W
Feedback
Feedback
Balance D
Balance D
L in
Delay
Delay
R in
When Feedback Mode is CROSS:
R out
L out
2-Band EQ
2-Band EQ
Balance W
Balance W
Feedback
Feedback
Balance D
Balance D
L in
Delay
Delay
R in
Parameter Value Explanation
Delay L (sync sw) OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Scene Tempo” (p. 22)
Delay L (msec) 1–1300 (msec)
Adjusts the time until the left delay sound
is heard.
Delay L (note)
Note
& “Note” (p. 64)
Delay R (sync sw) OFF, ON
If this is ON, the rate synchronizes with
the tempo of the rhythm.
& “Scene Tempo” (p. 22)
Delay R (msec) 1–1300 (msec)
Adjusts the time until the right delay
sound is heard.
Delay R (note)
Note
& “Note” (p. 64)
Phase Left
NORMAL, INVERSE
Phase of left and right delay sound
NORMAL: Non-inverted
INVERT: Inverted
Phase Right
Feedback Mode NORMAL, CROSS
Selects the way in which delay sound is
fed back into the effect. (See the figures
above.)
Feedback -98–+98 (%)
Adjusts the proportion of the delay sound
that is fed back into the effect. Negative
(-) settings will invert the phase.
HF Damp
200, 250, 315, 400,
500, 630, 800, 1000,
1250, 1600, 2000,
2500, 3150, 4000,
5000, 6300, 8000,
BYPASS (Hz)
Adjusts the frequency above which the
delay sound fed back to the effect is
filtered out (BYPASS: no cut).
Low Gain -15–+15 (dB) Gain of the low range
High Gain -15–+15 (dB) Gain of the high range
Balance D100:0W–D0:100W
Volume balance between the direct
sound (D) and the delay sound (W)
Level 0–127 Output Level
