Rosco CSV Variable Width Chip Spreader 6-35
Schematics

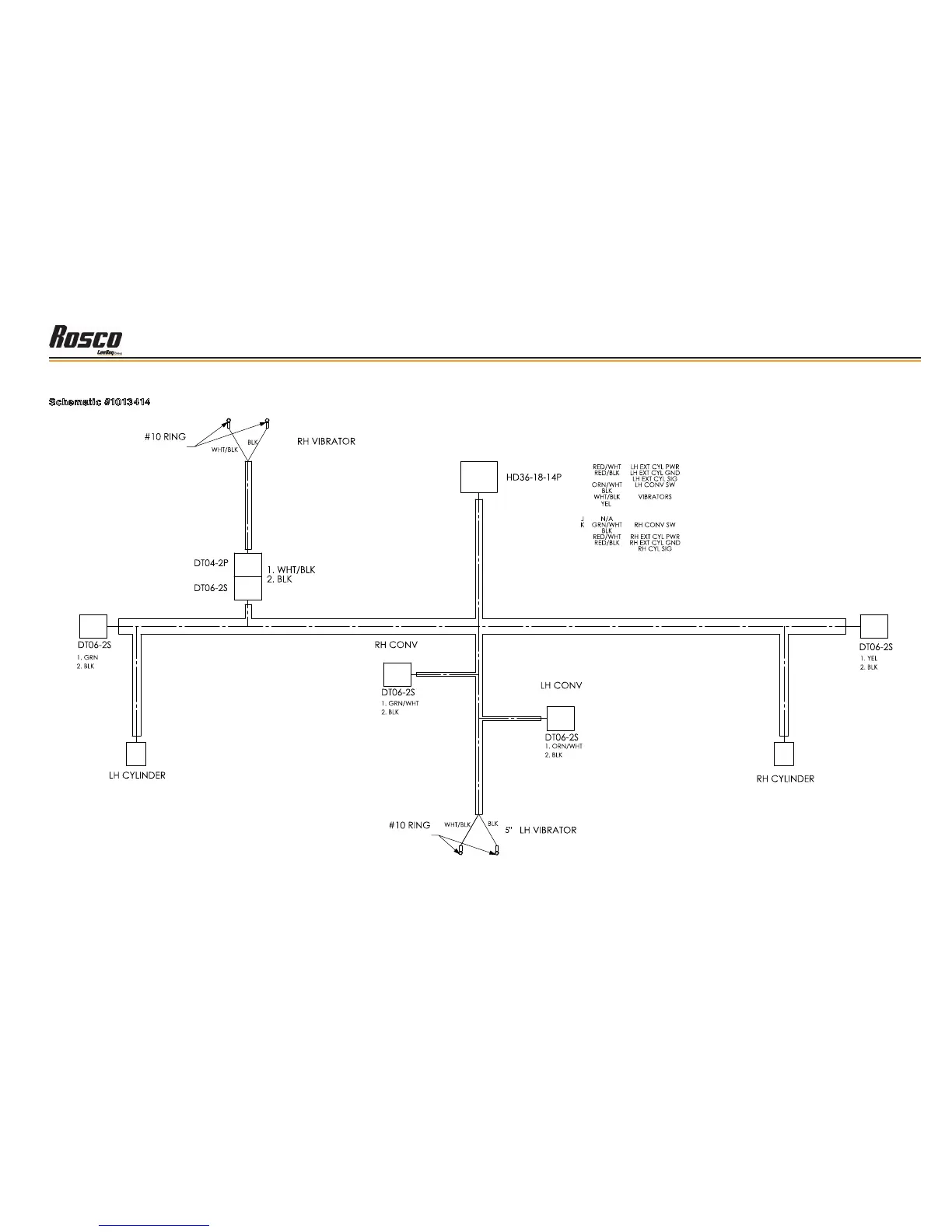

FRONT LIGHTS/EXTENSION CYLINDERS HARNESS
Schematic #1013414
Figure 6-17. Front Lights/Extension Cylinders Harness
RIGHT
TURN
SIGNAL
LEFT
TURN
SIGNAL
SWITCH
SWITCH
TERMINAL
TERMINAL
PIN
COLOR
FUNCTION
A
B
C
GRN
D
E
GROUND
F
G
LH TURN SIGNAL
H
GRN
RH TURN SIGNAL
L
GROUND
M
N
P
GRN
