If the DEF level is low, a warning light will illuminate
on the DP710 digital display unit on the control panel.
(Page 4-13) Be sure the DEF uid in the tank is not
contaminated before relling. Dispose of DEF uid in
accordance with environmental laws.
Never operate the machine with
an empty DEF tank to prevent serious engine and
emission system damage.

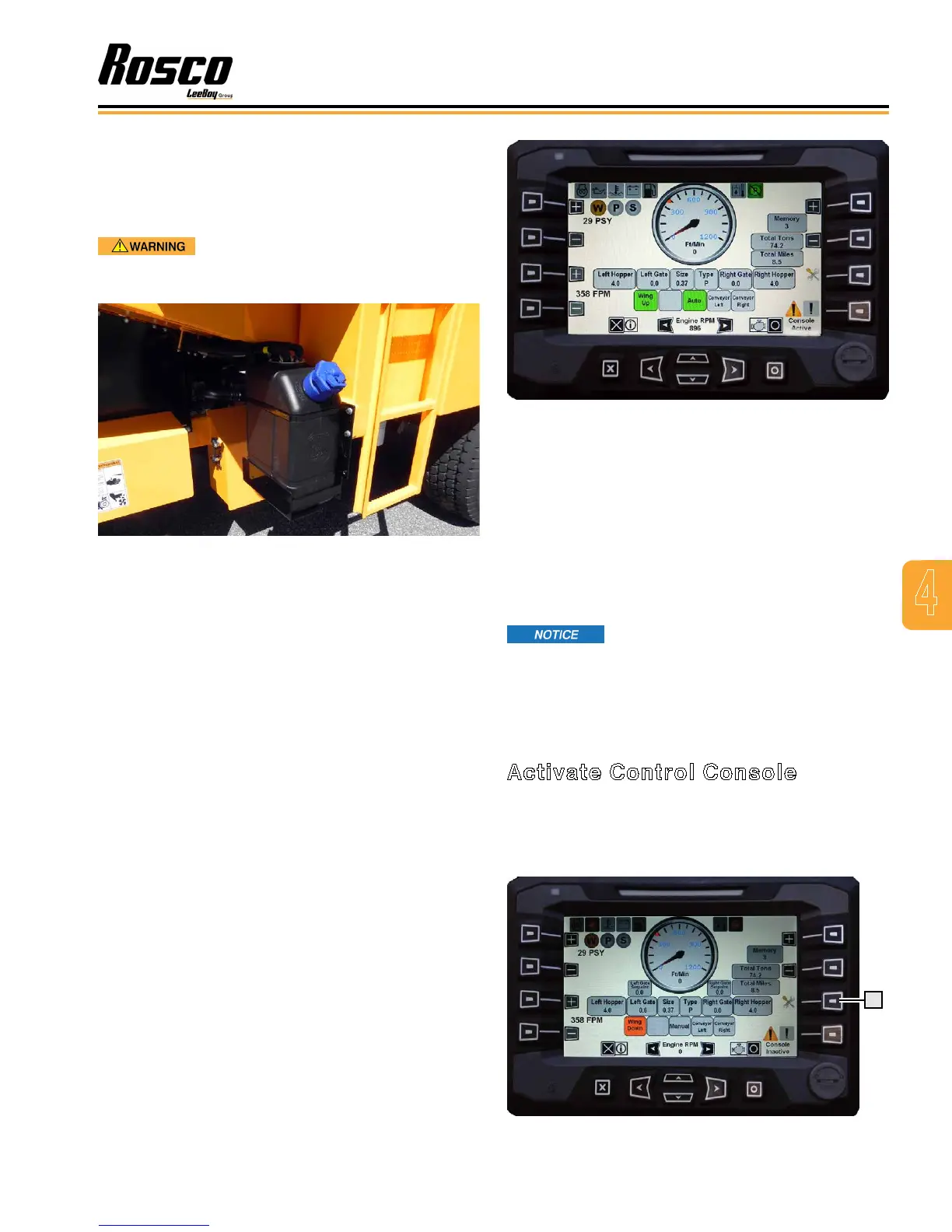

Figure 4-5. DEF Fluid Tank
DP710 DIGITAL DISPLAY
The CSV Variable Width Chip Spreader is equipped with
the latest in digital technology for controlling mechanical
and hydraulic functions, system information, system
faults, diagnostics and user settings. Operators should
understand and learn how to use the features in DP710
digital display as discussed in the following pages
before operating the machine.
The digital display unit functions as a master control
unit that gathers operating information. Graphic display
controls and shows operational functions and status
along with important system information such as engine
oil pressure, water temperature, RPMs, voltage, fuel
level and hydraulic oil temperature.
When turning the ignition key to the ON position, a
sequence of screens will display on the controller. The
DP710 digital display will illuminate, displaying the Rosco
logo as the system “boots.” Then the main screen will
appear. (Figure 4-6)
Figure 4-6. Main Screen
Buttons along each side of the display screen, and the
Left/Right and Up/Down buttons along the bottom, are
used to navigate within specic functions.
The “0” button always navigates to the engine
screen. Within the engine screen, the “0” button is
used to turn the beacon and work lights on and off.
NOTE: If equipped with two operator stations, you
must activate the console on the station
being used.
Clean the display’s housing and
protective glass with a clean, soft, damp cloth. Use
only a mild detergent. Abrasive pads or solvents,
including alcohol, can cause scratching and
discoloration.
Activate Control Console
If equipped with dual operator platforms, activating the
control console on the operator station being used is
accomplished on the DP710 Main screen. Only one
console can be activated at a time.
1
Figure 4-7. Main Screen
4
Operation
Rosco CSV Variable Width Chip Spreader 4-7
