Reverse Camera Function (Option): If equipped
with the optional reverse camera, pressing Button 5
allows manual activation of the reverse camera when
backing. (Page 4-26) When the reverse camera
feed is activated, the screen will split the camera and
engine screen view 50/50 on the active control panel.
(If equipped with dual operator stations, it will display
full screen on the inactive control panel. If the camera
button is pressed on the inactive control panel, the
camera feed will only show full-screen on that console.)
Pressing Button 6 navigates to the Settings screen.
Indicators on the engine screen also show oil pressure,
hydraulic temperature, engine hours, fuel level, DEF
(diesel exhaust uid) level and battery charge level. The
tachometer is also shown on this screen. (Figure 4-15)
2
3
4
5
6
7

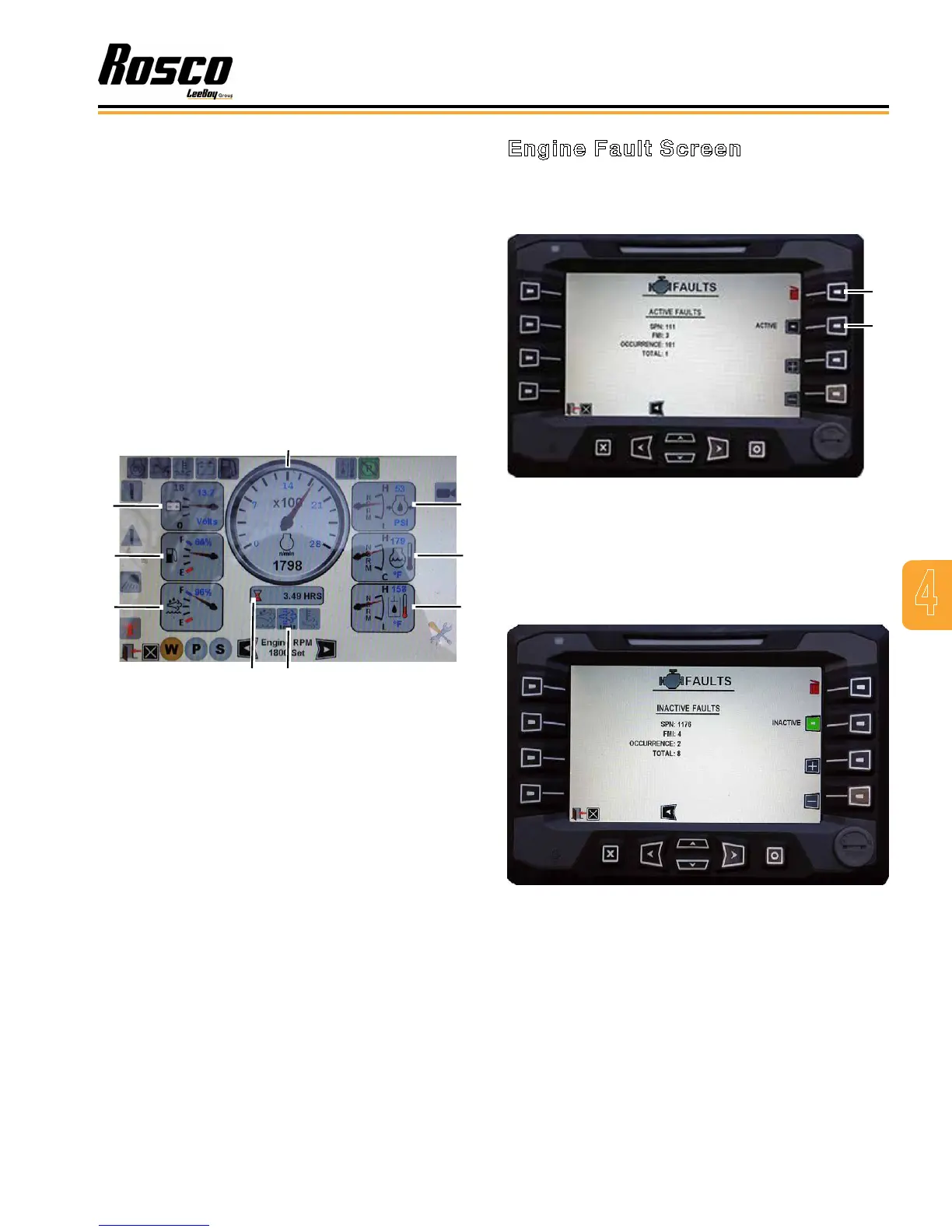

Figure 4-15. Engine Screen Status Information
1 - Tachometer
2 - Battery Charge Level
3 - Fuel Level
4 - DEF Fluid Level
5 - Engine Oil Pressure
6 - Engine Temperature
7 - Hydraulic Temperature
8 - Engine Hours
9 - DEF Regeneration Level
Engine Fault Screen
This screen informs the operator that an active problem
exists in the engine component function. (Figure 4-16)
(Refer to Page 5-33 for a complete list of fault codes.)
1
2
Figure 4-16. Active Engine Faults Screen
1 - Inactive Faults Delete
2 - Active/Inactive Faults Button
Press Button 2 to see a list of active faults. Press the
button again to see a list of inactive faults. (Figure 4-17)
Press Button 1 to delete inactive faults.
Figure 4-17. Inactive Engine Faults Screen
4
Operation
Rosco CSV Variable Width Chip Spreader 4-13
