LUBRICATION
Proper lubrication is very important for maintaining the
machine at top efciency. Lubrication points are shown
below. (Figure 5-1 and Table 5-2)
Use the following procedure for lubricating these
components:
1. Locate and clean the single grease tting at each of
the lubrication points. (Figure 5-1)
2. Apply one shot of grease to each tting with a
manual (hand) grease gun.
3. Wipe away any excess grease.

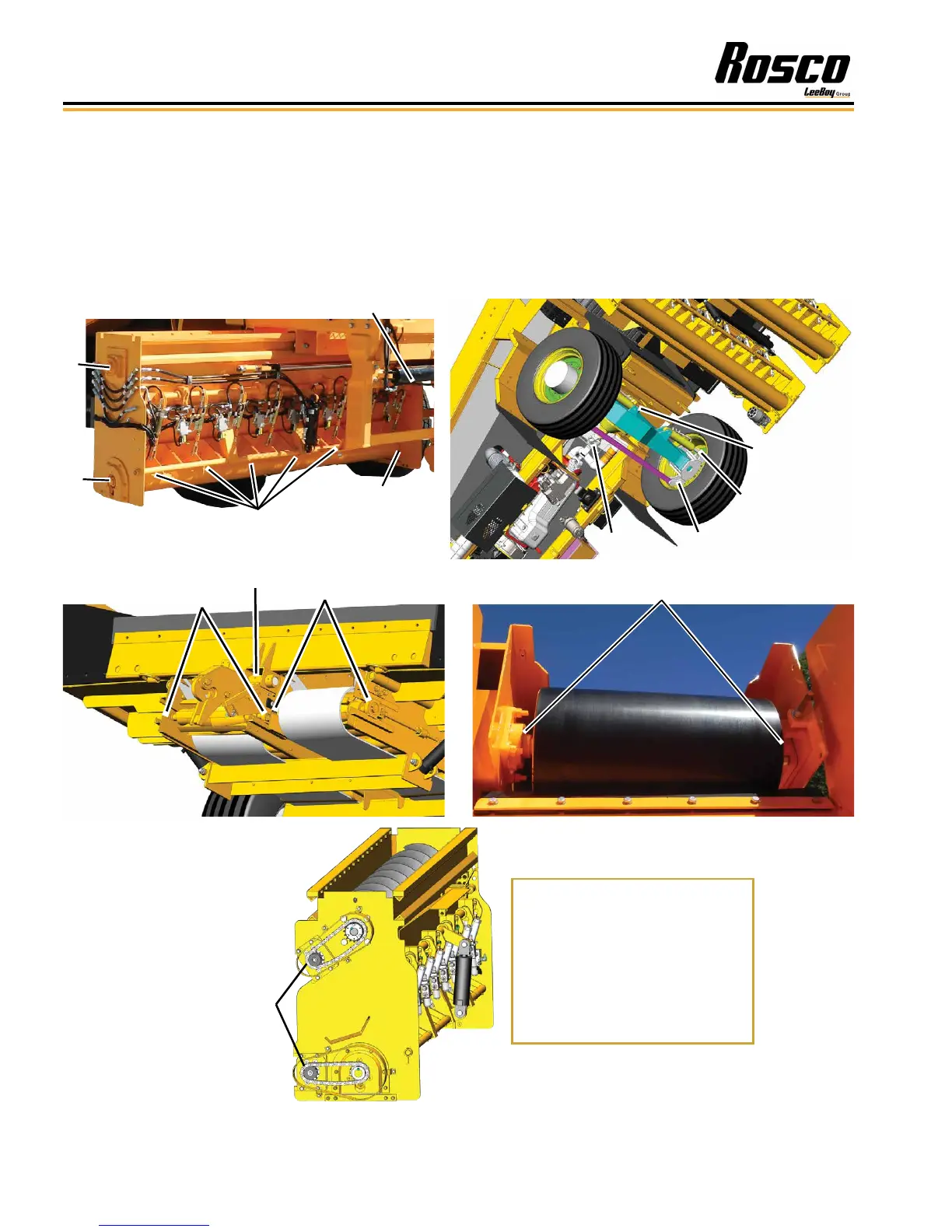

Figure 5-1. Lubrication Points
4 5
6
7
3
1
2
1
2
Front
Axle
9
9
8
10
Rear
Auger
Chain
Spreadroll
Chain
11
 Remove the 3 bolts
holding cover(s).
 Remove covers and grease
chains.
 Reinstall cover.
