Appendix A: Specifications and Reference Data
September 2015
178
Specifications and Reference Data
A.16 Dimensional drawings
A.16.1 3051SF dimensional drawings

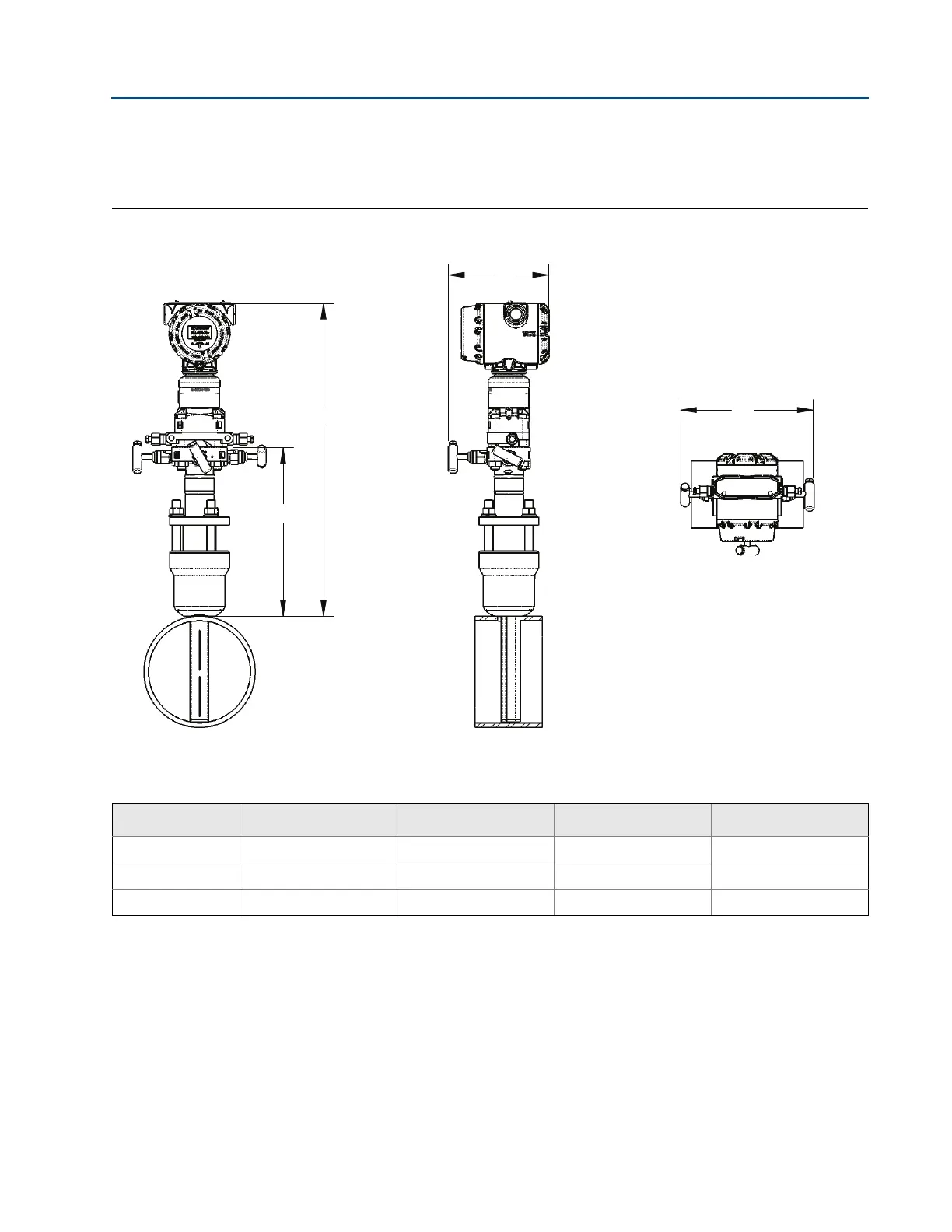

Figure 3. Rosemount 3051SFA Pak-Lok Annubar Flowmeter
(1)
Front view Side view Top view
1. The Pak-Lok Annubar model is rated equivalent to 600# ANSI (1440 psig at 100 °F [99 bar at 38 °C]).
Table 31. 3051SFA Pak-Lok Annubar Flowmeter Dimensional Data
Sensor size A (Max) B (Max) C (Max) D (Max)
1 8.50 (215.9) 16.03 (407.2) 9.00 (228.6) 6.90 (175.3)
2 11.00 (279.4) 17.78 (451.6) 9.00 (228.6) 6.90 (175.3)
3 12.00 (304.8) 20.53 (521.5) 9.00 (228.6) 6.90 (175.3)
Dimensions are in inches (millimeters).
A
B
D
C
