Installation
2.6.2 Flanged with opposite side support Annubar sensor type
(for 485 and 585 Annubar Flowmeters)

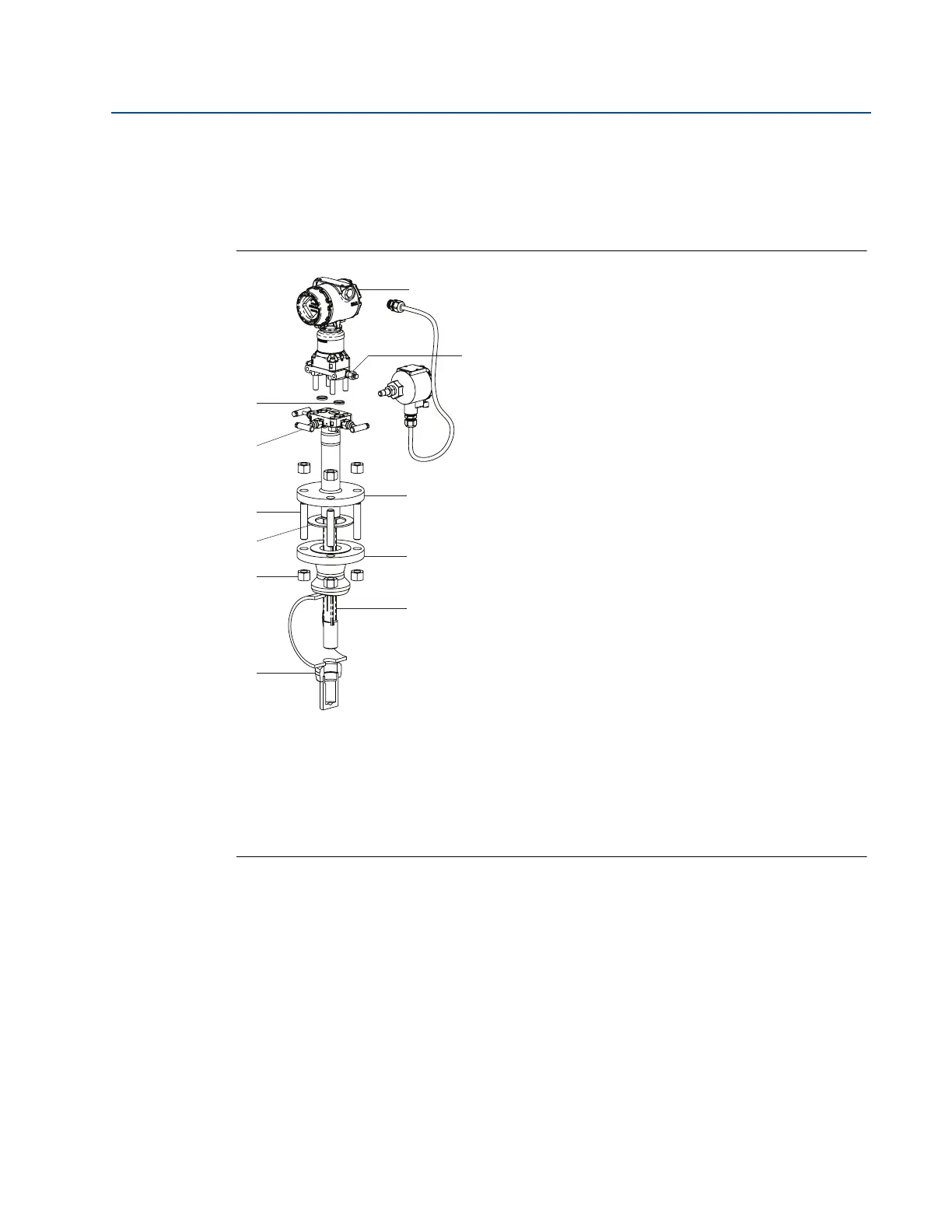

Figure 2-19 identifies the components of the Flanged assembly.
Figure 2-19. Components
Transmitter and housing are shown for clarity purposes – only supplied if ordered.
A. O-rings (2)
B. Direct mount transmitter connection with valves
C. Studs
D. Gasket
E. Nuts
F. Opposites side support
G. Transmitter
H. Coplanar flange with drain vents
I. Sensor flange
J. Mounting flange assembly
K. 485 Annubar sensor
A
B
C
D
E
F
G
H
I
J
K
