Appendix A: Specifications and Reference Data
September 2015
200
Specifications and Reference Data
A.16.4 485 dimensional drawings

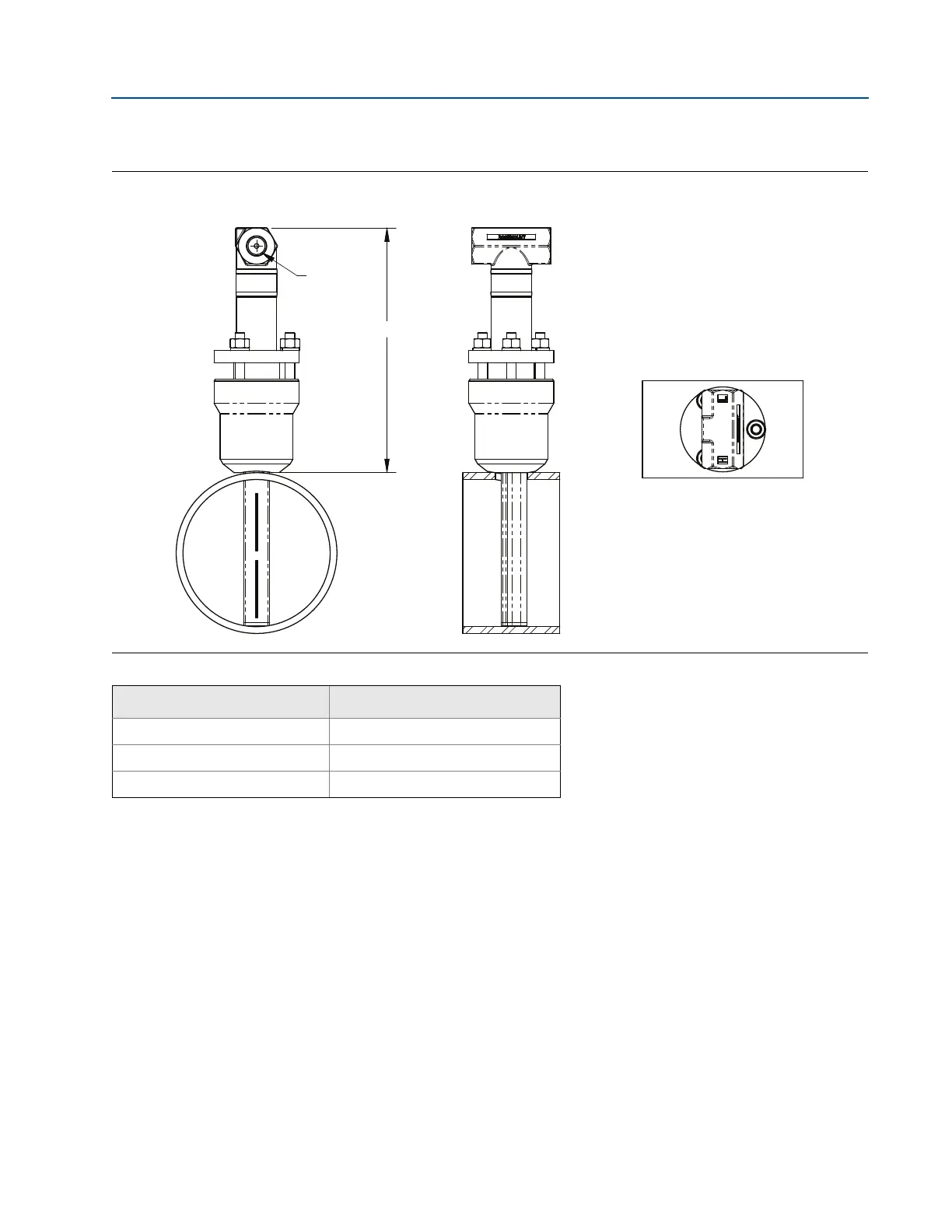

Figure 18. Pak-Lok 485 Annubar Primary Element
(1)
Front view Side view Top view
1. The Pak-Lok Annubar model is available up to 600# ANSI (1440 psig at 100 °F [99 bar at 38 °C]).
Table 46. Pak-Lok 485 Annubar Primary Element Dimensional Data
Sensor size A (Max)
1 8.50 (215.9)
2 11.00 (279.4)
3 12.00 (304.8)
Dimensions are in inches (millimeters).
A
-in. NPT
or SW
1
/
2
