Rosemount 3051SFC_A User Manual

Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
196
Specifications and Reference Data
A.16.3 2051CF dimensional drawings

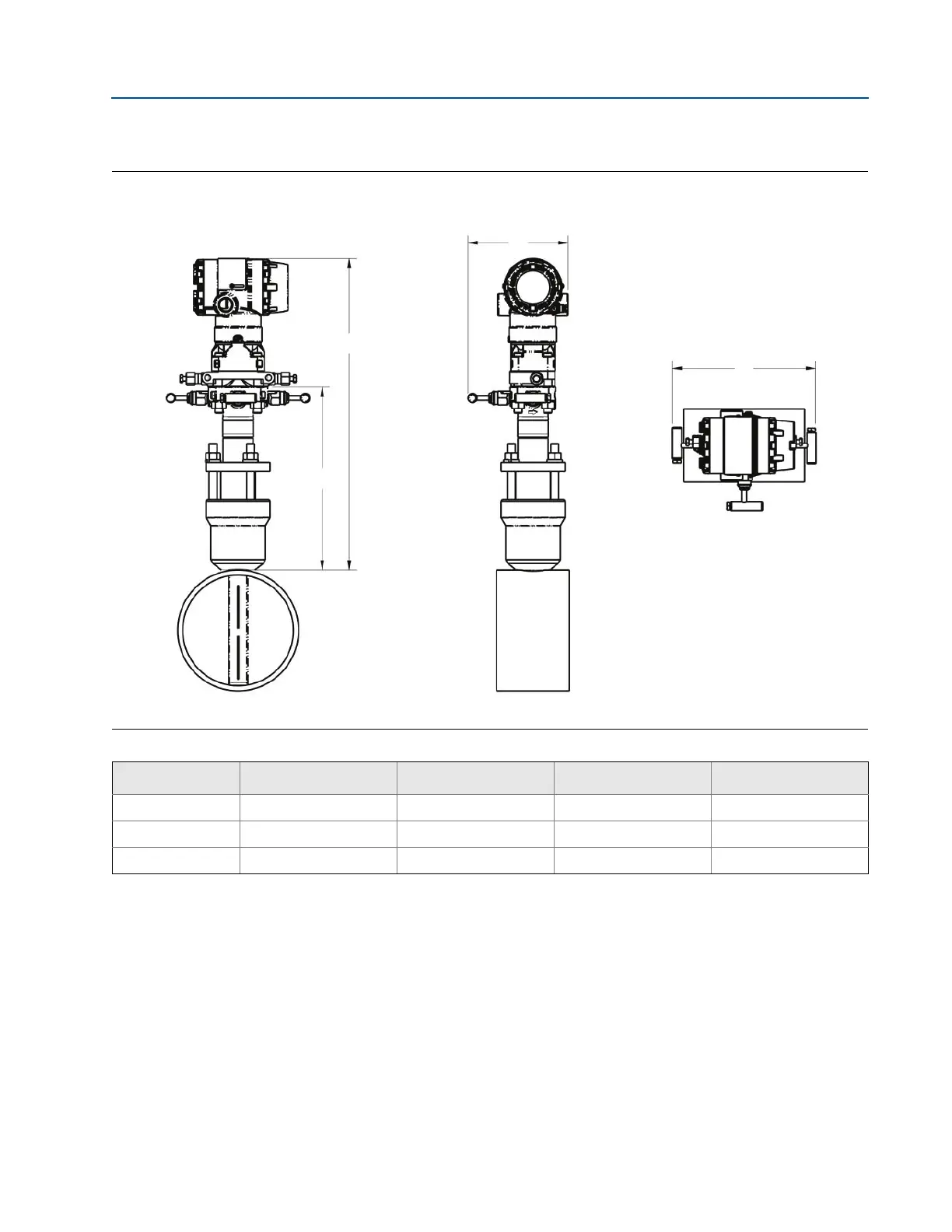

Figure 15. Rosemount 2051CFA Pak-Lok Annubar Flowmeter
(1)
Front view Side view Top view
1. The Pak-Lok Annubar model is available up to 600# ANSI (1440 psig at 100 °F [99 bar at 38 °C]).
Table 43. 2051CFA Pak-Lok Annubar Flowmeter Dimensional Data
Sensor size A (Max) B (Max) C (Max) D (Max)
1 8.50 (215.9) 14.55 (369.6) 9.00 (228.6) 6.00 (152.4)
2 11.00 (279.4) 16.30 (414.0) 9.00 (228.6) 6.00 (152.4)
3 12.00 (304.8) 19.05 (483.9) 9.00 (228.6) 6.00 (152.4)
Dimensions are in inches (millimeters).
A
B
D
C
