Appendix A: Specifications and Reference Data
September 2015
87
Appendix A Specifications and Reference
Data
3051SFA ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 87
3051SFC ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 100
3051SF specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 109
3051CFA ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 117
3051CFC ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 126
3051CF specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 132
2051CFA ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 136
2051CFC ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 143
2051CF specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 149
485 Annubar primary element ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 155
485 specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 161
585 Annubar primary element ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 165
585 specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 170
405 Compact primary element ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 173
405 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 176
Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . page 178

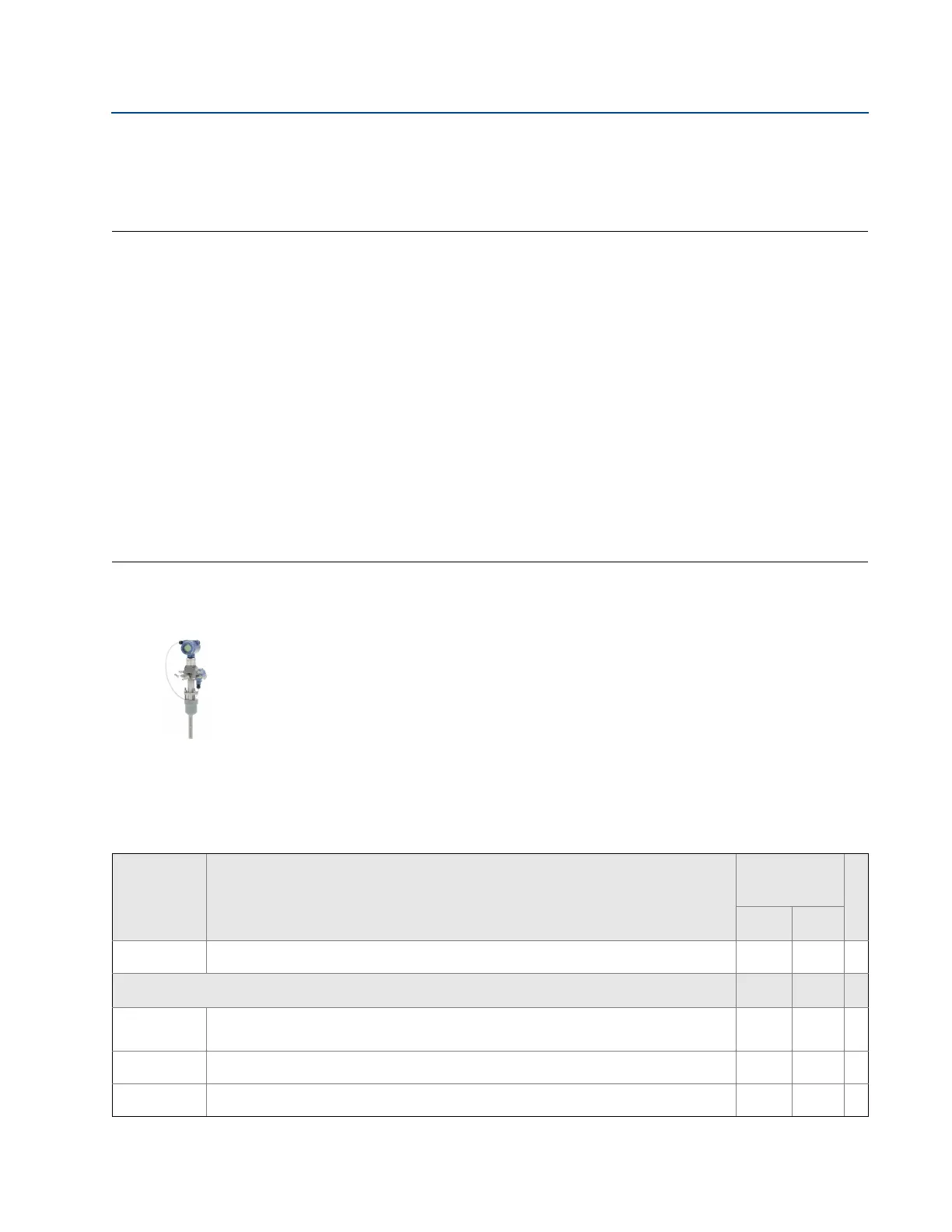

A.1 3051SFA ordering information
A.1.1 Rosemount
®
3051SFA Annubar
®
Flowmeter
 Annubar flowmeters reduce permanent pressure loss by creating less blockage in the pipe.
 Ideal for large line size installations when cost, size and weight of the flowmeter are concerns.
Table 1. Rosemount 3051SFA Annubar Flowmeter Ordering Information
★ The Standard offering represents the most common options. The starred options (★) should be selected for best delivery.
__The Expanded offering is subject to additional delivery lead time.
• = Available
— = Unavailable
Model Product description
Measurement
type
D 1-7
3051SFA Annubar Flowmeter • •
Measurement type
1
Fully Compensated Mass & Energy Flow Calculations – Differential & Static Pressures w/
Temperature
— • ★
2 Compensated Flow Calculations – Differential & Static Pressures — • ★
3 Compensated Flow Calculations – Differential Pressure & Temperature — • ★
