Rosemount 3051SFC_A User Manual

Reference Manual
00809-0100-4809, Rev DA
Appendix A: Specifications and Reference Data
September 2015
186
Specifications and Reference Data

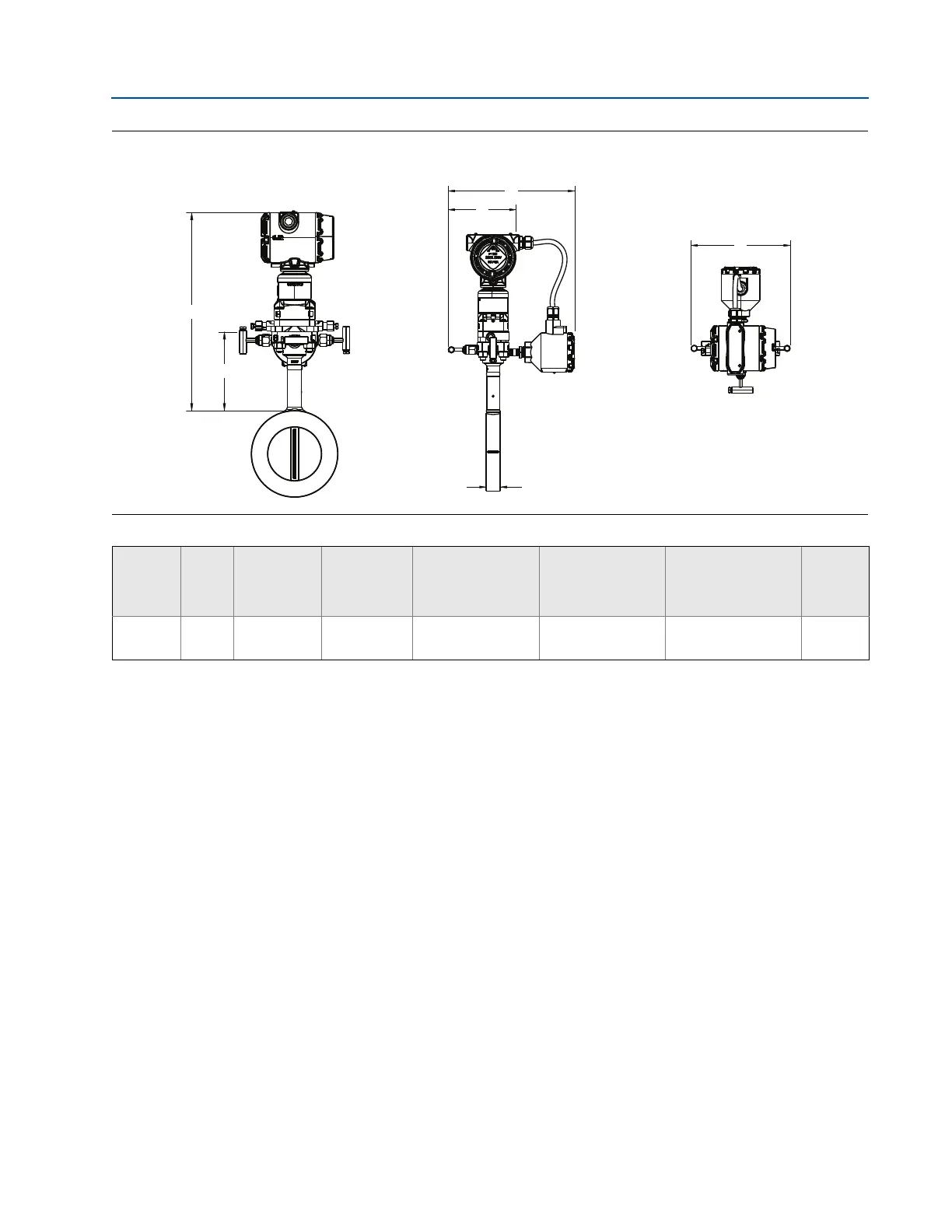

Figure 8. Rosemount 3051SFC Compact Flowmeter
Front view Side view Top view
Primary element type code A
Table 36. 3051SFC Compact Dimensional Data
Primary
element
type
A B
Transmitter
height
C D E F
A
5.62
(143)
Transmitter
Height + A
8.53 (217)
7.75 (197) - closed
8.25 (210) - open
6.00 (152) - closed
6.25 (159) - open
10.0 (254)- closed
10.25 (260.3)-open
N/A
Dimensions are in inches (millimeters).
B
A
E
D
1.125 (28.58)
C

Rosemount 3051SFC_A Specifications

General

Brand	Rosemount
Model	3051SFC_A
Category	Measuring Instruments
Language	English
