73
Reference Manual
00809-0100-4809, Rev DA
Section 3: Commissioning
September 2015
Commissioning
10. Close equalizer valve ME.
a. For 5-valve manifolds, first close valve MEH, then close valve MEL.
11. Replace plugs in tees, allowing for air gap at the top of each tee.
12. Slowly open primary instrument valves PH and PL. The system is now operational.
a. For 5-valve manifolds only: Open vent valve MV. If valve MV is leaking, valves MEH
and/or MEL are not fully closed or require repair. This must be done before taking
any readings. Close vent valve MV once verified.

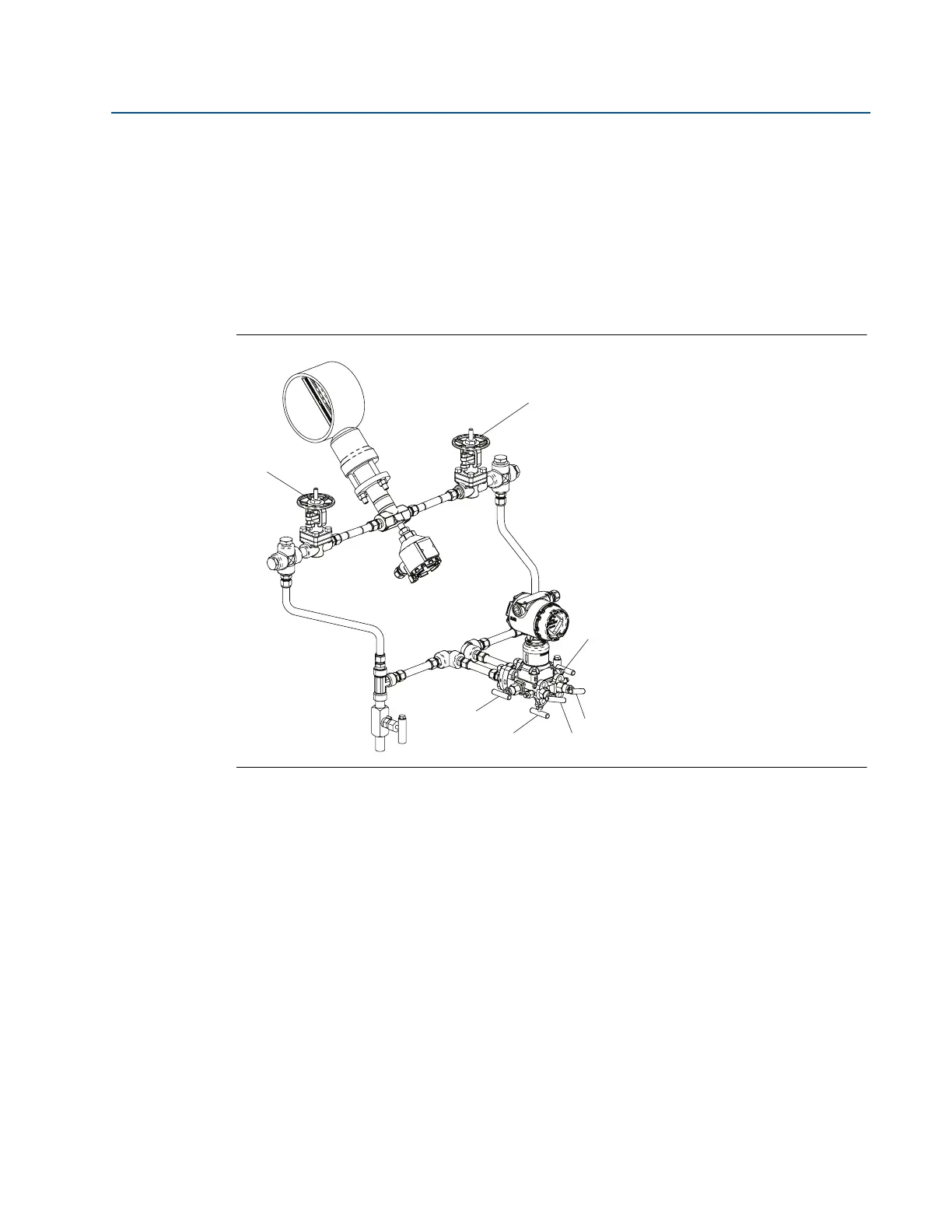

Figure 3-6. Remote Mount Steam Installation
Re-check zero post equilibrium
The following procedures assume the process pipe is pressurized to normal operating pressure
and should be followed to obtain a true zero at static or “pipe” pressure.
1. Close primary instrument valves, PH and PL.
2. Remove plugs on tee fittings.
3. Check transmitter zero by noting output. Perform zero trim procedure, if necessary.
4. Re-install plugs on tee fittings.
5. Open primary instrument valves, PH and PL.
PH
PL
ML
DVL
DVH
ME
MH
