Rotax 912 i series - Fuel Pumps; Check Valves; Fuel Injectors; Fuel Rail

BRP-Rotax
MAINTENANCE MANUAL LINE

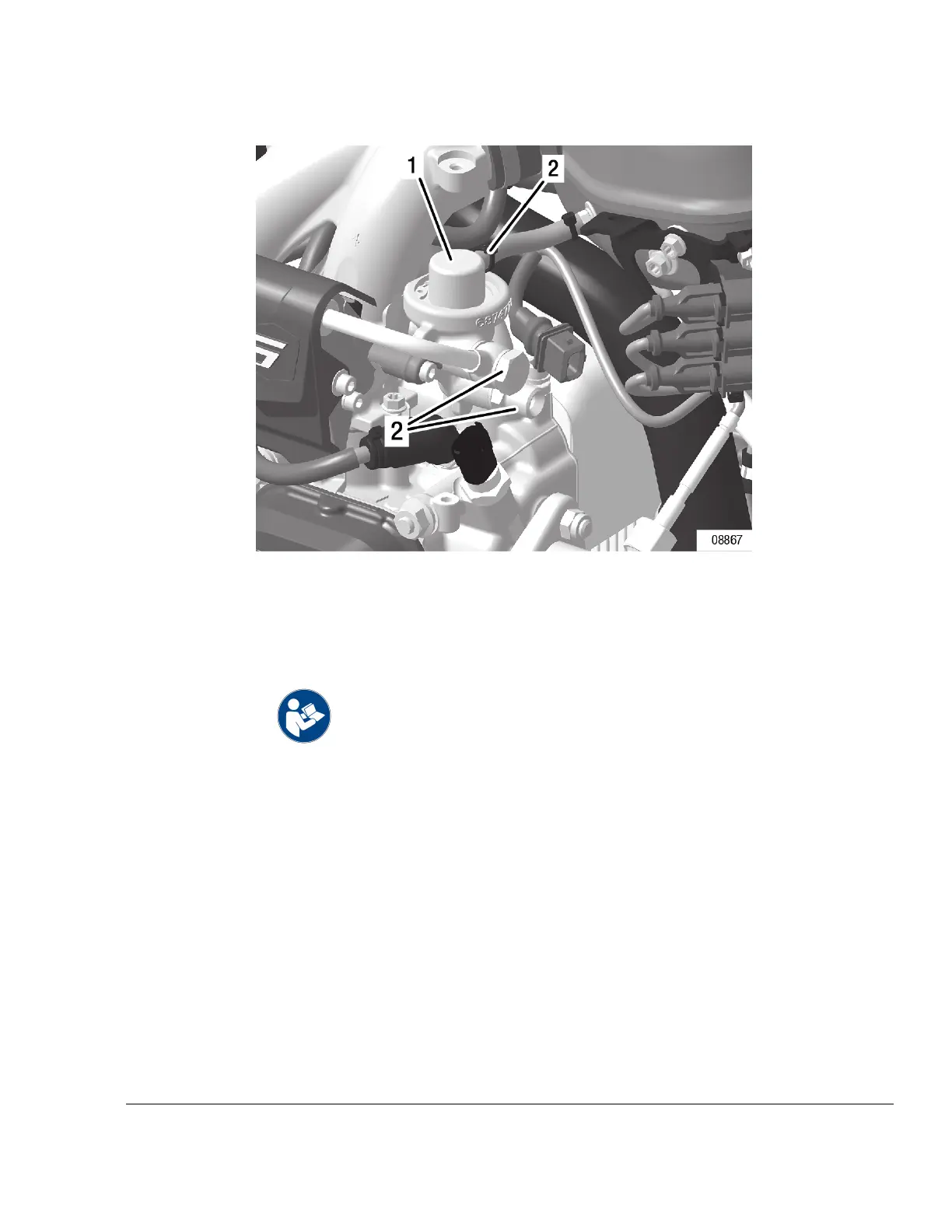

Figure 7.18: Fuel pressure regulator
1
Fuel pressure regulator
2 Reference hose connection
FUEL PUMPS
General note
Inspect the fuel pumps in accordance with the manufacturers instructions
or the aircraft manufacturers.
• Remove the housing
• Visual inspection of lines and connections
CHECK VALVES
General note Check for leaks.
FUEL INJECTORS
General note Check for leaks.
FUEL RAIL
General note Check for leaks.
Effectivity: 912 i Series
Edition 2/Rev. 0
12–20–00
Page 31
September 01/2018
