MAINTENANCE MANUAL LINE
CHECKING THE V-BELT TENSION
General note In the case of configurations with additional auxiliary generator, inspect attachment and V-
belt tension.
Checking the V-
belt tension

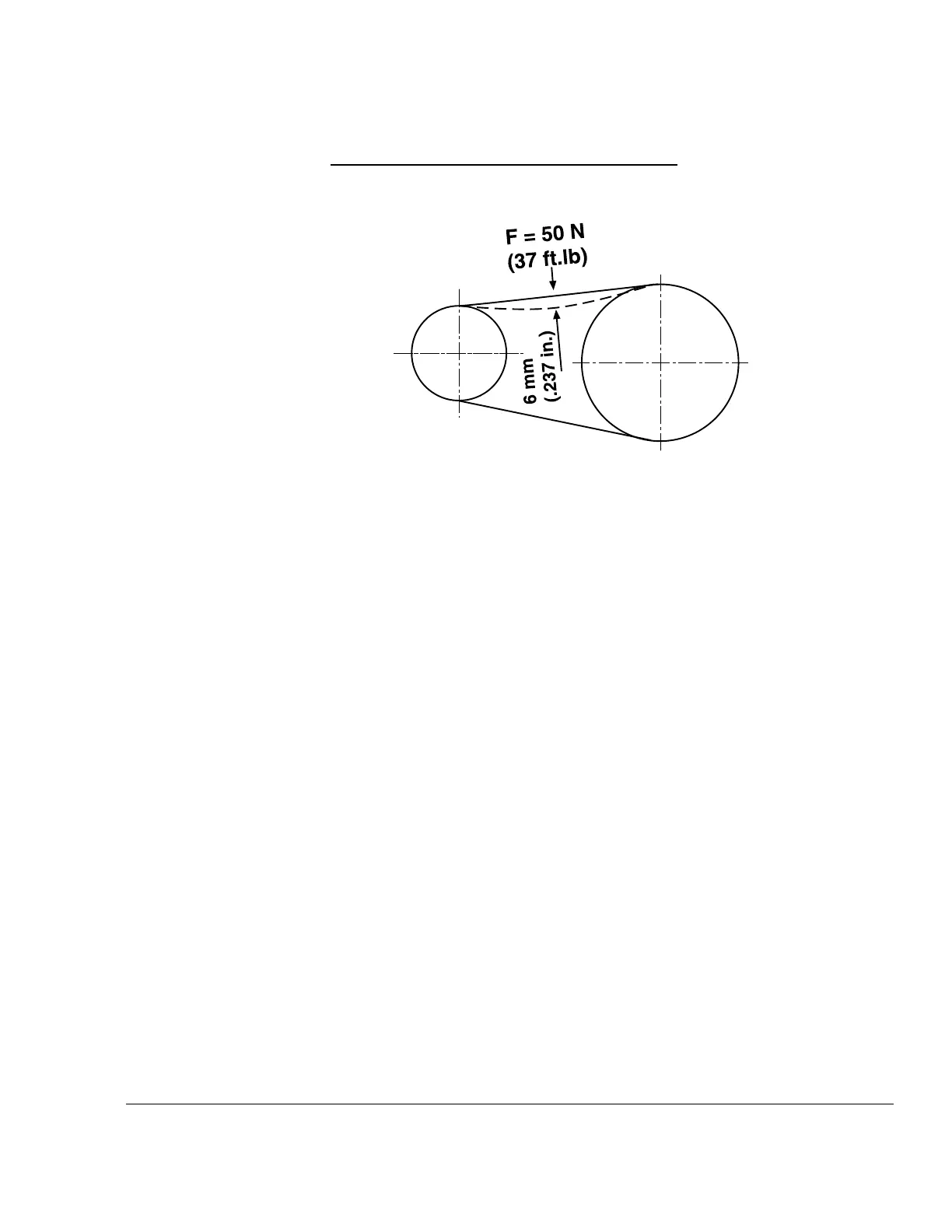

Figure 7.7: Checking the V-belt tension
Effectivity: 912 i Series
Edition 2/Rev. 0
12–20–00
Page 17
September 01/2018
