BRP-Rotax
MAINTENANCE MANUAL LINE

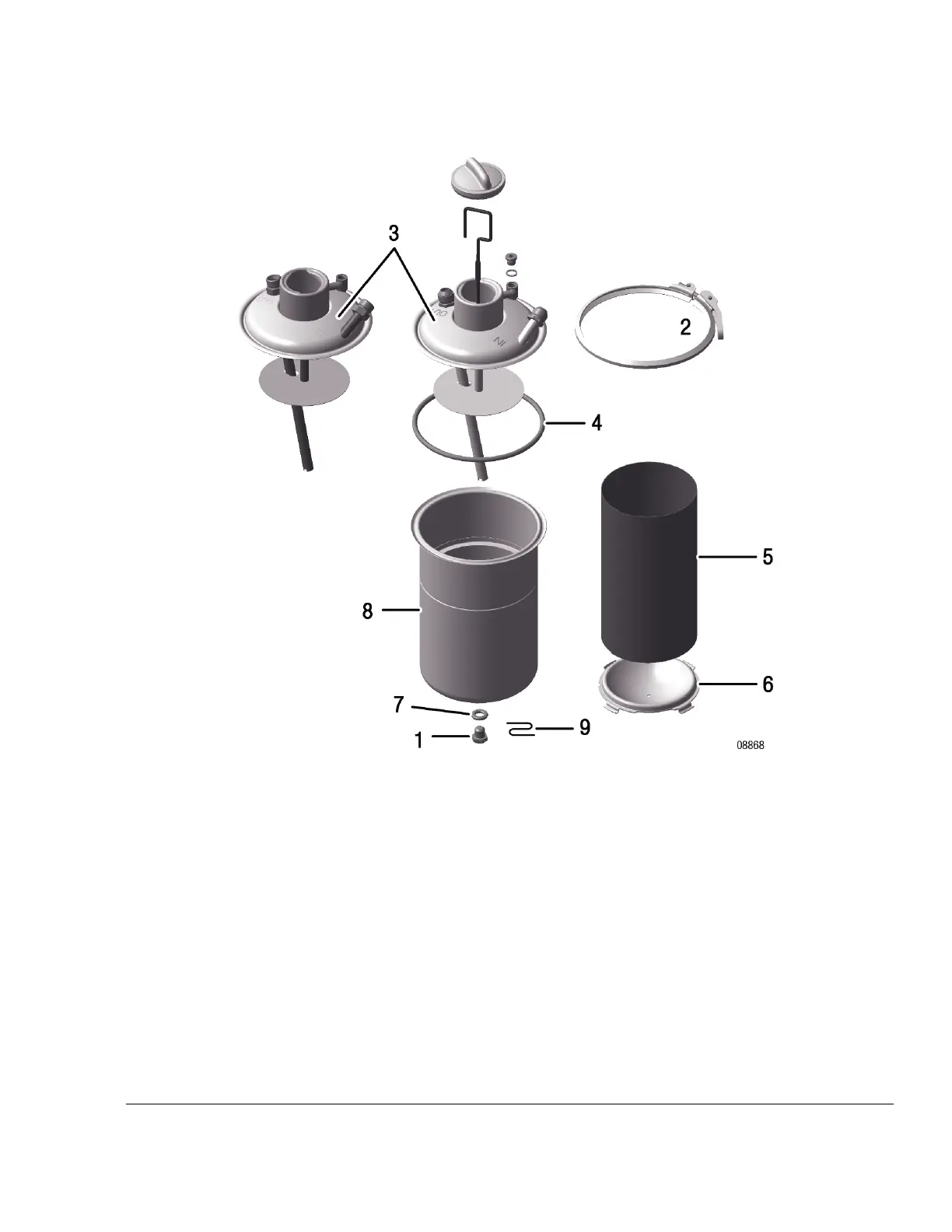

Figure 7.24: Oil tank
1 Hex. screw M12x12 2
Profile clamp
3
Oil tank cover assy. Metric/ AN
4
O-ring
5 Baffle insert 6 Partition
7
Gasket ring 12x18
8 Oil tank
9
Safety wire
Effectivity: 912 i Series
Edition 2/Rev. 0
12–20–00
Page 41
September 01/2018
