Rotax 912 Series Service Manual

Effectivity 914 Series
Edition 1 / Rev. 0
page 51
May 01/2007
d02623
73-00-00
BRP-Rotax
Maintenance Manual
200 mm
(7.88 in.)
310 mm
(12.6 in.)
110 mm (4.34 in.)
40 mm (1.57 in.)
75 mm
(82.95 in.)
130 mm
(5.12 in.)
*
*
00048

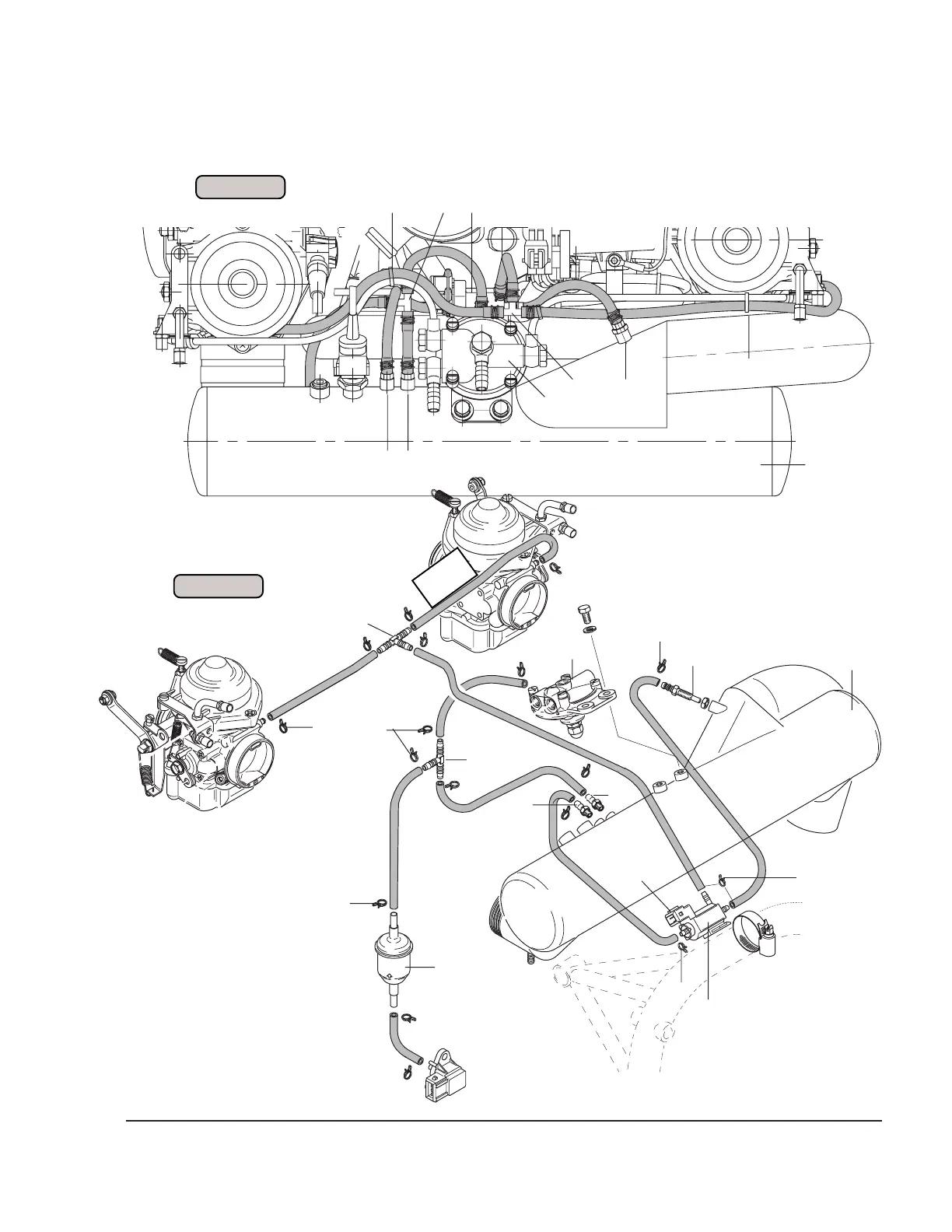

Fig. 73-42
00049
* Length of tubes depending on
installation conditions
Fig. 73-43
2
3
10
4
7
13
1
9
11
12
6
7
8
9
10
1
2
3
4
6
13
11
11
11
5
12
130 mm
(5.12 in.)

Rotax 912 Series Specifications

General

Redline	5800 rpm
TBO	2000 hours
Displacement	1211 cc
Bore	79.5 mm
Stroke	61 mm
Power Output	80 hp (59.6 kW)
Compression Ratio	9.0:1
Fuel Type	Avgas 100LL
Ignition System	Dual electronic ignition
Fuel System	Fuel Injected
Oil System	Dry sump
Engine Type	4-cylinder, horizontally opposed, 4-stroke
