Effectivity 914 Series
Edition 1 / Rev. 0
76-00-00
page 47
May 01/2007
d02626
BRP-Rotax
Maintenance Manual
Test set-up
Connect pin (4) to ground and connect pin (5) to positive side
of voltage supply Us. Apply test pressure to sensor (input 6)
Take reading of output voltage between pin (4) and pin (3).
Divide the measured output voltage (Ua) by the supply voltage
(Us).
â—† NOTE: Calculation of this pressure ratio is required
since the diagram is effective over a whole
voltage range and not just for a single voltage.

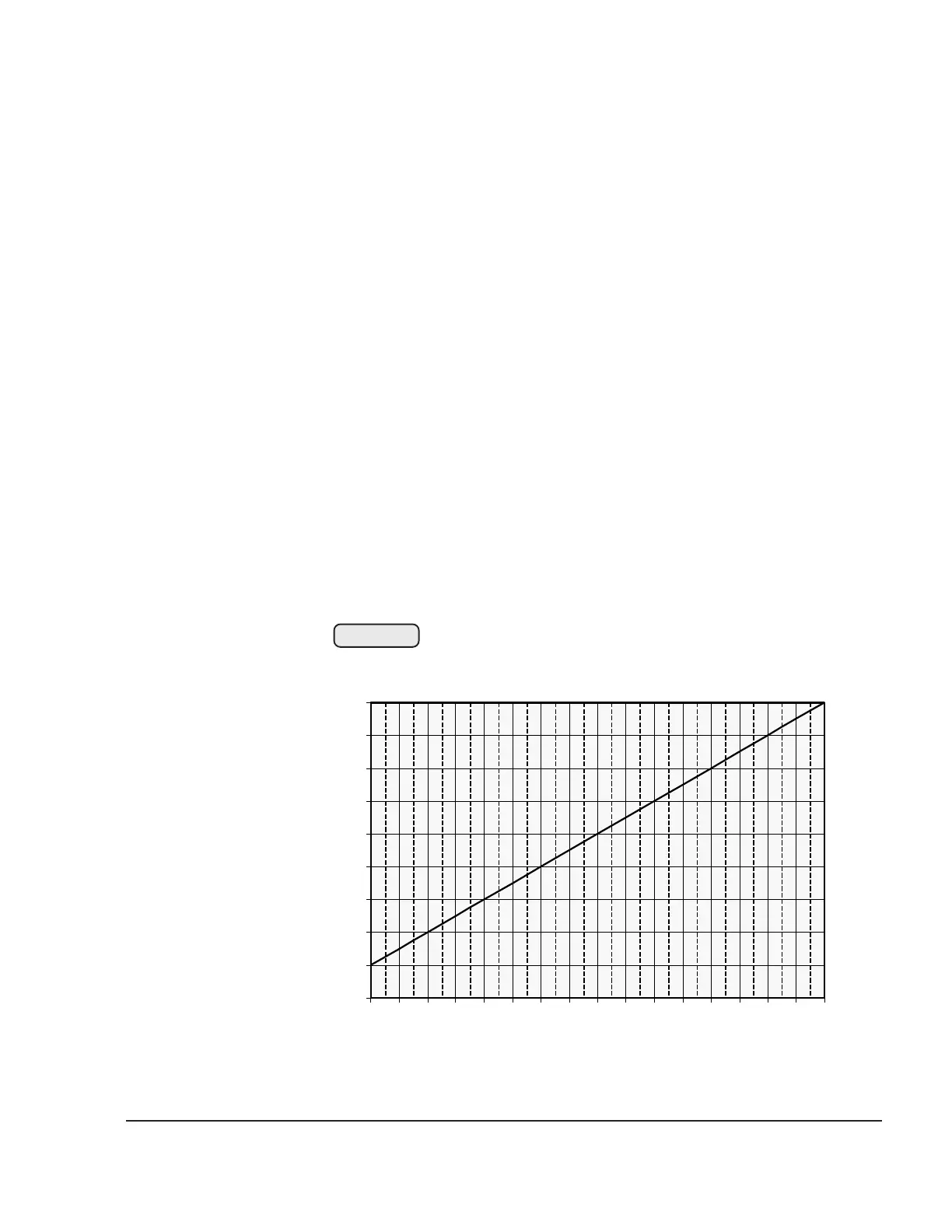

Enter this value in the table Ua/Us. A pressure can be read off
at the intersection of the straight lines.
Max. deviation ± 40 hPa
â–  CAUTION: In the event of physical damage or resistance
readings outside allowance, replace the part
without delay.
0,0
0,1
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
500
625
750
875
1000
1125
1250
1375
1500
1625
1750
1875
2000
2125
2250
2375
2500
Druck [hPa] absolut
pressure absolute
Ua/Us
00442
Fig. 76-45
