Rotax 914 series Maintenance Manual

Effectivity 914 Series
Edition 1 / Rev. 0
page 51
May 01/2007
d02623
73-00-00
BRP-Rotax
Maintenance Manual
200 mm
(7.88 in.)
310 mm
(12.6 in.)
110 mm (4.34 in.)
40 mm (1.57 in.)
75 mm
(82.95 in.)
130 mm
(5.12 in.)
*
*
00048

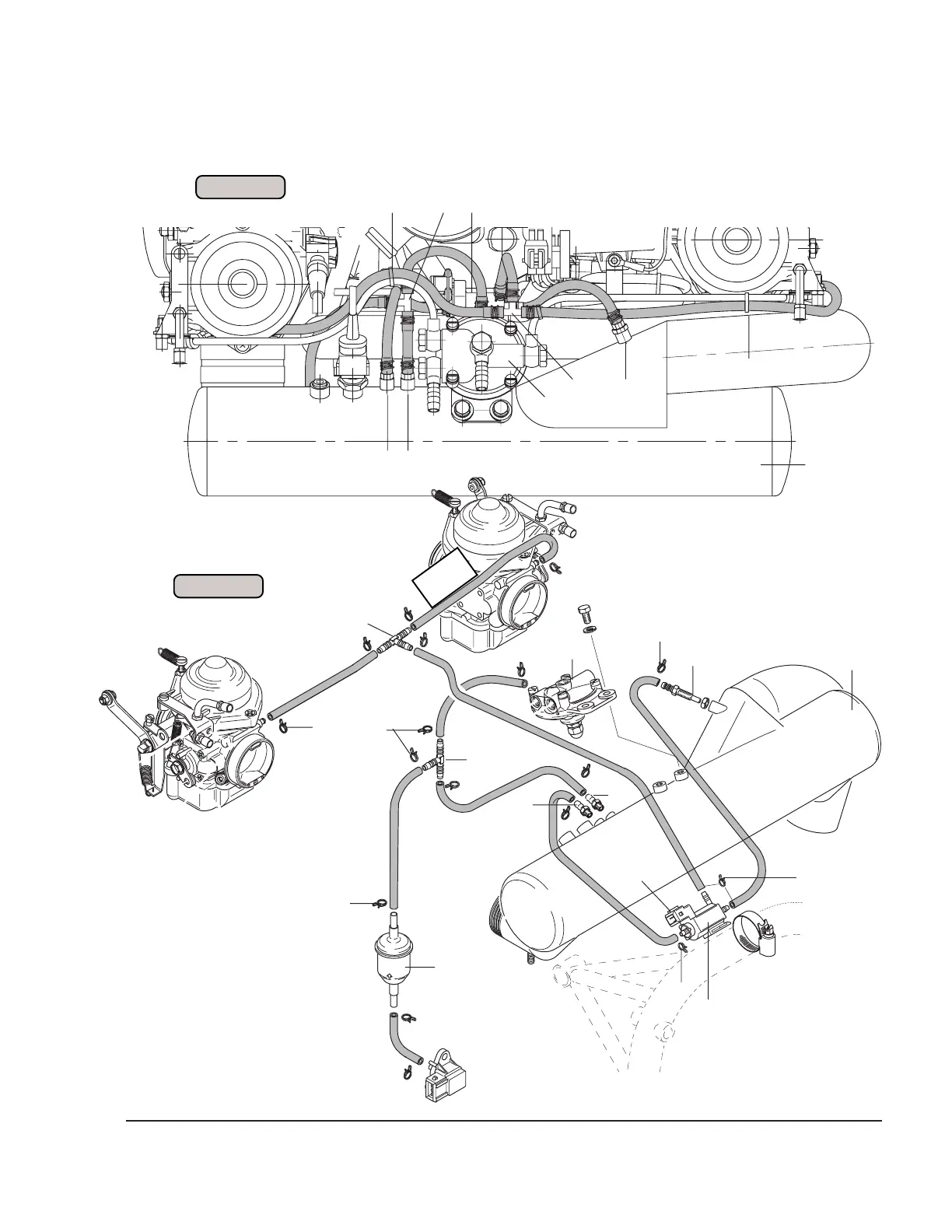

Fig. 73-42
00049
* Length of tubes depending on
installation conditions
Fig. 73-43
2
3
10
4
7
13
1
9
11
12
6
7
8
9
10
1
2
3
4
6
13
11
11
11
5
12
130 mm
(5.12 in.)

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
