Rotax 914 series Maintenance Manual

76-00-00
page 40
May 01/2007
Effectivity 914 Series
Edition 1 / Rev. 0
d02626
BRP-Rotax
Maintenance Manual
Resistance between the connections (6) and (7):
Throttle valve closed
(throttle lever pos. 0%): 3.4 to 4.6 kΩ
Throttle valve open
(throttle lever pos. 115%): 0.8 to 2.0 kΩ

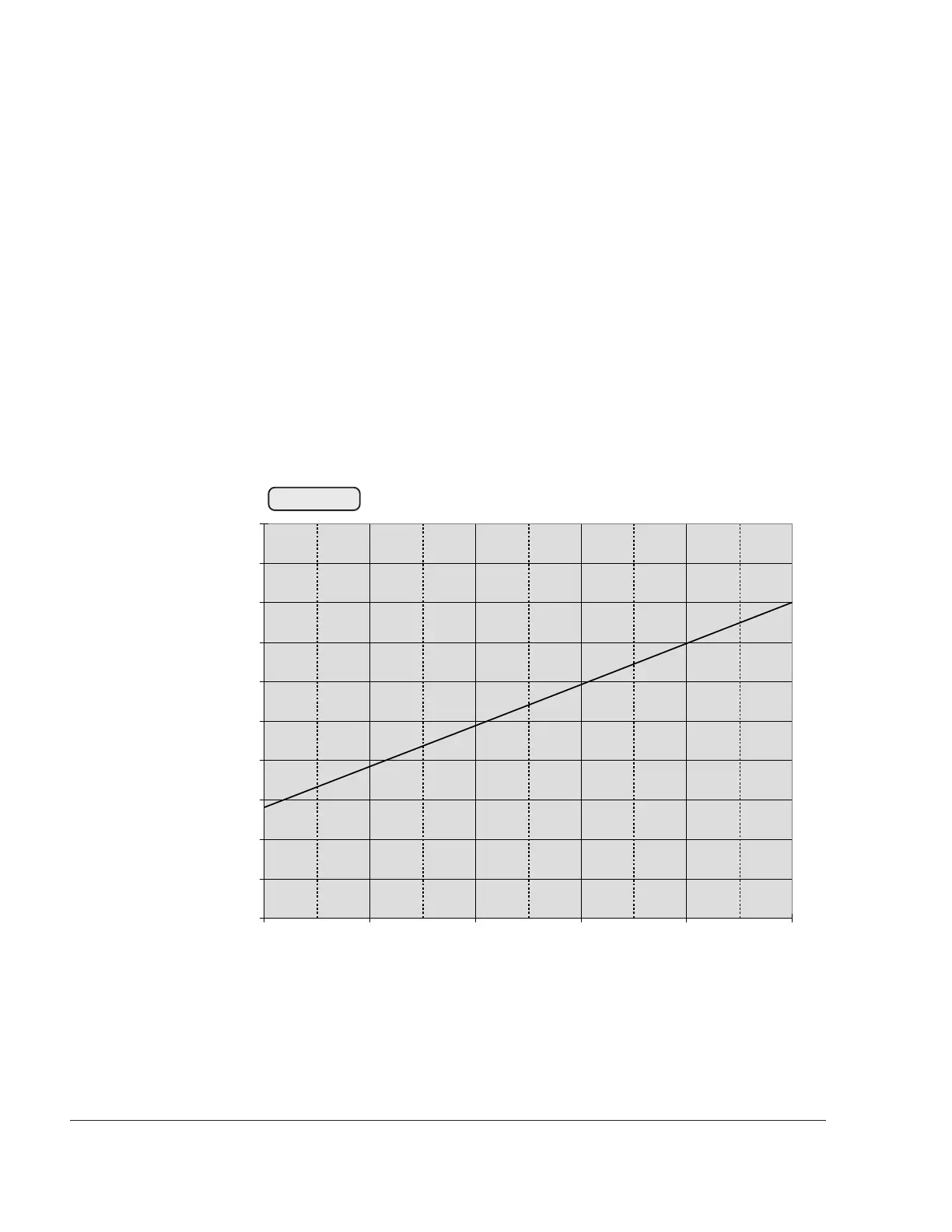

◆ NOTE: Check complete operating range as shown in
the following diagram (Fig. 76-38) for linear
resistance progress.
0
0,5
1
1,5
2
2,5
3
3,5
4
4,5
5
open
00221
closed
resistance (kΩ)
throttle position
Fig. 76-38

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
