Rotax 914 series Maintenance Manual

Effectivity 914 Series
Edition 1 / Rev. 0
76-00-00
page 41
May 01/2007
d02626
BRP-Rotax
Maintenance Manual
Resistance between the connections (5) and (6):
Throttle valve open
(throttle lever pos. 115%): 2.4 to 3.2 kΩ
Throttle valve closed
(throttle lever pos. 0%): 100 to 300 Ω

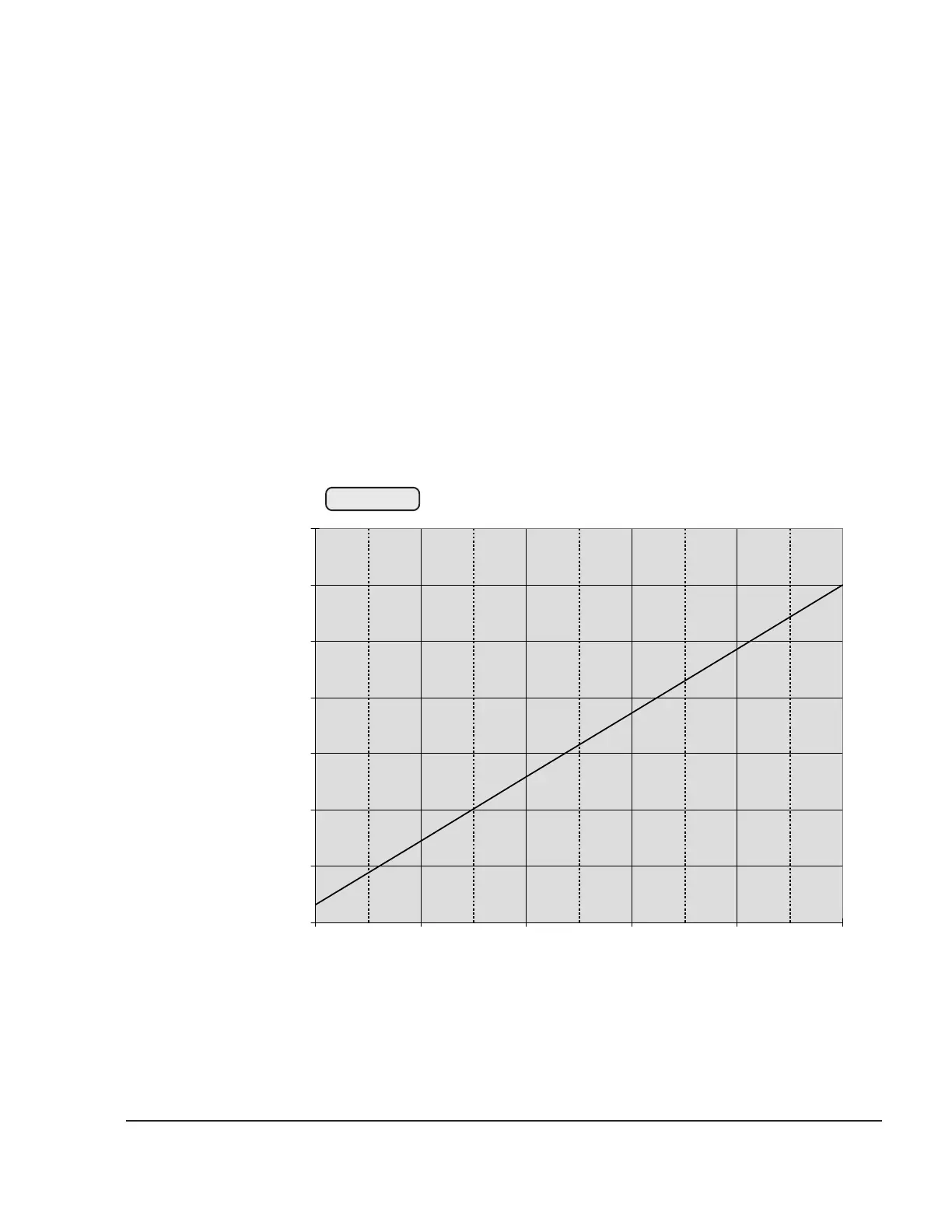

◆ NOTE: Check complete operating range as shown in
the following diagram (Fig. 76-39) for linear
resistance progress.
■ CAUTION: In the event of physical damage or resistance
readings outside allowance, replace the part
without delay.
0
0,5
1
1,5
2
2,5
3
3,5
00222
openclosed
resistance (kΩ)
throttle position
Fig. 76-39

Rotax 914 series Specifications

General

Bore	79.5 mm
Stroke	61 mm
Compression Ratio	9.0:1
Cooling System	Liquid-cooled cylinder heads, air-cooled cylinders
Redline	5800 rpm
Engine Type	4-cylinder, 4-stroke
Fuel Type	Avgas 100LL
Oil System	Dry sump
Fuel System	fuel injection
TBO (Time Between Overhauls)	2000 hours
Displacement	1.211 liters (1211 cc)
Power Output	84.6 kW (115 hp) at 5, 800 rpm
