■ CAUTION: New dimension (max) B is always the dimension which is
closest to wear limit C.

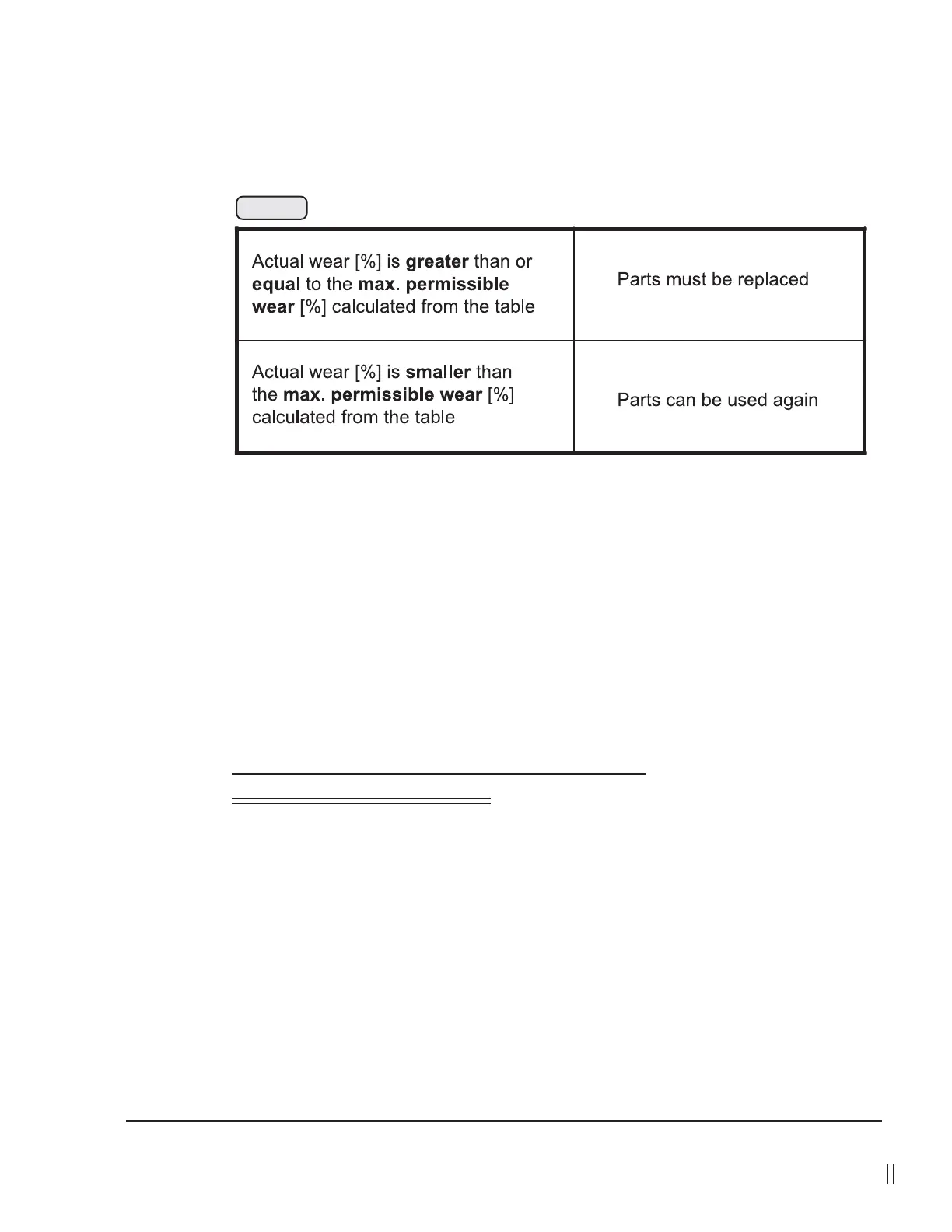

Procedure for classification of “On Condition Parts” at maintenance/
repair:
◆ NOTE: A negative result means that the actual dimension F is within the
new dimension tolerance D.
Example for engines of Series 914:
Hours of operation indicated 300 h.
The determined percentage of maximum permissible wear calculated is 46.6 %.
New dimension (max) B = 28.03 mm (1.1035 in.)
Wear limit C = 28.10 mm (1.1062 in.)
Actual dimension F = 28.07 mm (1.1051 in.)
Actual wear 57.1 %
▲ WARNING: The part must be replaced (i.e. this part is excessively worn
for only 300 hours of operation).
07564
Fig. 00-7
