13.2 Immersion sensor KVT
Types: KVT 20/2/6 cable length 2 m
Application:
Boiler sensor, hot water sensor (for boiler integrated hot water tanks), return flow
sensor
KVT 20/5/6 cable length 5 m
Application:
Hot water sensor (for add-on tanks, buffer tanks, solar collector return flow sensor
etc.
Mounting location: In the immersion sleeve of the respective application.
Mounting into boilers or other heat sources
Bend clutch spring to sensor top and insert sensor together with the capillary sensors
of boiler thermostat (KTR), safety temperature limiter (SLT) and boiler thermometer
(KTA) into the immersion sleeve. Use spring clip if necessary.
Mounting into hot water or buffer tanks
Bend clutch spring to sensor top and insert sensor according to the instructions of
the manufacturer into the dry immersion sleeve of the respective hot water tank.
Terminal assignment
Connect sensors at the corresponding terminals of the respective control unit (see
terminal diagram). The terminals may be changed.

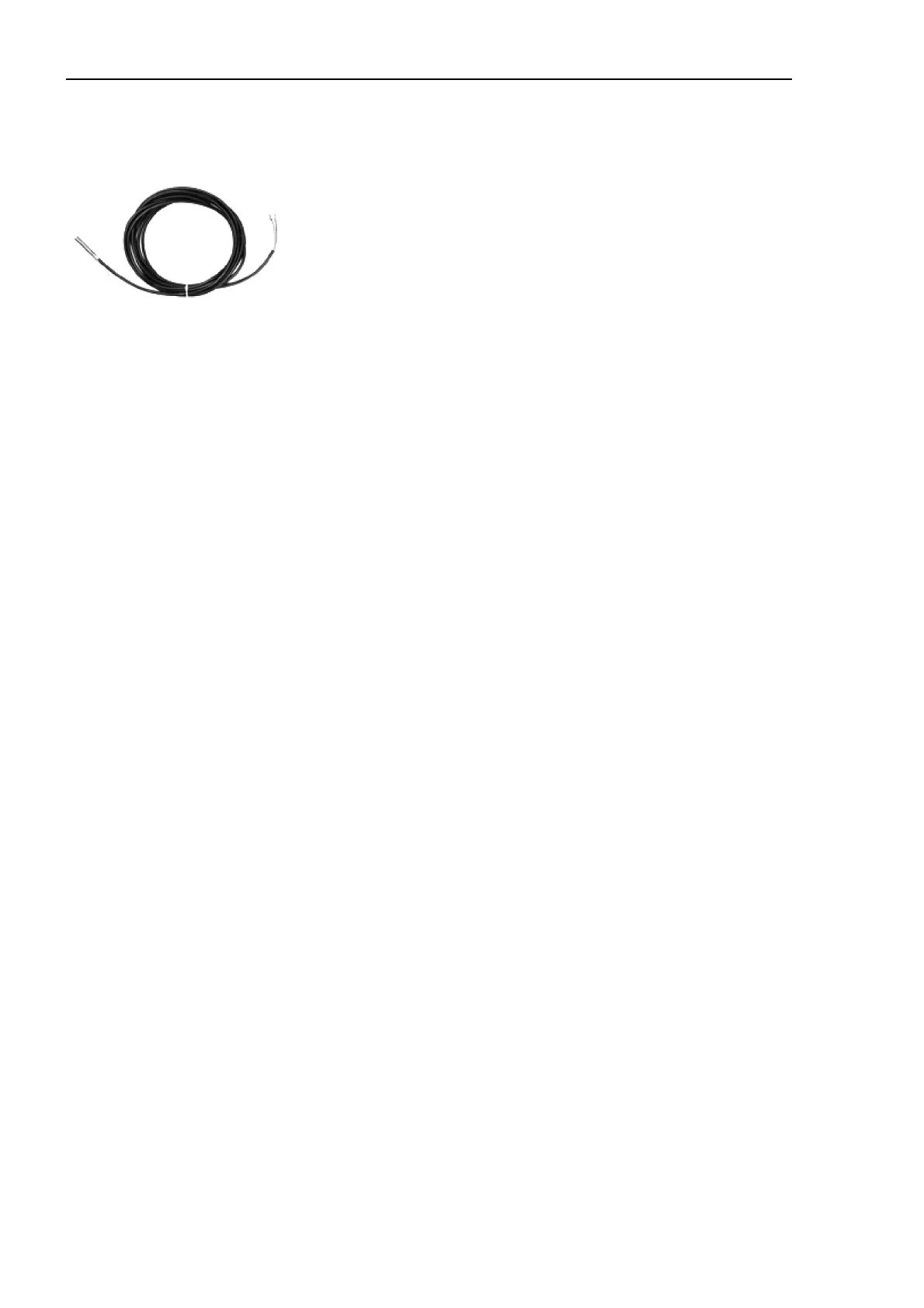

Immersion sensor KVT 20...
