Rotex Controller Series User Manual

EbV Product documentation THETA NORM/UNIT
13-4
13.4 Flue gas sensor / solar panel flow sensor
Types: PT1000/6 cable length 2.5 m
Application: Flue gas temperature
Collector flow temperature
Mounting location: - In the flue gas tube in the minimum distance of the double tube diameter
- In the immersion sleeve of the solar collector.

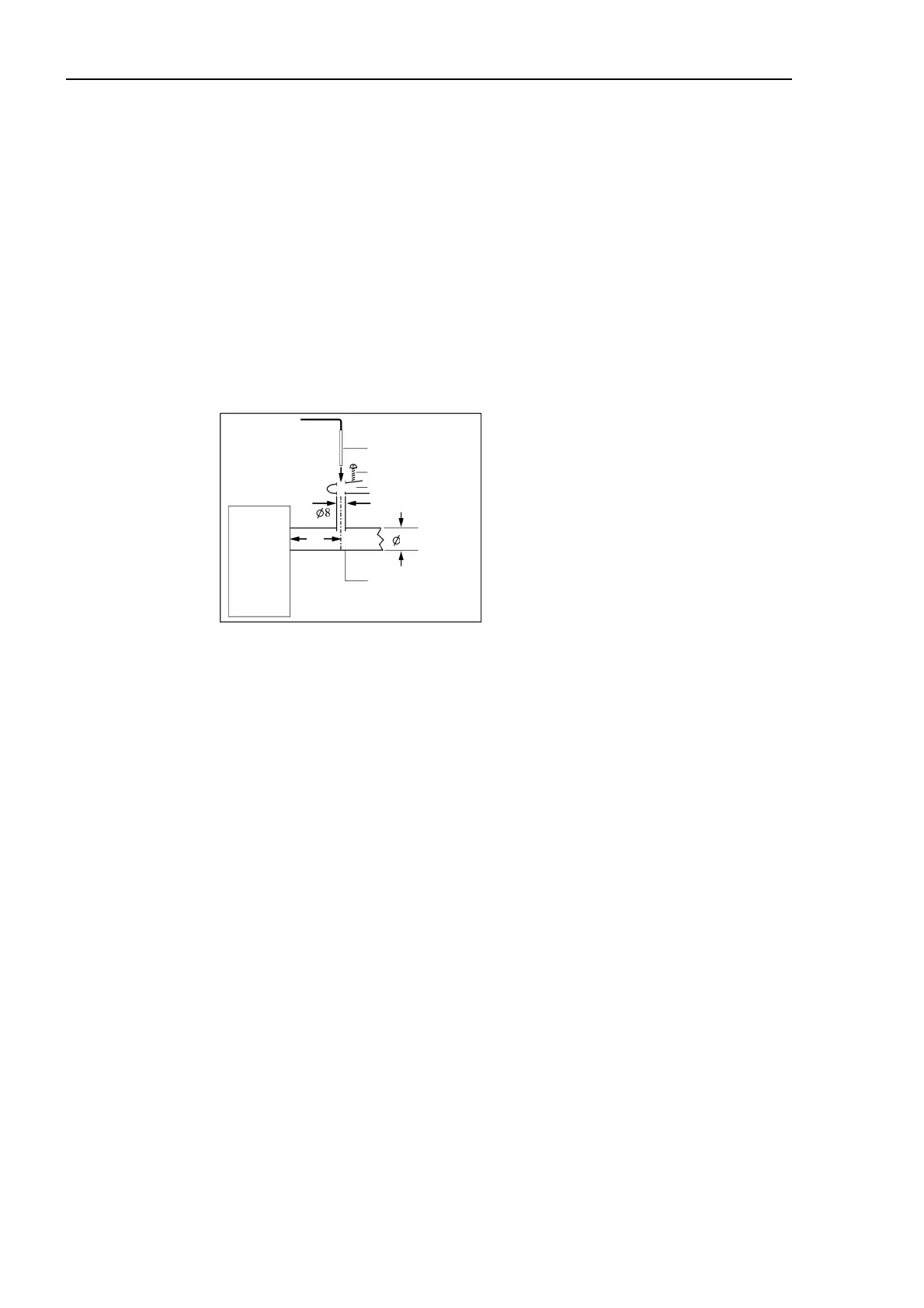

Mounting in the
flue gas tube: Mount sensor clamp according to illustration below. Determine immersion depth into
the core flow of the flue gas and fix sensor.
Terminal assignment:
Connect sensors at the corresponding terminals of the respective control unit (see
terminal diagram). The terminals may be changed.
Boiler
Flue gas tube
2D
D
Flue gas sensor
Fixing screw
Sensor clamp
