Hardware overview
Explanation on the hardware overview chapter
Explanation on the hardware overview chapter
The hardware overviews on the following pages are recommendations of
Roto Frank AG.

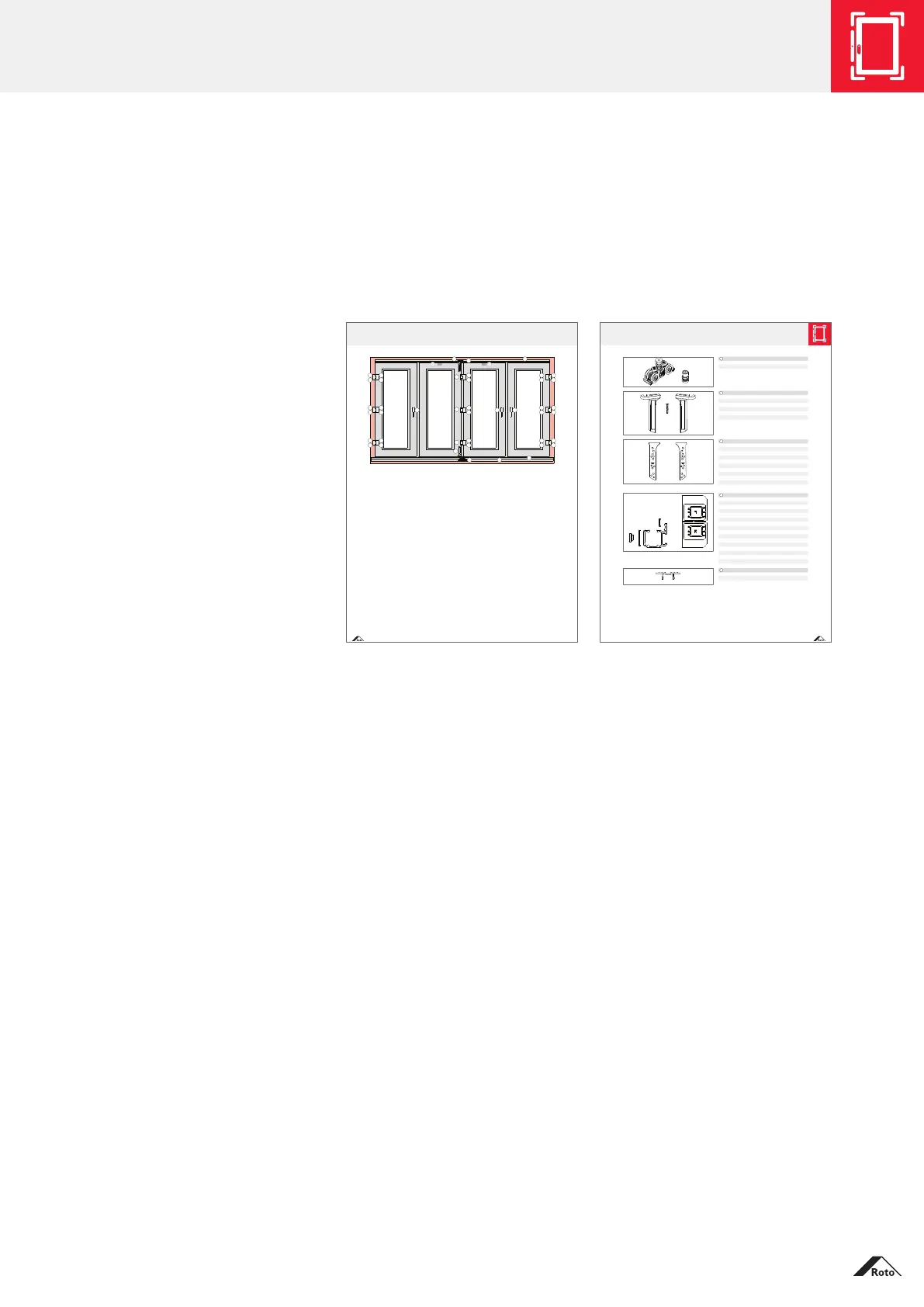

The hardware overview chapter shows on the left page the single hardware
components of the opening type in the overview and on the right page the
respective parts list. Position numbers allow the allocation between over-
view and parts list.
28  April 2015  IMO_374_EN_v0 Roto Patio Fold Subject to change.
Hardware overview
Version standard roller track
11
1
1
2
2
3
4
5
77
77
77 8 8 8
8 8 8
8 8 8
66
66
66 10 10 10
10 10 10
10 10 10
9
9
9
1111
1212
The parts list includes all profile related versions of the Roto Patio Fold hard-
ware system as well as of the enhanced threshold Roto Fold. Technical
details , special groove and clearance version information available upon
request .
The actual scope of delivery depends on the ordered hardware con-
figuration (height and width of the window). Handles have to be ordered
separately.
Subject to change. Roto Patio Fold IMO_374_EN_v0  April 2015  29
Hardware overview
Parts list standard roller track
1
Bogie set
Description PQ Material no.
Bogie and guide roller 1 642422
8x
2
Support bracket incl. accessories
Version Colour PQ Material no.
with pin 30mm White R07.2 1 739802
Medium bronze R05.3 1 739803
EV1 R01.1 1 739804
Black brown R04.4 1 739895
Unpainted unc. 1 739896
2a
Packer for support bracket
Height Colour PQ Material no.
3mm White R07.2 1 643351
Medium bronze R05.3 1 643352
EV1 R01.1 1 643353
Black brown R04.4 1 739897
Unpainted unc. 1 643354
6mm White R07.2 1 737260
Medium bronze R05.3 1 737261
EV1 R01.1 1 737262
Black brown R04.4 1 739898
Unpainted unc. 1 737263
8x
3
Roller track incl. accessories
Length Colour PQ Material no.
3000mm White R07.2 1 642436
Medium bronze R05.3 1 642440
EV1 Silver R01.1 1 642444
Black brown R04.4 1 738945
4000mm White R07.2 1 642437
Medium bronze R05.3 1 642441
EV1 Silver R01.1 1 642445
Black brown R04.4 1 738955
5000mm White R07.2 1 642438
Medium bronze R05.3 1 642442
EV1 Silver R01.1 1 642446
Black brown R04.4 1 765177
6000mm White R07.2 1 642439
Medium bronze R05.3 1 642443
EV1 Silver R01.1 1 642447
Black brown R04.4 1 738956
4
Cover strip for roller track
Length Colour PQ Material no.
1300mm EV1 Silver – 1 642452
