Roto Patio Fold - Installing the sash stop

72  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Accessories

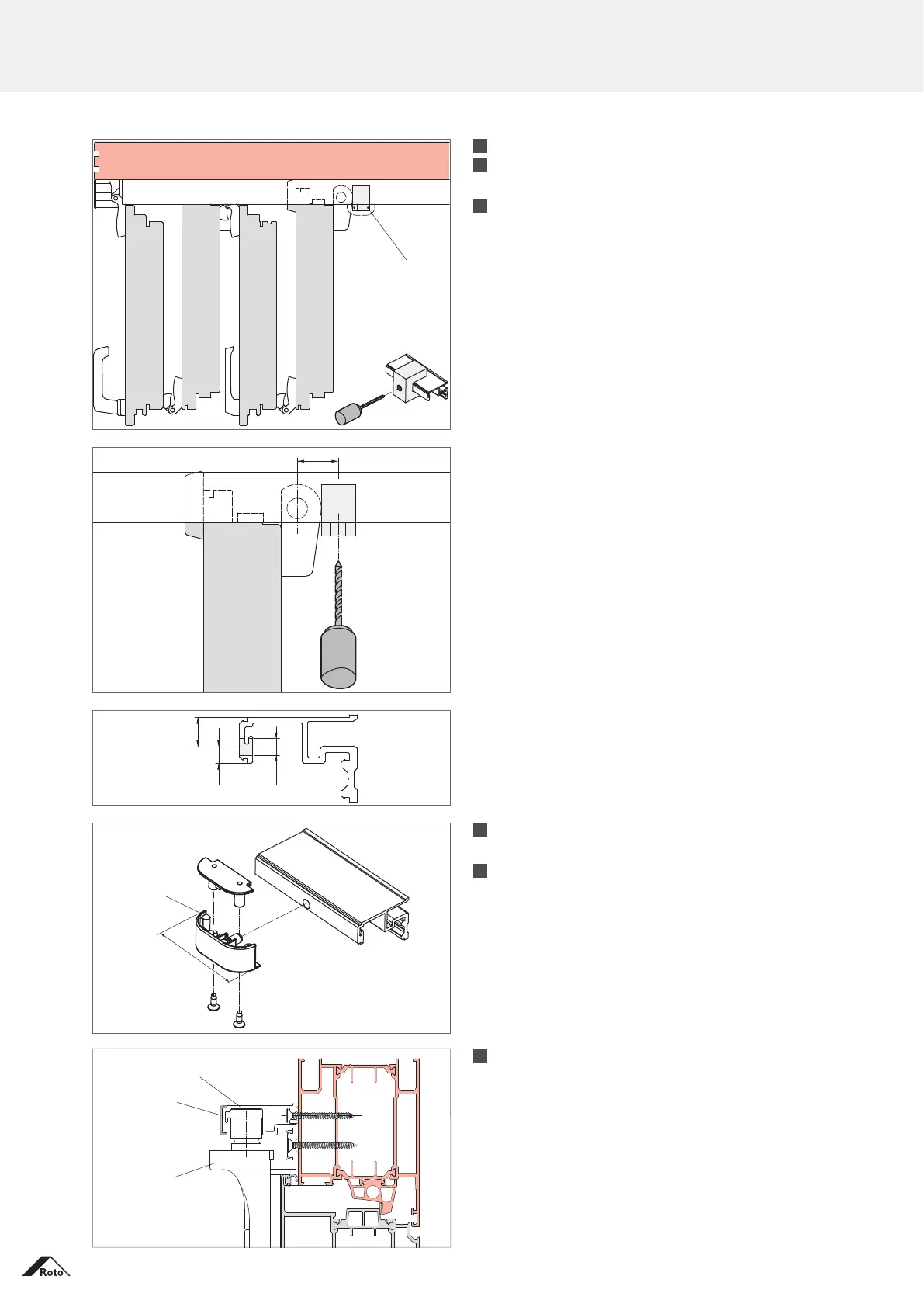

Installing the sash stop
Drilling jig
1.
Open the door and fold together the sashes.
2.
Determine the sash stop’s position when the sashes
are pushed together.
3.
Carry out the drilling in the guide track with drilling
jig (mat. no. 469831).
36
6
(11)
Ø 6.5
Sash stop
4.
Mount the sash stop and screw-fix with enclosed
countersunk screws.
5.
Check for ease of movement.
Guide track
Cover strip
Support
bracket
6.
Cut the cover strip to size acc. to dimension Z and
mount it.
Z
