Installation
Frame

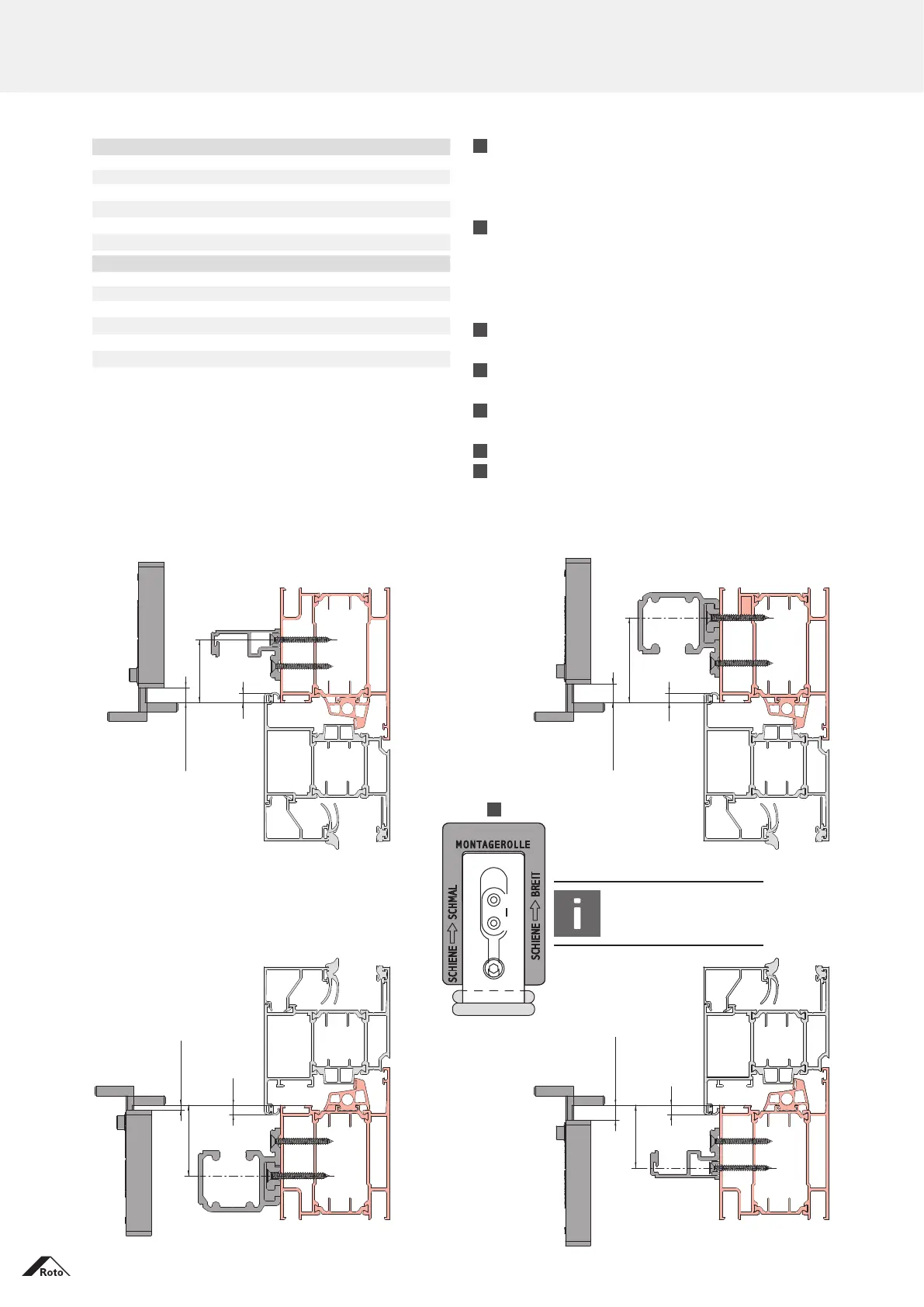

Installing roller track and guide track
Bottom running
39+A
A
34+A
A
48+A
A
Dimension "Y"
Dimension "Y"
34+A
A
Dimension "Y"
Dimension "Y"
unten laufend
oben laufend
Top running
Bottom running
A coverage Dimension Y Dimension Y
Overlap clearance Bottom Top
5 4 8.5
6 3 9.5
7 4 10.5
8 5 11.5
Top running
A coverage Dimension Y Dimension Y
Overlap clearance Bottom Top
5 4 8.5
6 9.5 12
7 10.5 13
8 11.5 14
1.
Carry out the frame drillings for the roll-supports
(2drillings per metre for roller track and 1 per metre
for guide track), with drilling jig (314417) and screw-
fix the rollers.
2.
Drillings for guide track:
Drilling jig for narrow track
Drillings for roller track:
Drilling jig for broad track
3.
Cut the bottom roller track to size:
Size = Frame external width –6mm
4.
Cut the guide track to size:
Size=Total width
5.
Place the roller tracks on the rollers from the top and
slide them in place according to the illustration.
6.
Predrill the mounting holes Ø3mm.
7.
Screw-fix the tracks.
2.
B2
B1
NOTE!
Depending on the required
distance, choose B1 or B2.
