Roto Patio Fold - Locking cam

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  77
-
+1
–1
–1 –1
+1 +1
1.
2.
3.

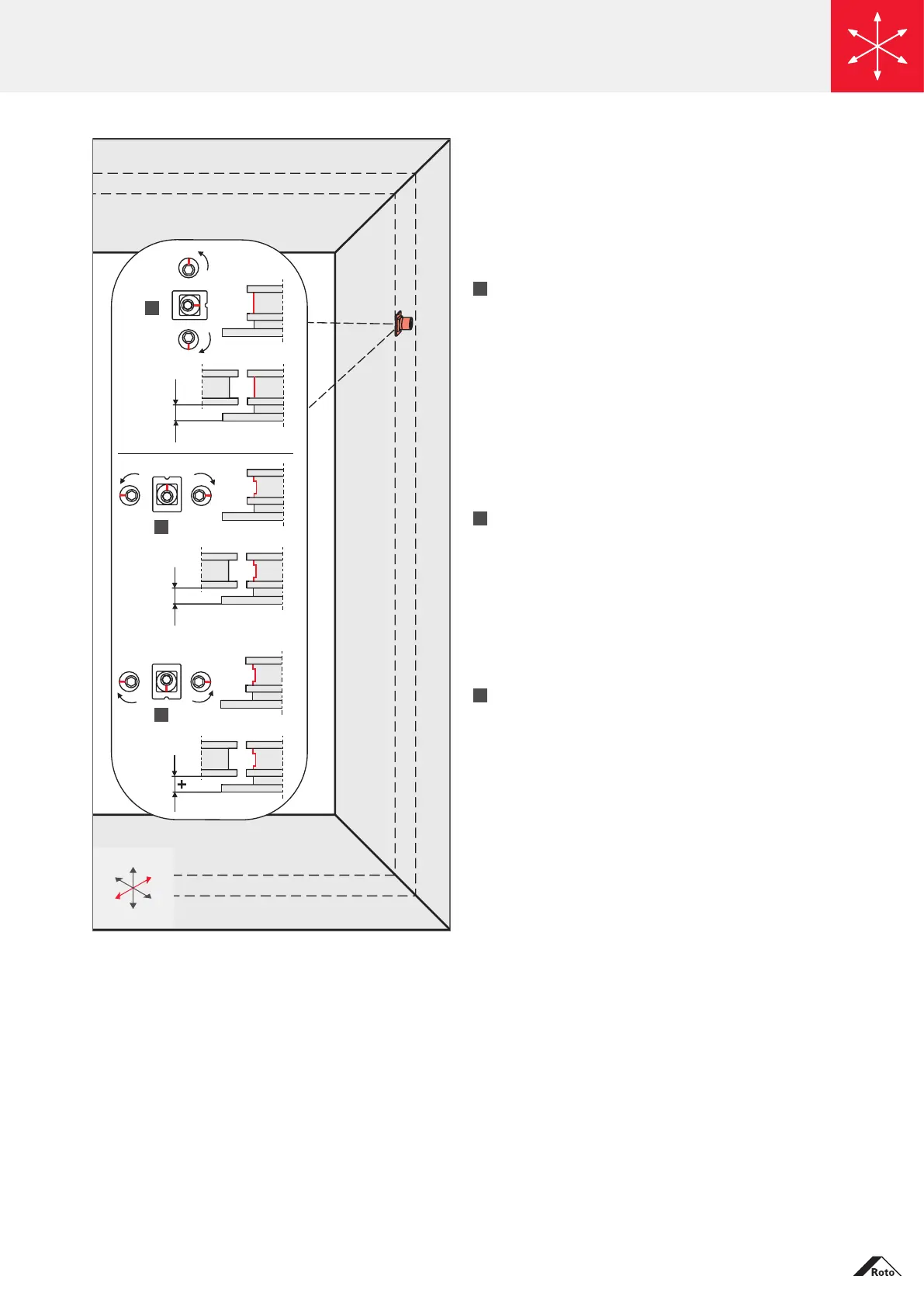

Adjust the gasket compression with a 4mm Torx key.
1.
Increasing and reduction of the gasket compression
possible.
2.
Only reduction of the gasket compression possible.
3.
Only increasing of the gasket compression possible.
Adjustment
Locking cam
Gasket-compression adjustment Tilt&Turn/Turn-Only sash
