Roto Patio Fold - Gasket-compression adjustment enhanced threshold

78  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.

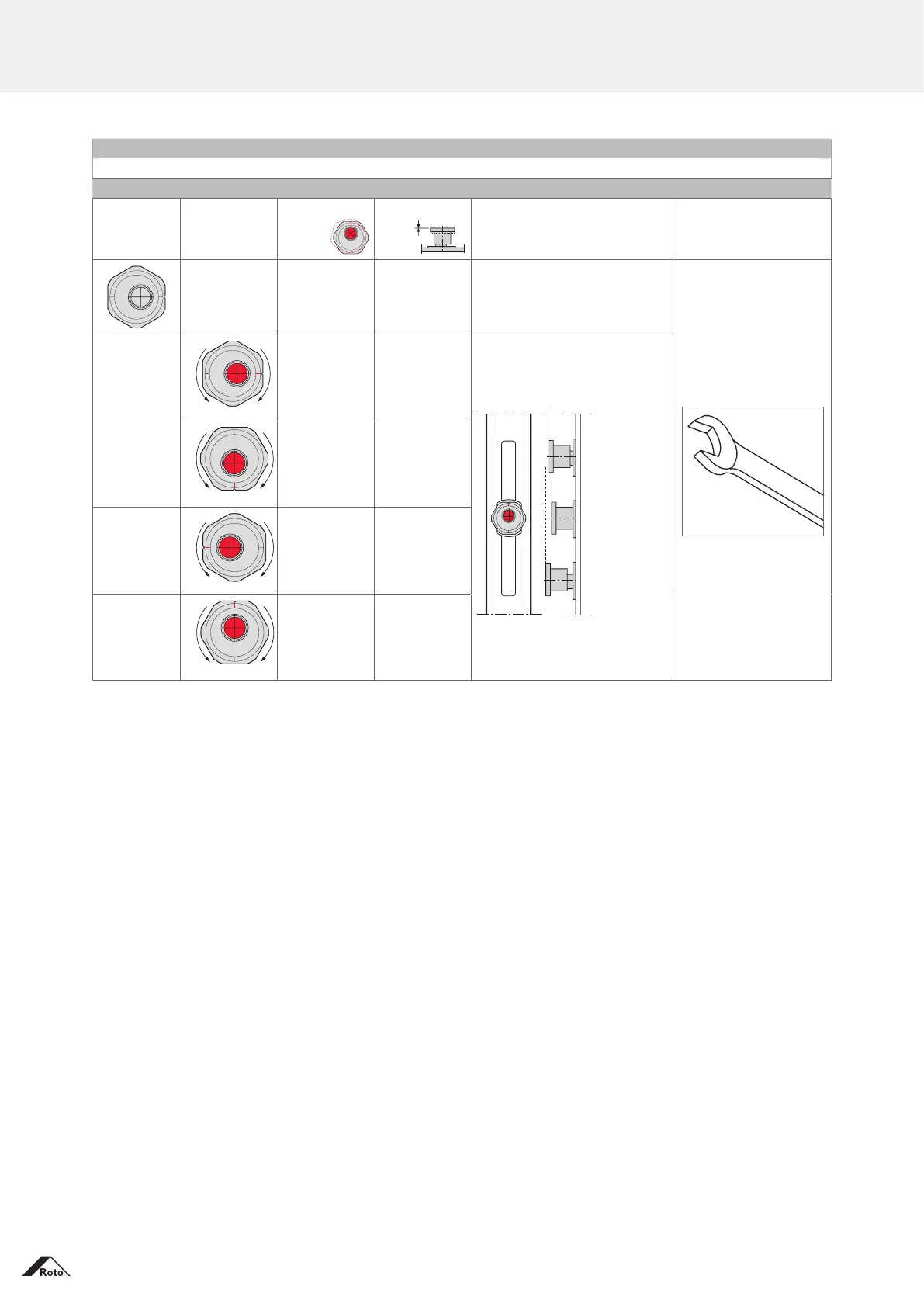

Locking cam adjustment instructions
V cam, extended (10mm clearance)
Cam type Adjustment range Gasket-compression adjust-
ment/mm
Height adjustment/mm Side view / top view Tools
90° 90°
±1.0mm ±0.2 mm
0 = Original position
–1.6mm
max. adjustment
+1.6mm
max. adjustment
180° 180°
– ±0.4 mm
270° 270°
±1.0mm ±0.6 mm
360° 360°
– ±0.8mm
Adjustment
Locking cam
Gasket-compression adjustment enhanced threshold
9mm
