Dismantling

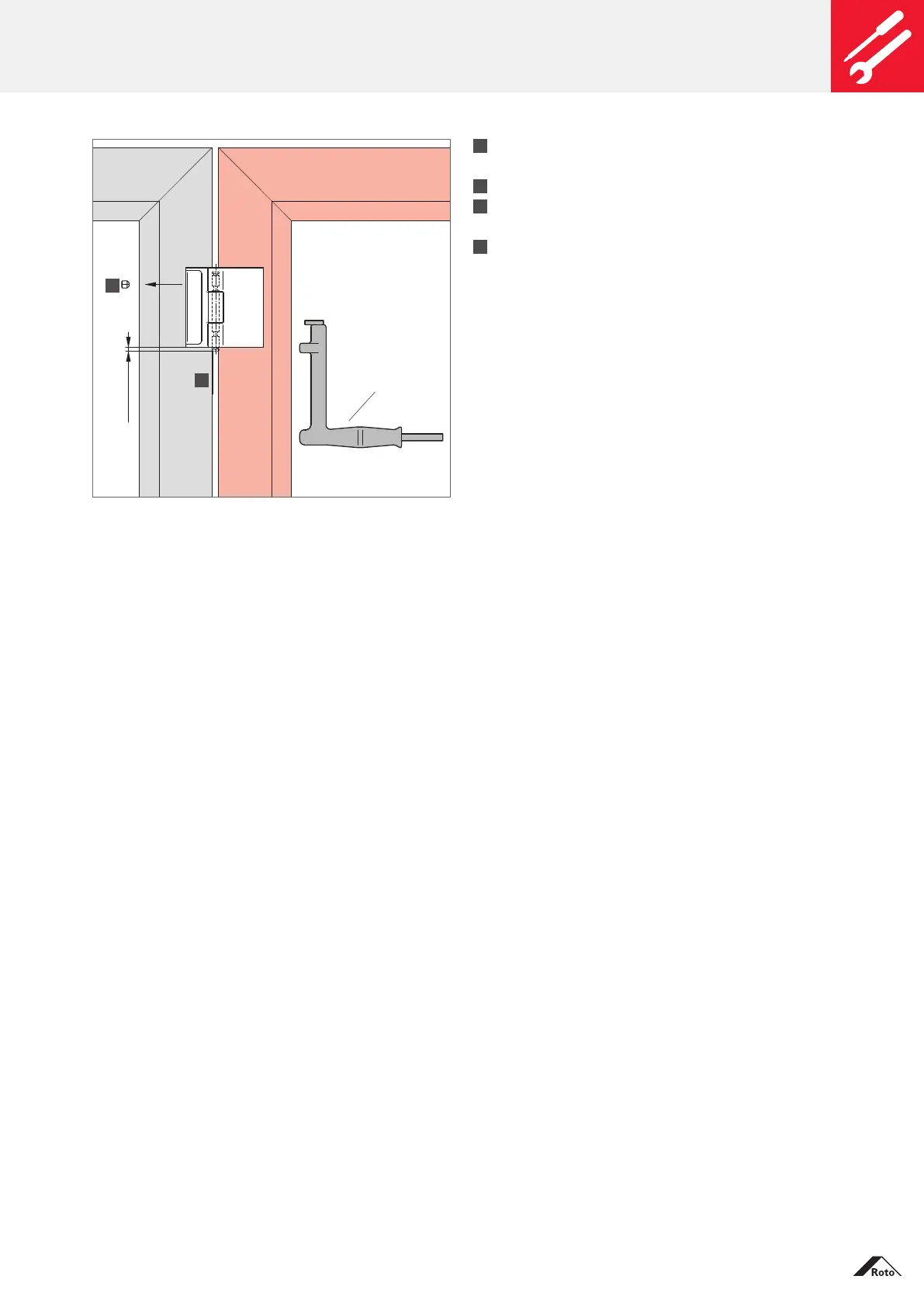

Unhinging the sash
Pin extractor
handle
min. 4mm
1.
Open the sash/element and secure it from falling
out.
2.
Remove the threaded bolt (2.5mm Allen key).
3.
Tap out the cylindrical pin min. 4mm and pull out
downwards with the pin extractor handle.
4.
Carefully lift out the sash.
2.
3.
