Roto Patio Fold - Advice on the use of glazing packers

70  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Advice on the use of glazing packers

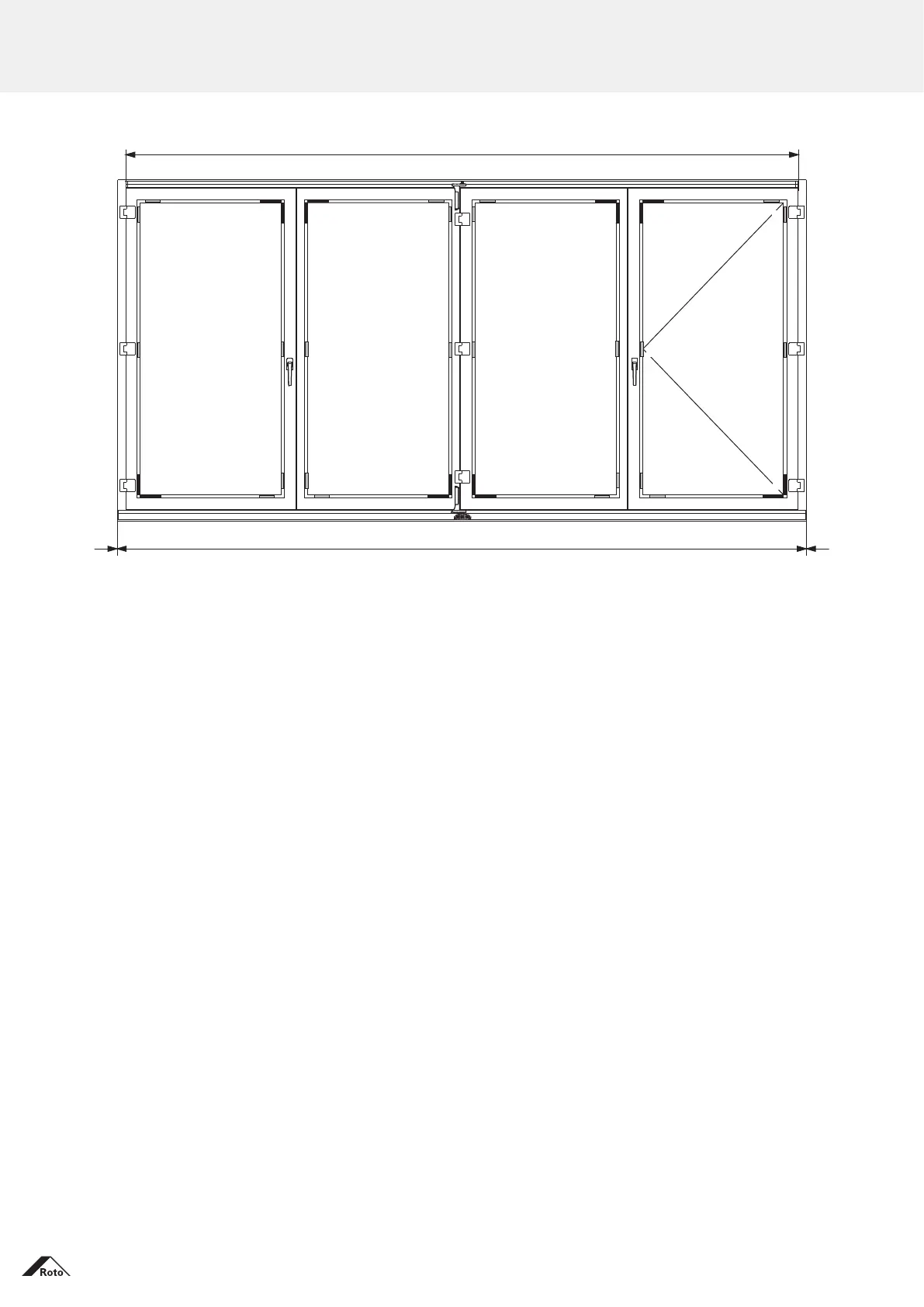

Frontal view support bracket
T
T
T
T T
T
T
T
D
D
D
DD
D
D
D
D
D
D
DD
D
D
D
33
T = Support block
D = Spacer block
Length of roller track = FEW – 6mm
Length of guide track = Total sash width
