Roto Patio Fold - Supporting the roller track and the enhanced threshold

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  63
300
≤ 300
≤ 300
≤ 300
3
4
2
1

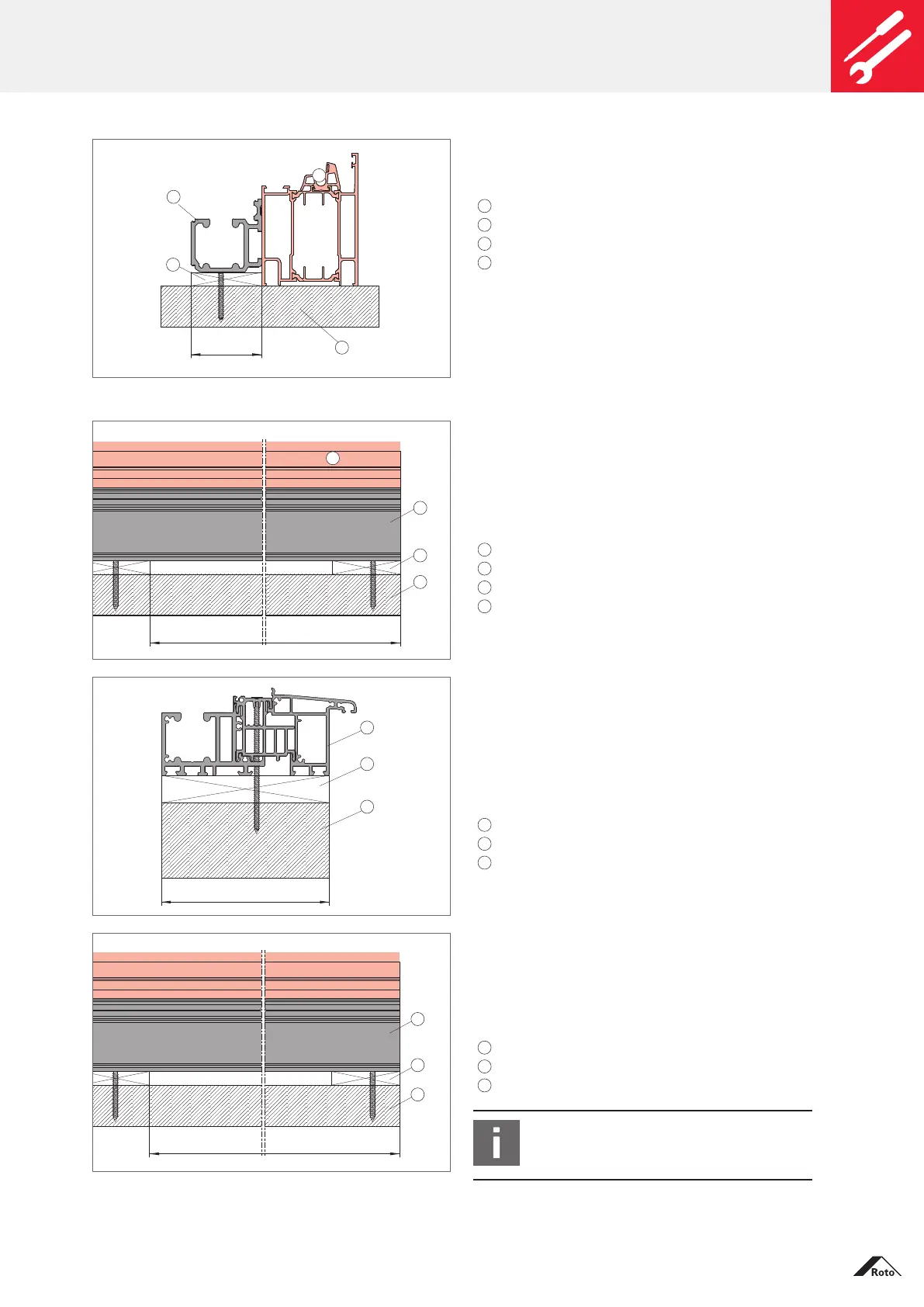

Put down a pressure-resistant packer over the complete
width of the roller track.
1
Roller track
2
Packer
3
Frame
4
Floor
300
≤ 300
≤ 300
≤ 300
3
4
2
1
Packer along the complete length of the roller track, but
at least every 300mm out from the corner.
Screw the roller track onto the floor through the packer
at least every 300mm.
1
Roller track
2
Packer
3
Frame
4
Floor
300
≤ 300
≤ 300
≤ 300
1
2
3
Put down a pressure-resistant packer over the complete
width of the enhanced threshold.
Pre-drill the screw position / rawlplug position with max.
Ø10mm. Coordinate the screw length and screw
diameter
at the installation site.
1
Enhanced threshold
2
Packer
3
Floor
300
≤ 300
≤ 300
≤ 300
1
2
3
Packer along the complete length of the enhanced
threshold, but at least every 300mm out from the corner.
Screw the enhanced threshold onto the floor through
the packer at least every 300mm.
1
Enhanced threshold
2
Packer
3
Floor
NOTE!
Maximum permitted unevenness of the
entire
enhanced threshold ±1mm.
Installation
Frame
Supporting the roller track and the enhanced threshold
