Roto Patio Fold - Connecting sash and frame; Hinging the sash

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  67

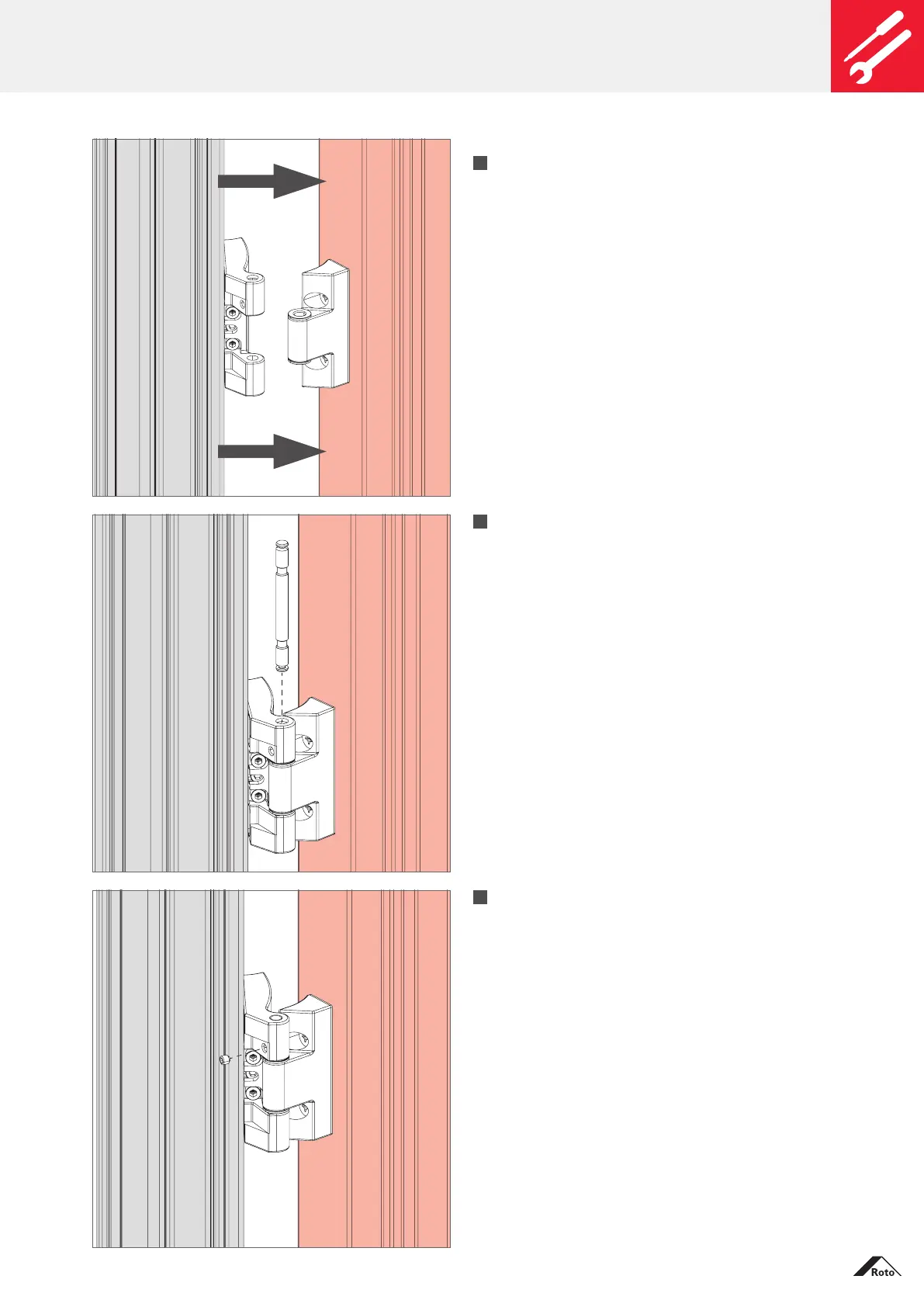

Installation and securing
1.
With the sash open, bring the hinge and bearing
together .
2.
Insert the cylindrical pin flush.
3.
Secure the cylindrical pin with the size 2.5bolt.
Tightening torque: 5Nm
Installation
Connecting sash and frame
Hinging the sash
