68  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Guide roller
Lock-nut

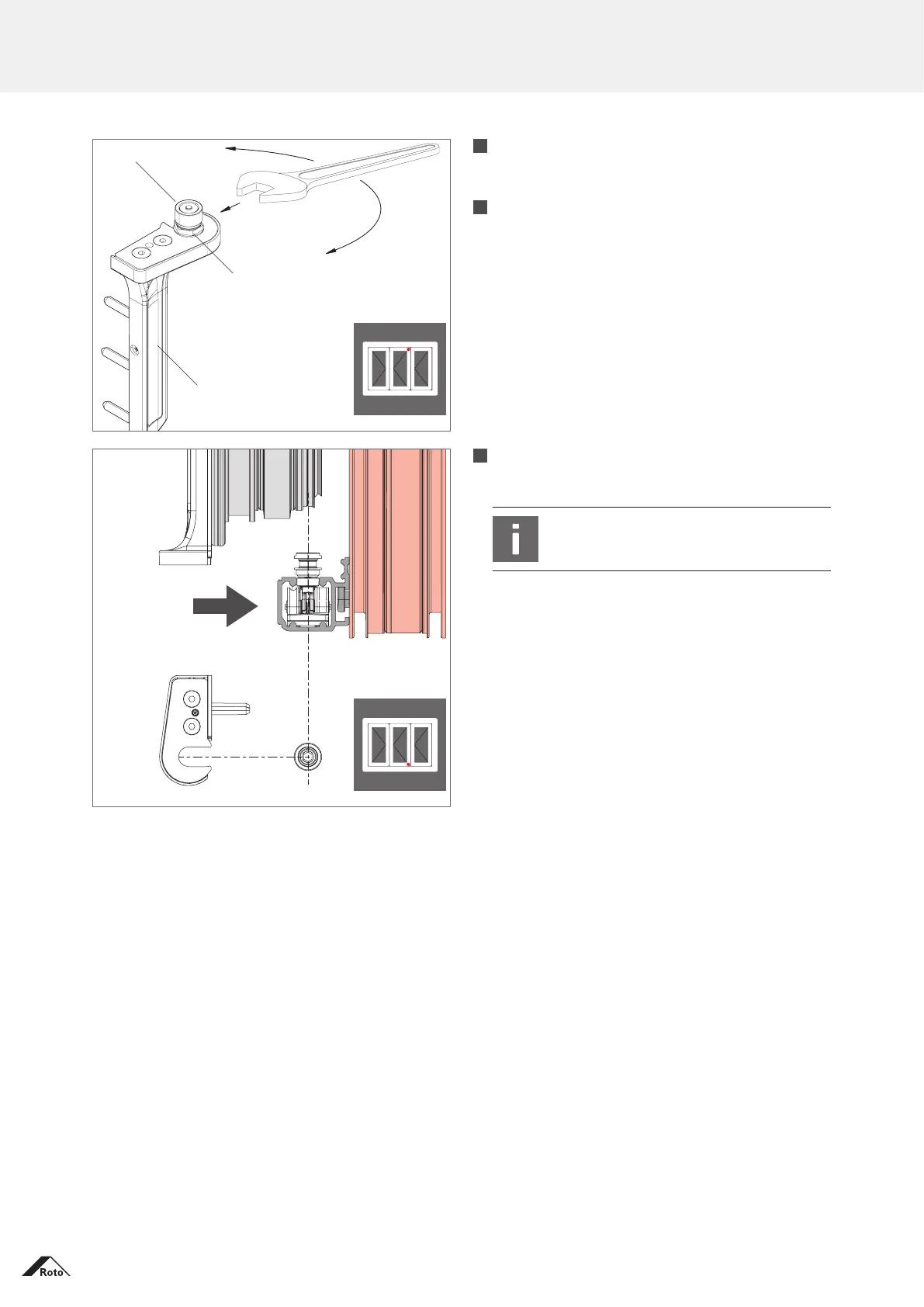

Diagram 321
Support bracket
1.
2.
Insert the sash with the guide roller into the rail at
the top and swing in the sash.
Screw-fix the lock-nut with open-end spanner size17.
Tightening torque: 22Nm ±2Nm
Diagram 321
Installation
direction
3.
Connect the bogie and the support bracket:
Tightening torque: 22Nm ±2Nm
NOTE!
Pay attention to the installation direction.
Installation
Connecting sash and frame
Hinging the sash
