Roto Patio Fold - Installing contour-milled frame

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  57
Installation
Frame
Installing contour-milled frame
2.
1.
2.

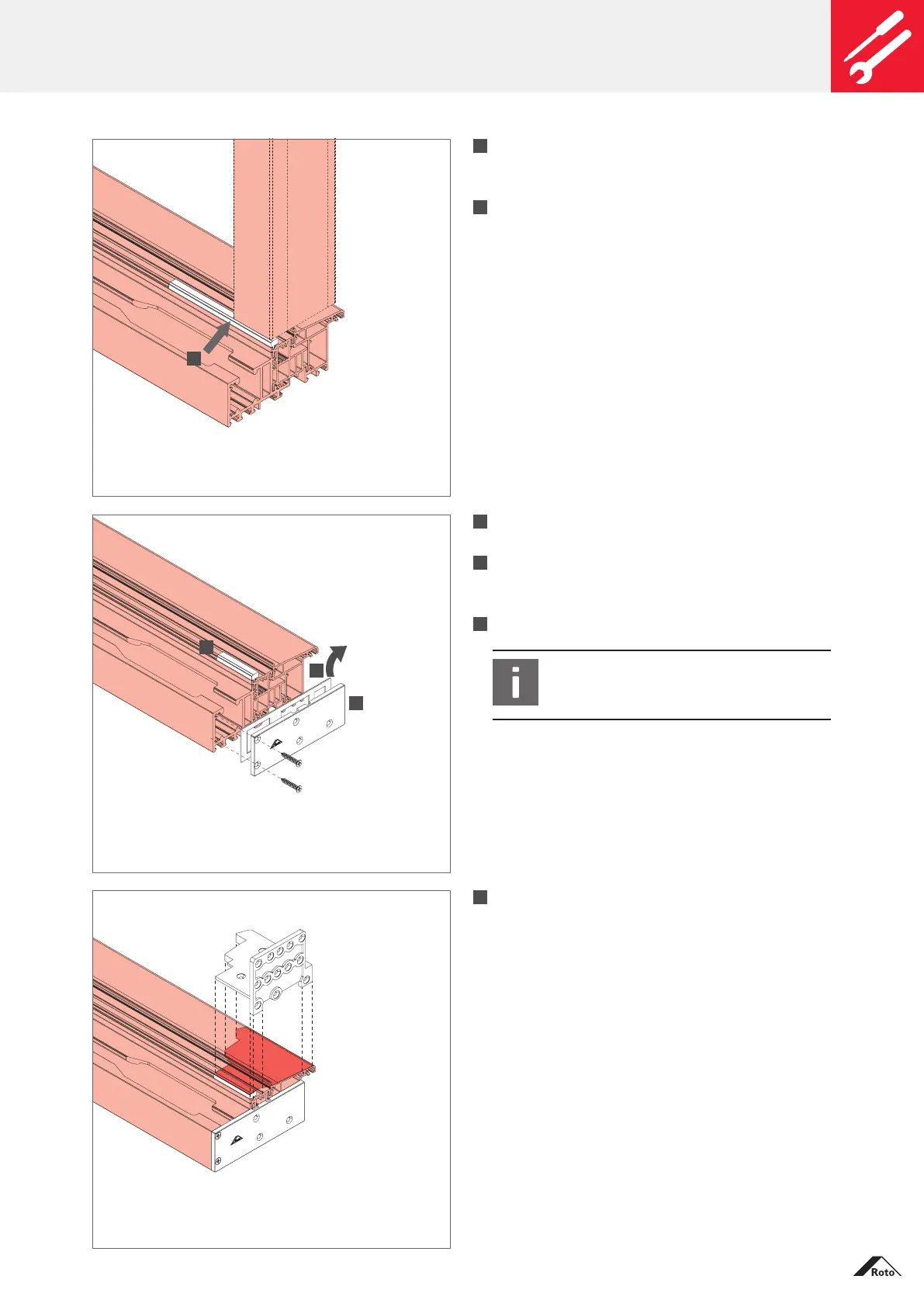

Cut the enhanced threshold to the required length,
making sure that the cut edge is clean.
Cut the TB adapter profile (548528) to the width of
the profile.
3.
4a
4b
3.
4a
4b
Insert the cut TB adapter profile (548528).
Pull off the adhesive film on the cover cap before
placing it onto the threshold.
Secure the cover cap.
NOTE!
The screws shown are in the misc. small
components pack of the enhanced threshold.
5.
Seal the surface on the threshold before installing
the threshold bracket with a suitable sealing
compound
to prevent the ingress of water.
