Installation
Drilling and routing dimensions

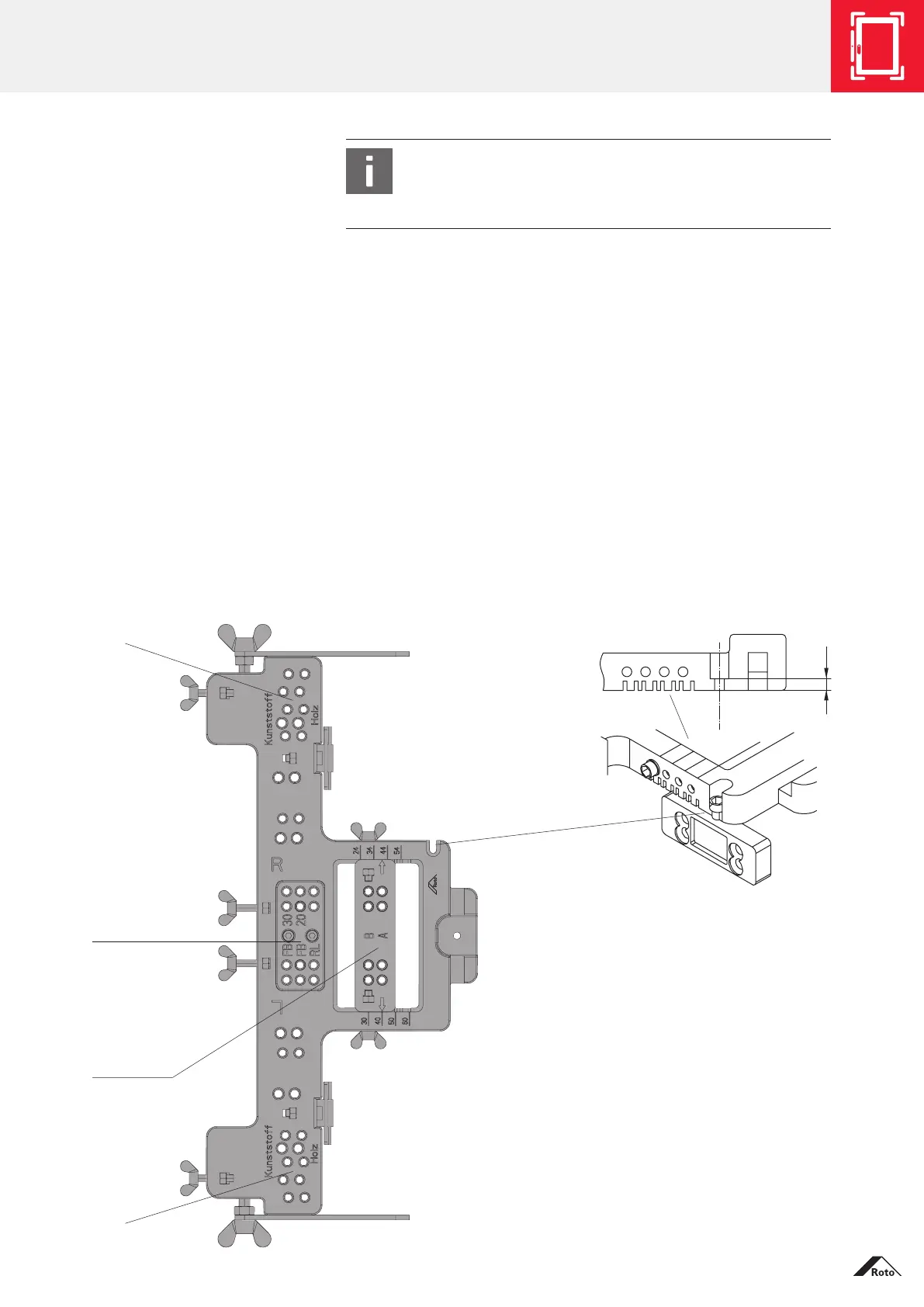

Notes on screw-fixing and drilling jig
6.2
Buffer-stop of
sash edge
Spacer for shadow-gap
adjustment 4/5/6mm,
preset to 4mm
Spacer for shadow-gap
adjustment 4/5/6mm,
preset to 4mm
Drill holes
Support bracket
Drill holes
Support bracket
Drilling insert
Frame / sash
hinge-bearing
Adjustment
SW 20 or SW 30
Adjust the hinge-fixing insert
ifnecessary
Adjustment insert
Hinge-fixing insert
NOTE!
The window fabricator must ensure adequate fixing of the hard-
ware components and correct load transfer.
Recommendation:
Prove by DINEN13126-15, tests 7.2 and 7.3.
Screw-fixing through 2 profile walls
 The wall-thickness of the first screwing level through aluminium must be
at least 2mm.

If the wall-thickness of the first screwing level is < 2mm, use supports or
riveting nuts in order to achieve a wall-thickness of at least 2mm.
 The wall-thickness of the second screwing level through aluminium must
be at least
1.6mm .
Screw-fixing through 1 profile wall

The wall-thickness of the first screwing level through aluminium must be
at least
6mm .
 To achieve this, supports or riveting nuts must be used.
