Roto Patio Fold - Connecting folding sashes to each other

52  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Sash
Connecting folding sashes to each other
Installation and securing

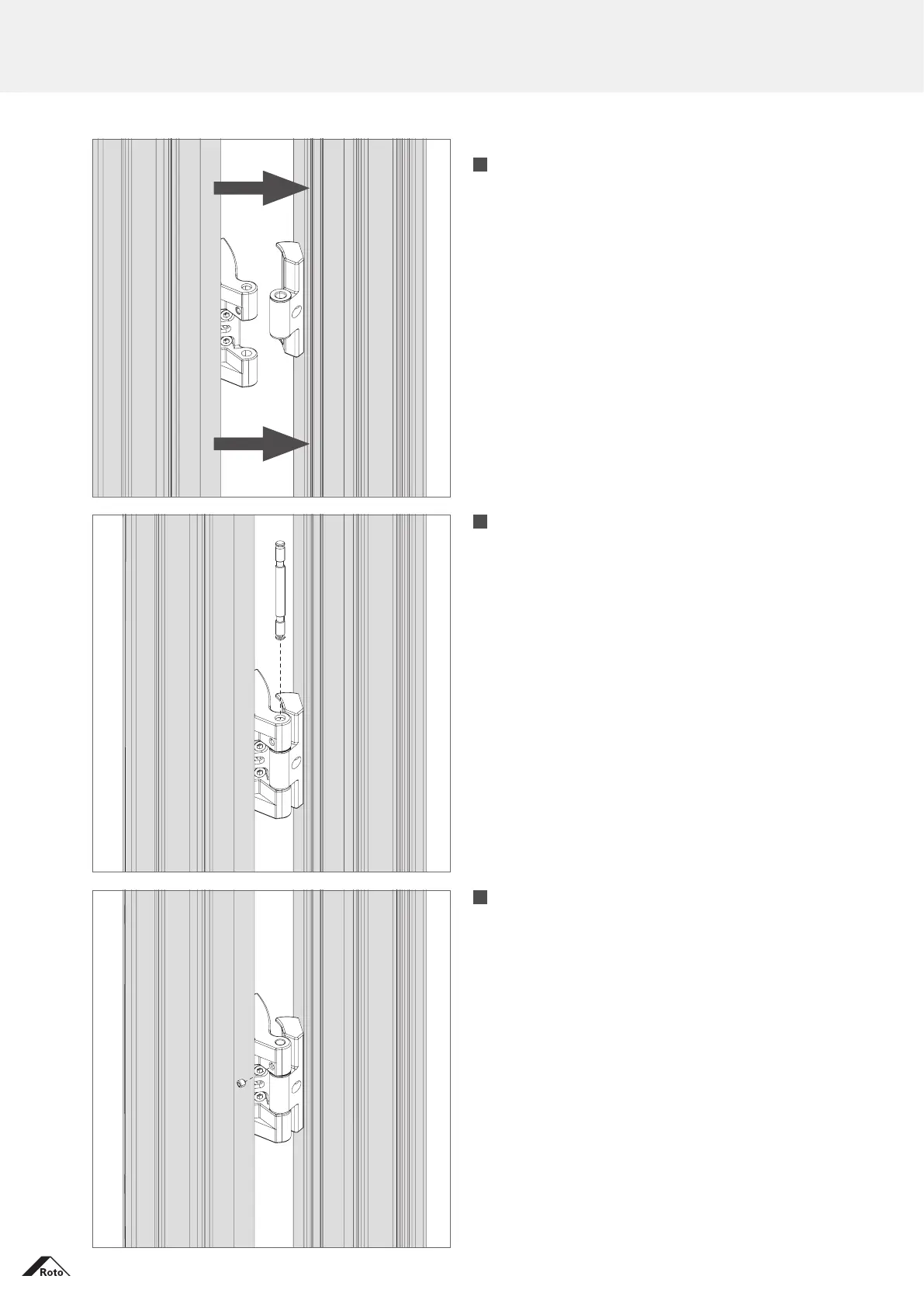

1.
With the sash open, bring the hinge and bearing
together .
2.
Insert the cylindrical pin flush.
3.
Secure the cylindrical pin with the size 2.5bolt.
Tightening torque: 5Nm
