Installation
Sash
Installing the sash hinge
2.2.

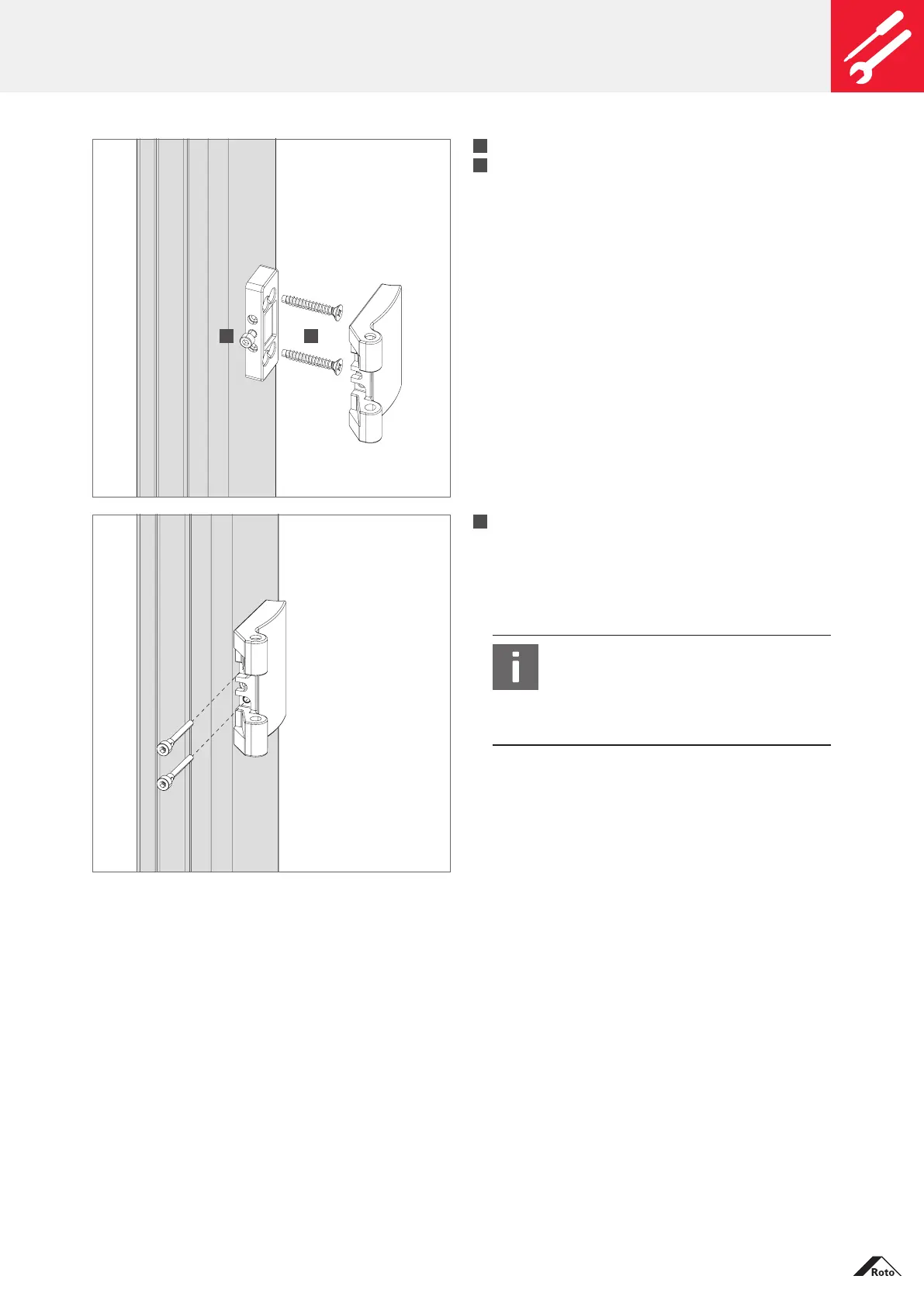

1.
Push in the hinge-fixing insert.
2.
Fix with Euro screws and 4mm cylinder screw.
3.
Put hinge 40 or hinge 50 on the hinge-fixing insert
and fix with 4mm cylinder screws.
At the factory the hinge-fixing insert is designed
with hinge 40 for 40mm bolt axis or with hinge 50
for 50mm bolt axis.
NOTE!
Seal the profile holes for the outer frame
hinge-bearing and hinge-fixing inserts with
suitable sealing compound to prevent the
ingress of water.
