Roto Patio Fold - Mounting support bracket for bottom enhanced threshold

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  47
1.
Determine the profile’s overlap width.
2.
Determine the reference dimension X
(=overlap width -11.5mm)
3.
Set the reference dimension X
(e.g. with metre rule or slide gauge)
4.

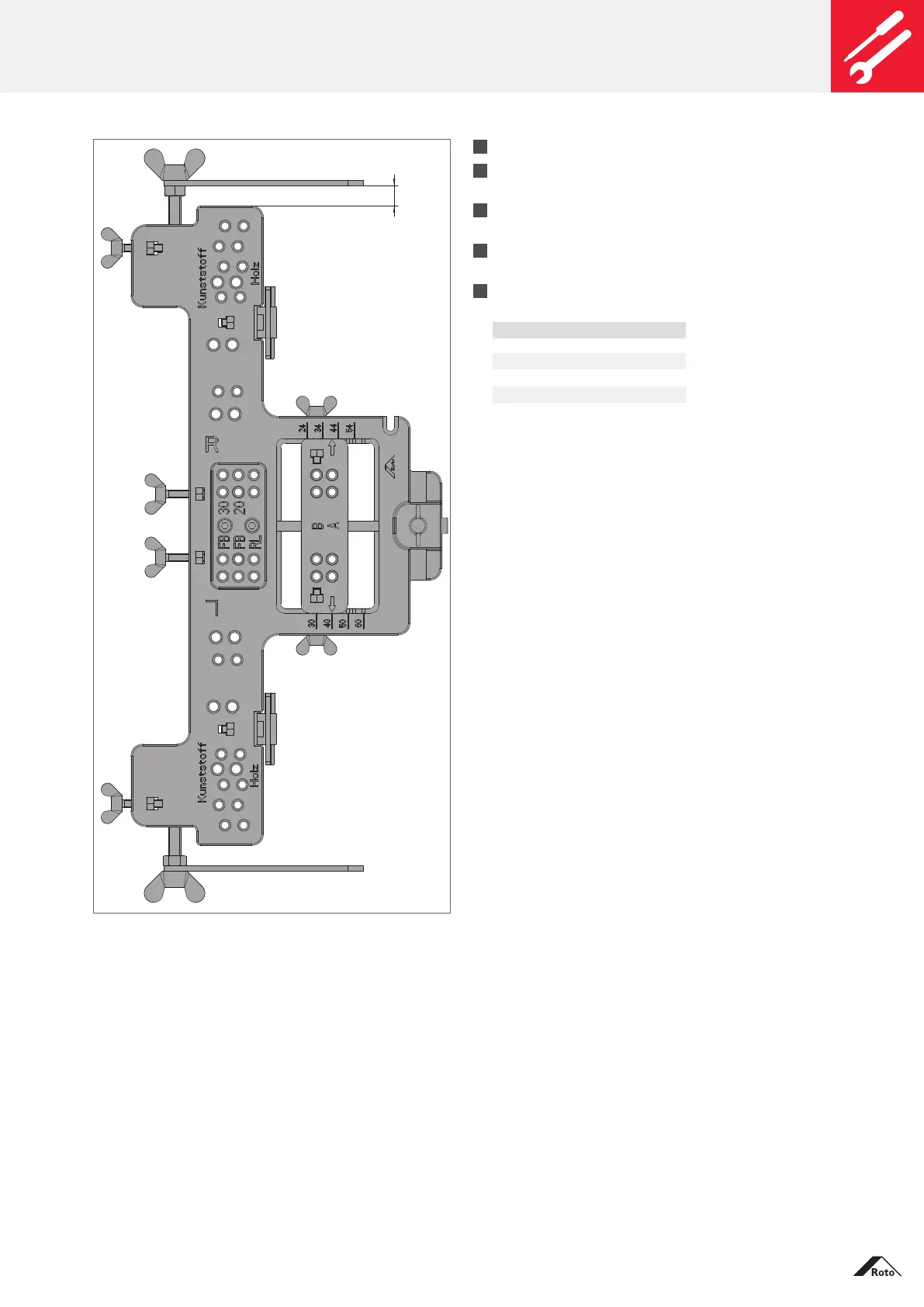

Place the drilling jig on the profile and push the
stopto the sash edge. Fix the drilling jig.
5.
Drills the holes.
Examples for dimension X with ...
Overlap width Dimension X
15 = 8
20 = 13
25 = 18
Installation
Sash
Mounting support bracket for bottom enhanced threshold
X
