Roto Patio Fold - Installing the sash hinge-bearing

50  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Sash

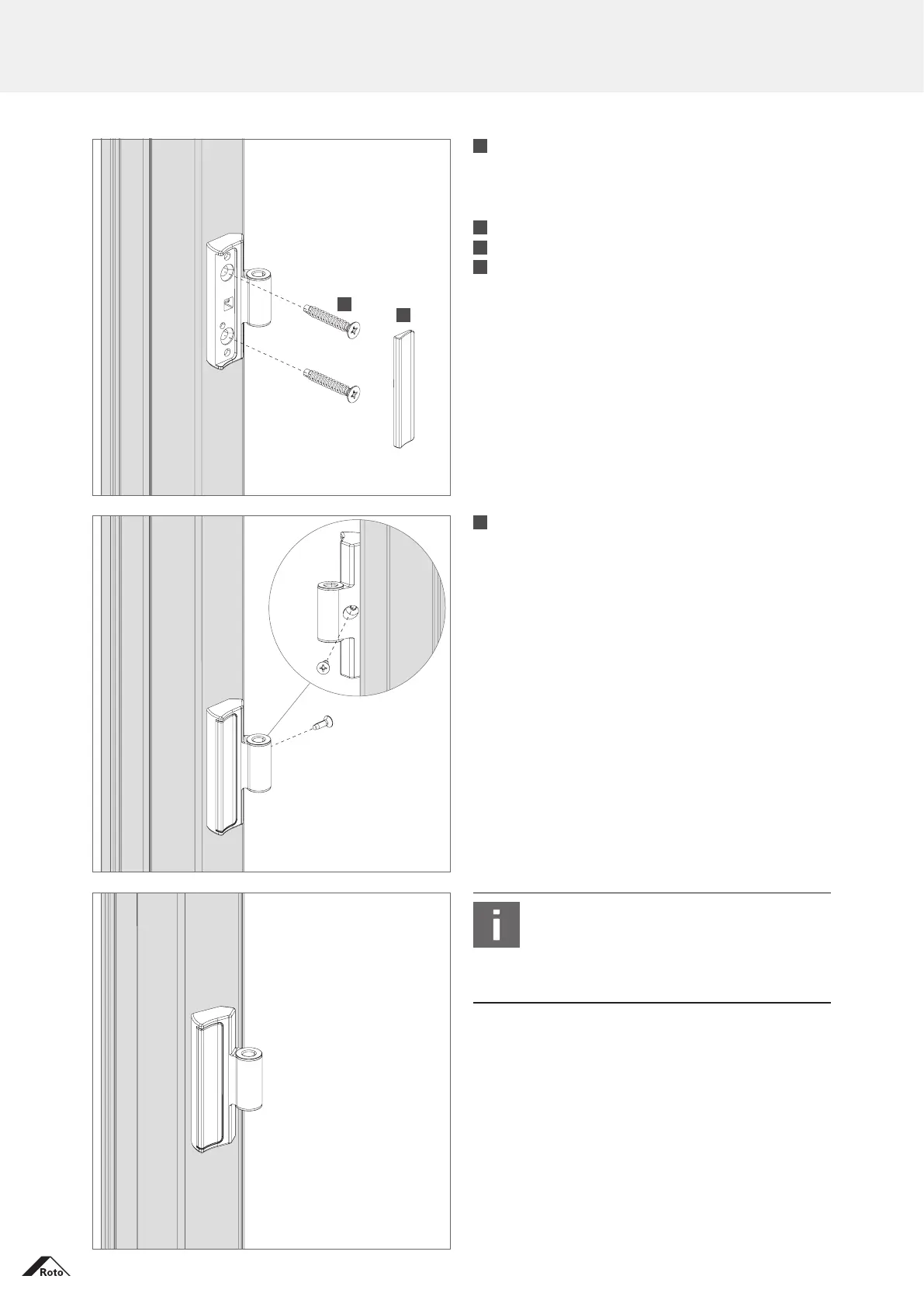

Installing the sash hinge-bearing
3.
4.
1.
Fold together the folding sash according to the
diagram , carry out the drillings for the sash hinge-
bearing, then for the hinge-fixing insert and the
support brackets with drilling jig (643365), not dep.
2.
Push in the sash hinge-bearing (not dep.).
3.
Screw-fix the sash hinge-bearing with Euro screws.
4.
Position the cover plate.
5.
Secure the cover plate with countersunk screw.
NOTE!
Seal the profile holes for the outer frame
hinge-bearing and hinge-fixing inserts with
suitable sealing compound to prevent the
ingress of water.
