Installation
Sash

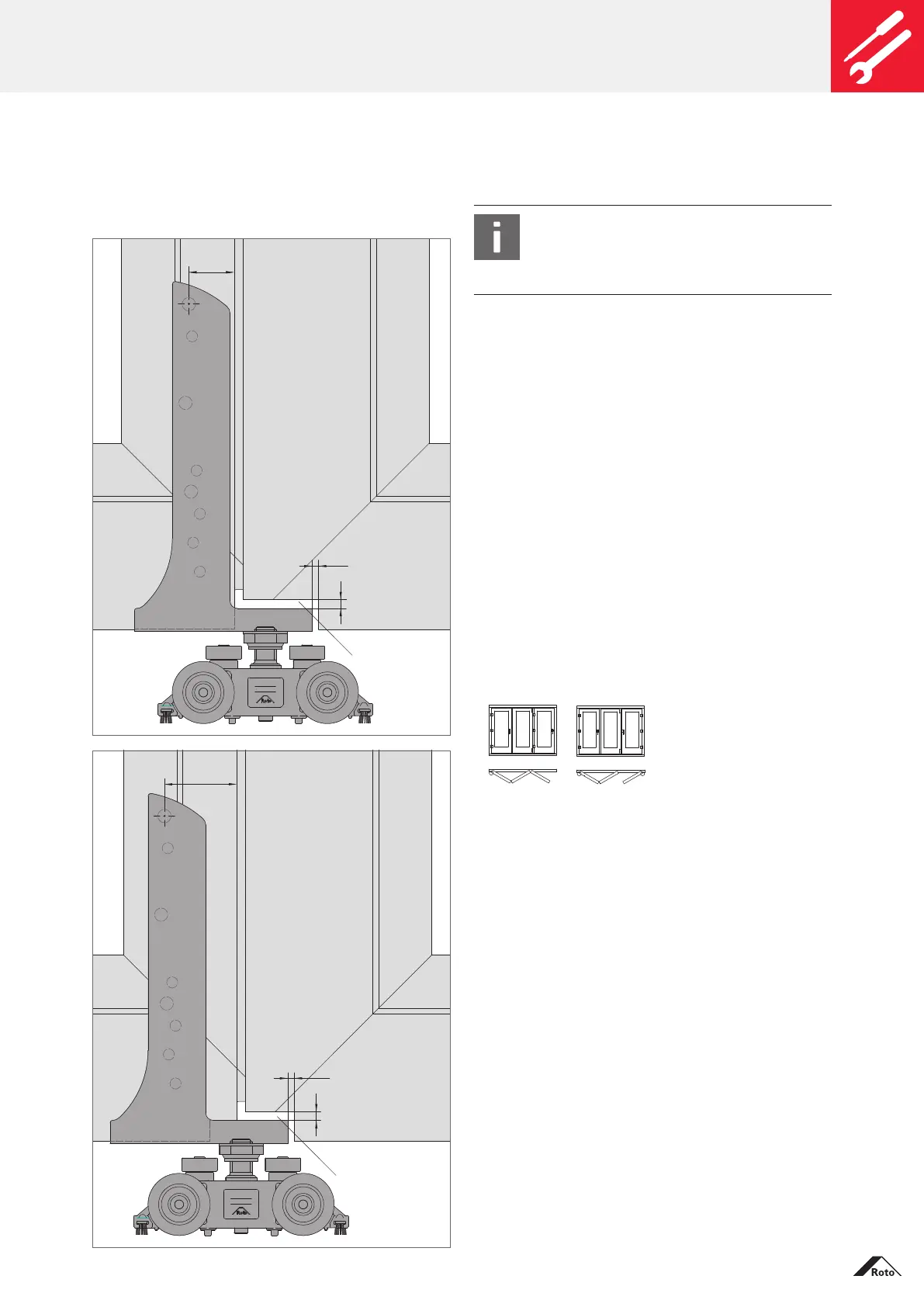

Mounting support bracket for bottom enhanced threshold
Punching on aluminium profiles
Punching is normally necessary on one sash.
A E As
SCHEMA 321
B
A
B
C F
SCHEMA 330
5
0
4
20.520.5
Support bracket
routing
for installation caseE
for installation caseC
5
0
4
32.5
Support bracket
routing
for installation caseE
for installation caseC
NOTE!
Accurate measurements of punching in the corre-
sponding drawing for a profile check
( page 37).
