Roto Patio Fold - Drilling and routing dimensions, surrounding frame

66  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Frame

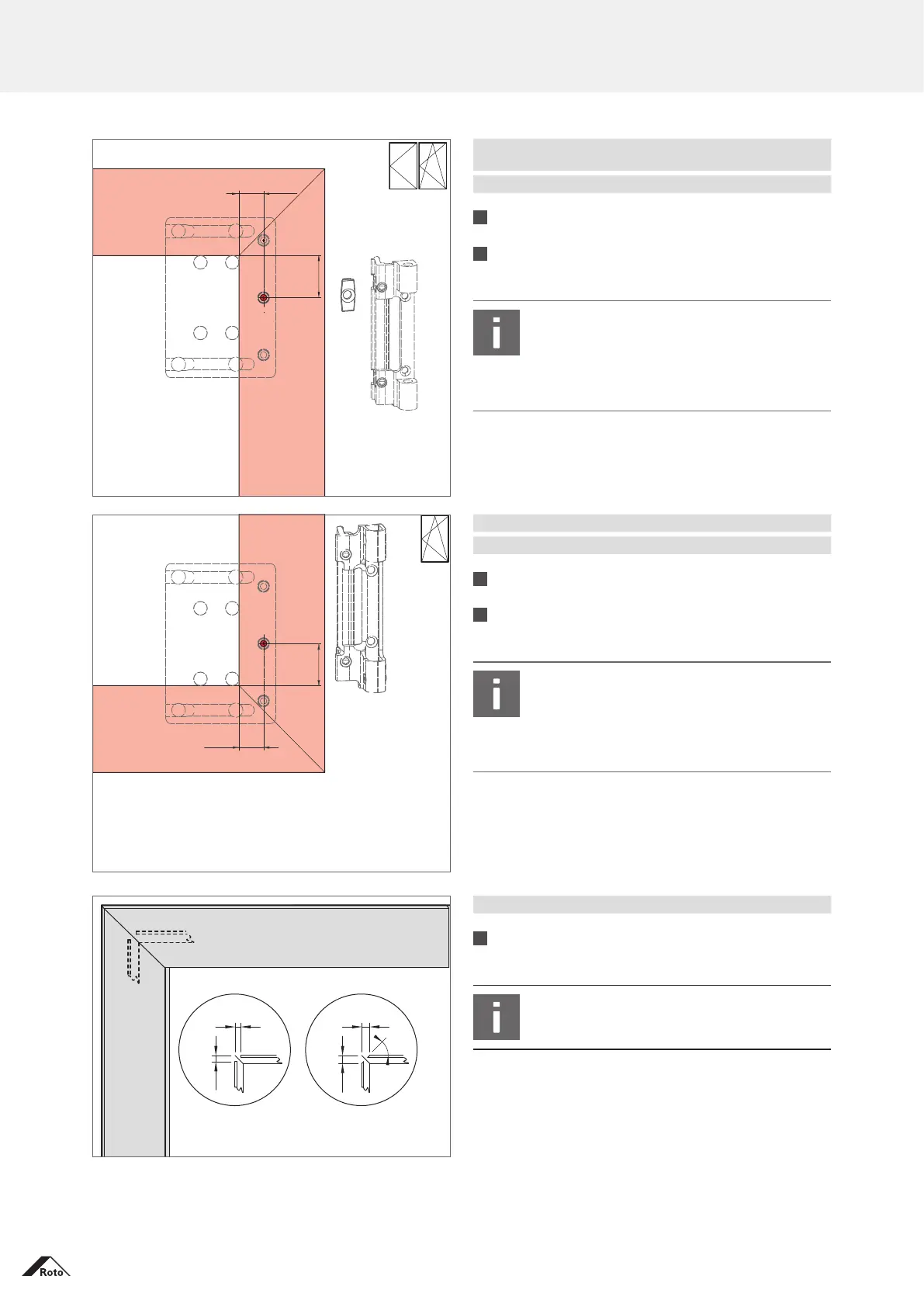

Drilling and routing dimensions, surrounding frame
25
14.5
Drilling for fixing connecting-link for stay bearing / swivel
bearing (S.kg>90kg)
Jig for stay bearing and pivot rest 638665
1.
Position the drilling jig at the cams in the frame.
2.
Drill the hole:
1xØ3.9mm, depth min. 14mm.
NOTES!
 The description refers to the surrounding
frame.

Wall-thickness≥6mm (with corner connector ).
On solid material drill out to Ø4.1mm.
25
14.5
Drilling for pivot rest (SH>2400mm)
Jig for stay bearing and pivot rest 638665
1.
Position the drilling jig at the cams in the frame.
2.
Drill the hole:
1xØ3.9mm, depth min. 14mm.
NOTES!
 The description refers to the surrounding
frame.
 Wall-thickness≥6mm (with corner connector ).
On solid material drill out to Ø4.1mm.
4.5
4.5
max. 5
45°
max. 5
Alternatively:
Routing for the sash corners
1.
Open all sash corners of the connecting-rod groove
according to the drawing.
NOTE!
Ensure burr-free edges.
