Roto Patio Fold - Bogie; hinge

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  75

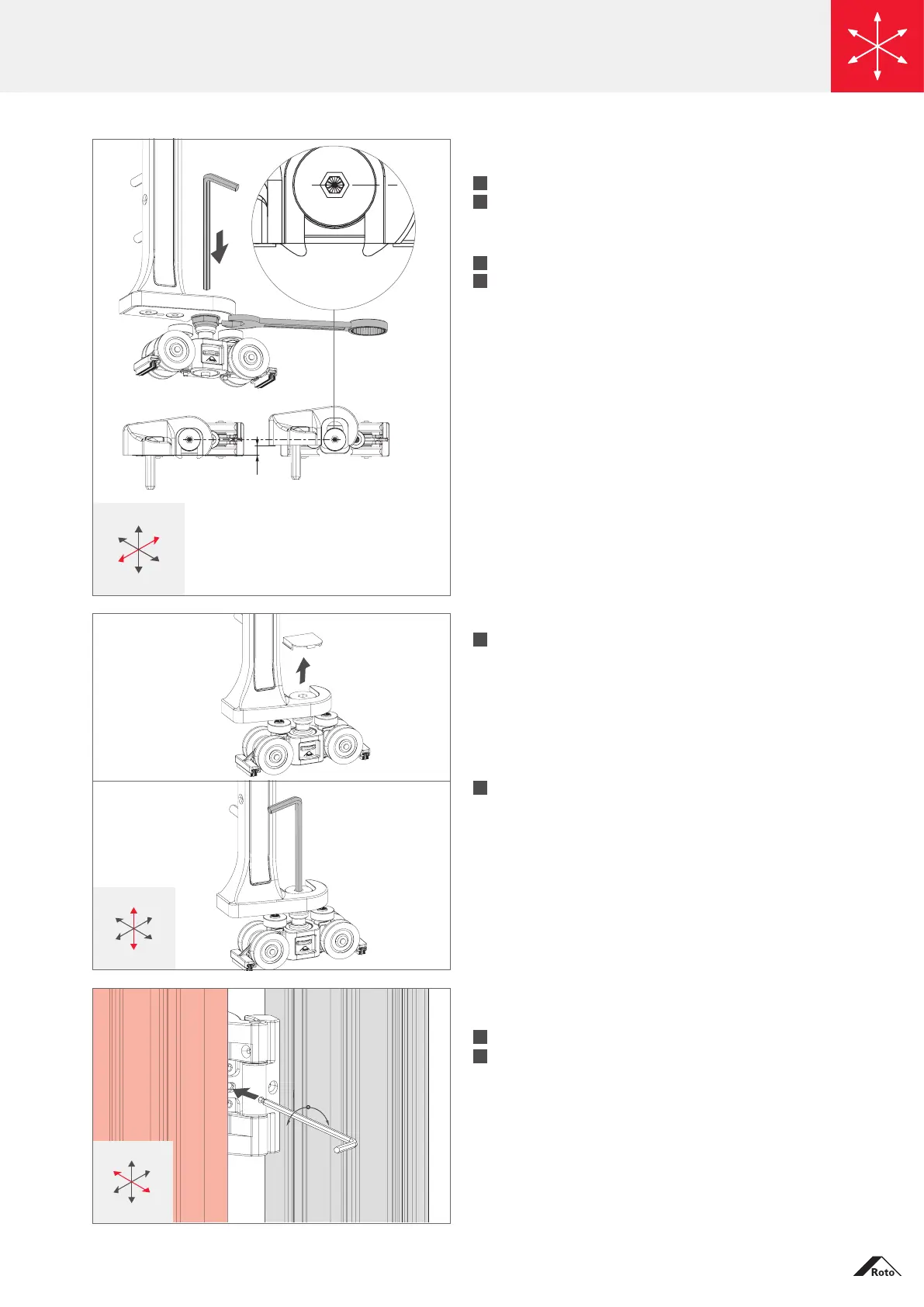

Adjustment
Bogie/hinge
Gasket compression, height/lateral adjustment
11
Gasket-compression adjustment of the sashes
viabogie
1.
Remove the cover cap.
2.
Release the support bracket on the threaded bolt.
Allen key size6 and
open-end spanner size17.
3.
Set the gasket compression.
4.
Tighten the screws.
+3.5
-2.5
Height adjustment of the sashes via bogie
1.
Remove the cover cap.
2.
Adjust the bogie height by turning the threaded bolt
with the 4mm Allen key.
+3.0
–3.0
Lateral adjustment of the shadow gap via the
hinge
1.
Open the sash resp. element.
2.
Turn the cylinder screw in the middle with a 4mm
Allen key for adjusting the hinge.
4mm Allen key
Turning 180° = 0.5mm
Turning 360° = 1.0mm
