Roto Patio Fold - Drill the drainage drill-holes

56  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Frame

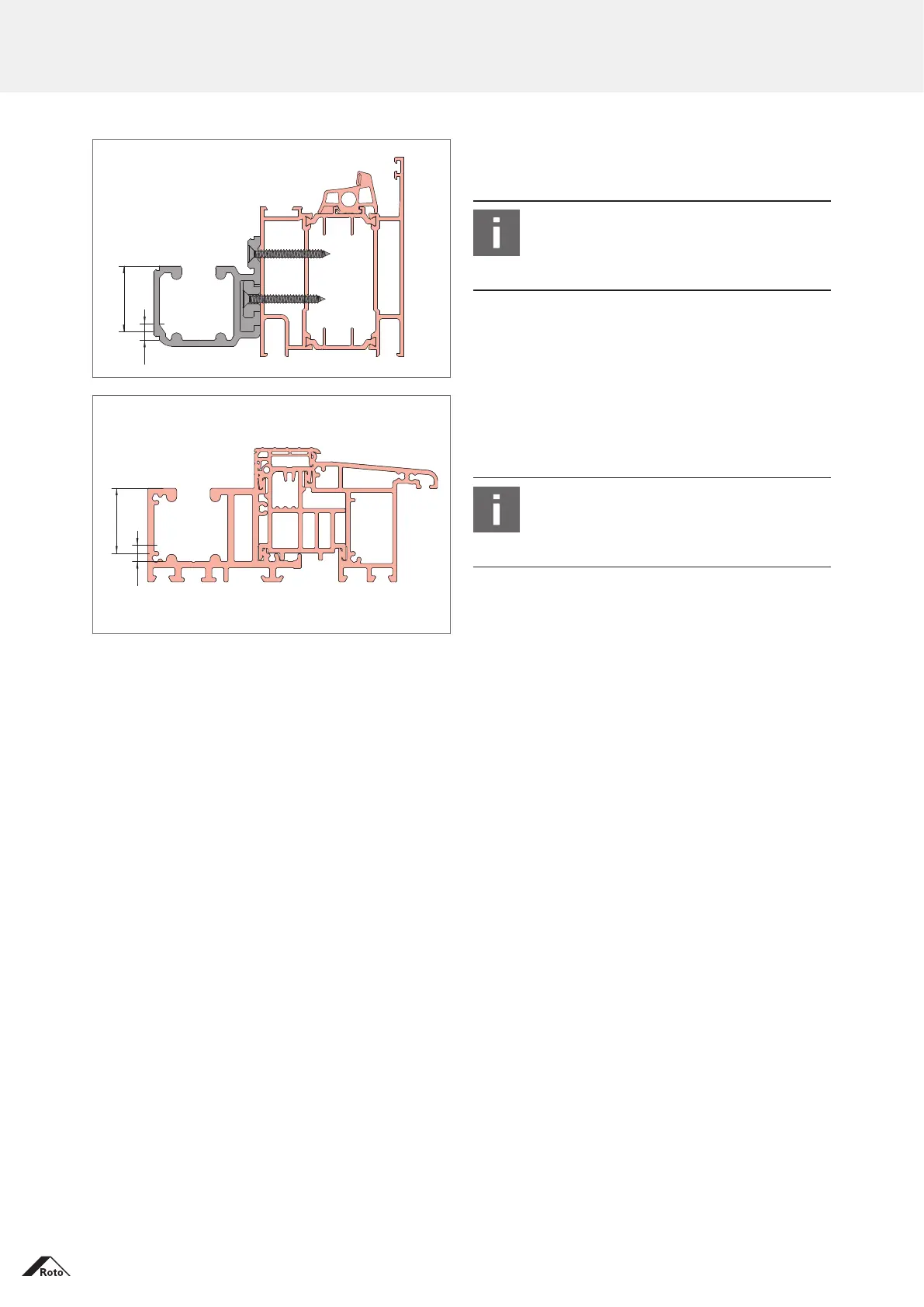

Drill the drainage drill-holes.
Ø 8
32
Ø 8
32
If the roller track is used outdoors, 8mm holes must be
made at 300mm intervals in order to remove water.
NOTE!
Do not damage the roller track while drilling.
Deburr the holes and clean the running
surfaces
of the bogie after drilling.
Ø 8
32
Ø 8
32
If the enhanced threshold is using for "outward open-
ing", 8mm holes must be made at 300mm intervals in
order to remove water.
NOTE!
Do not damage the roller track while drilling.
Deburr the holes and clean the running
surfaces
of the bogie after drilling.
