Roto Patio Fold - Installing the frame counter-routed

Subject to change. Roto Patio Fold IMO_374_EN_v1  April 2015  61
Installation
Frame

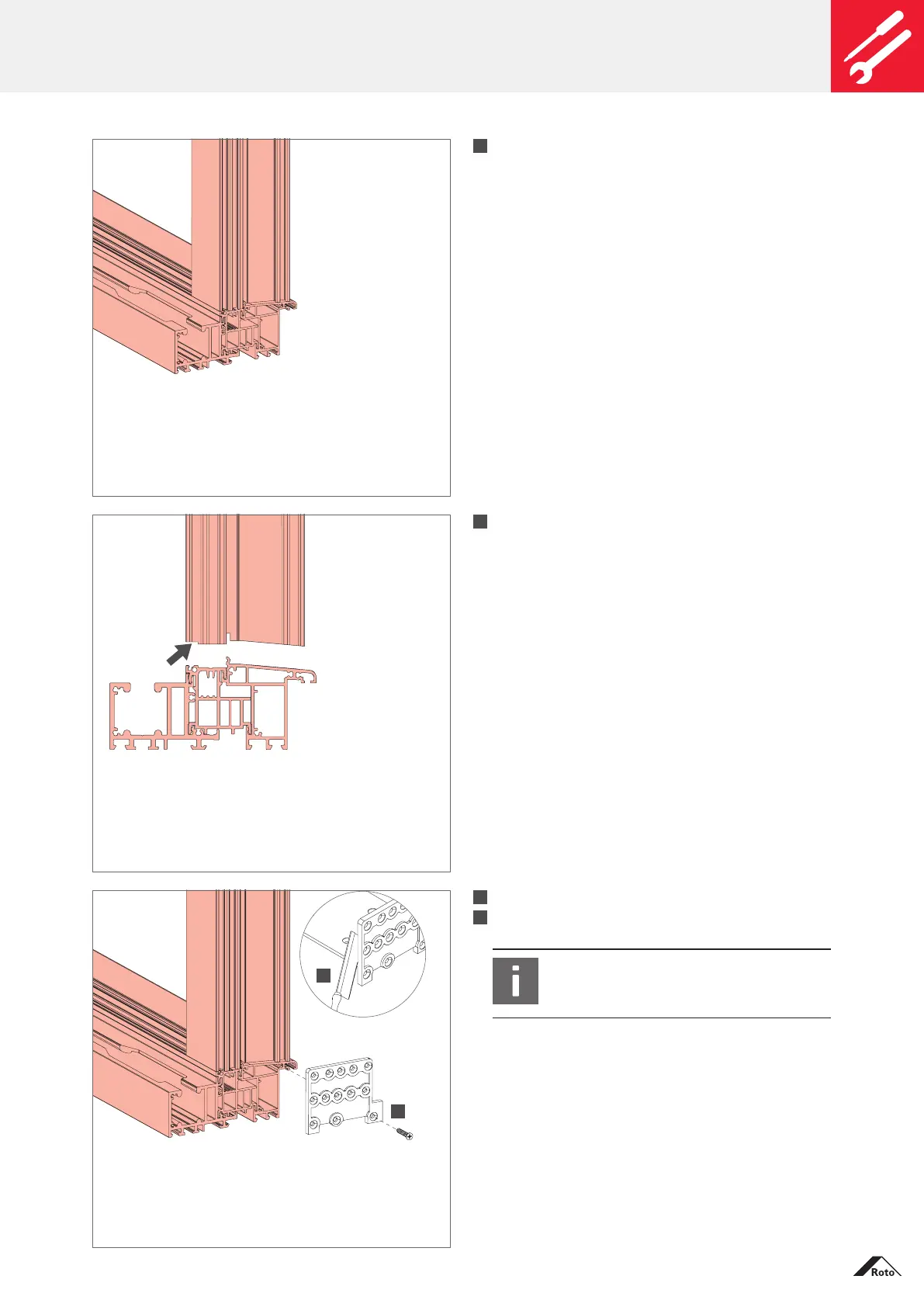

Installing the frame counter-routed
1.
Cut the enhanced threshold to the required length,
making sure that the cut edge is clean.
2.
Frame counter-routed, adapted to the enhanced
threshold BKV Eifel TB
3b
3a
3a
3b
Cut the base plate of the threshold bracket to length.
Secure the shortened threshold bracket as a spacer.
NOTE!
The screws shown are in the misc. small
components pack of the enhanced threshold.
