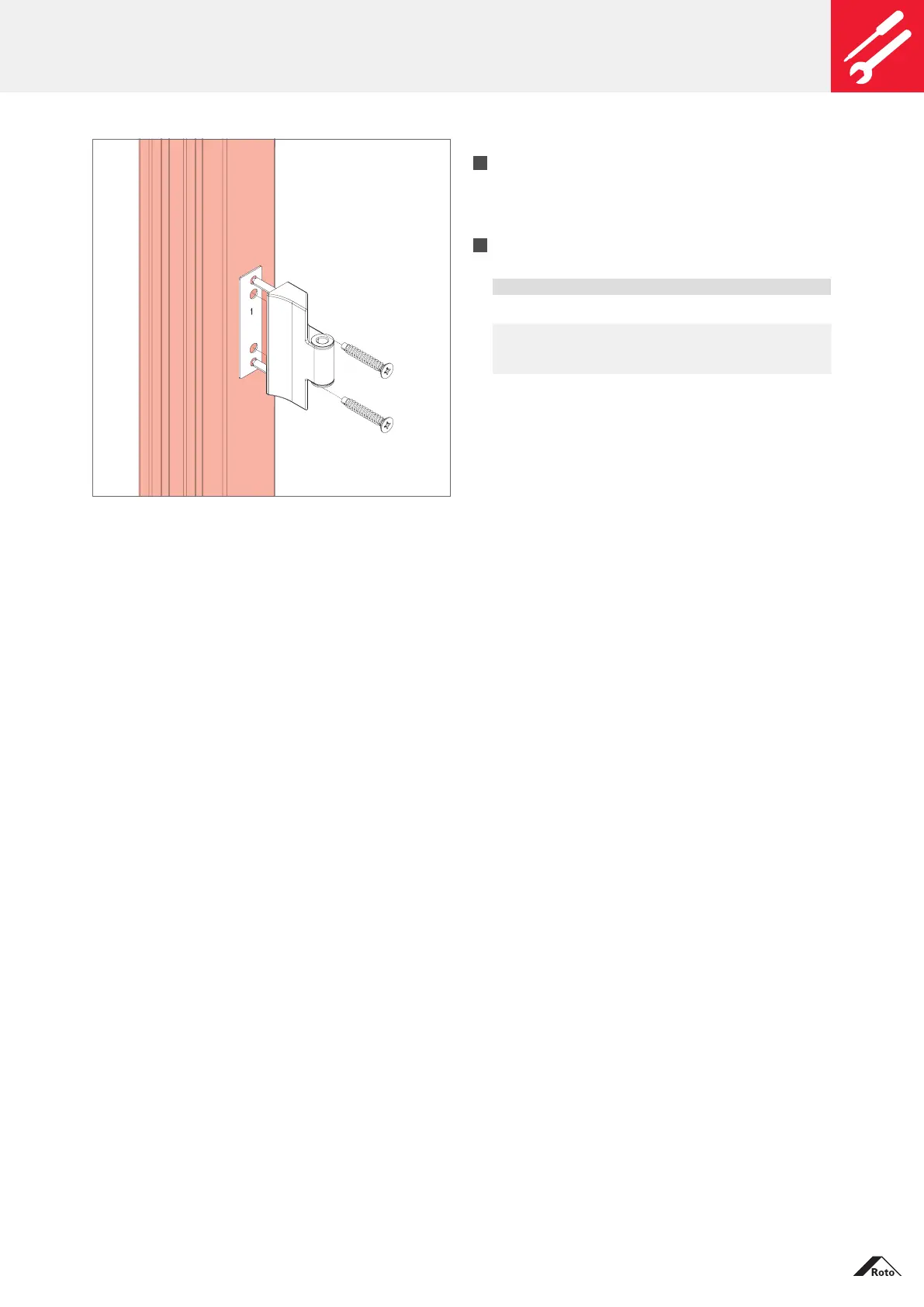

Installing the frame hinge-bearing
1.
Place the frame side of the folding sash on the frame
and align (observe the chamber dimension) and
carry out the drillings for the frame hinge with
drilling
jig (643365) (not dep.)
2.
Define the number of required spacers for the frame
hinge-bearing according to the table.
Quantity of spacers required
Frame hinge Overlap height OH Number of spacers
1mm 2mm
7 7 – –
8 6 –
9 – 6
10 10 – –
11 6 –
12 – 6
13 6 6
14 – 12
