Roto Patio Fold - Inserting the Drilling Jig

40  April 2015  IMO_374_EN_v1 Roto Patio Fold Subject to change.
Installation
Drilling and routing dimensions

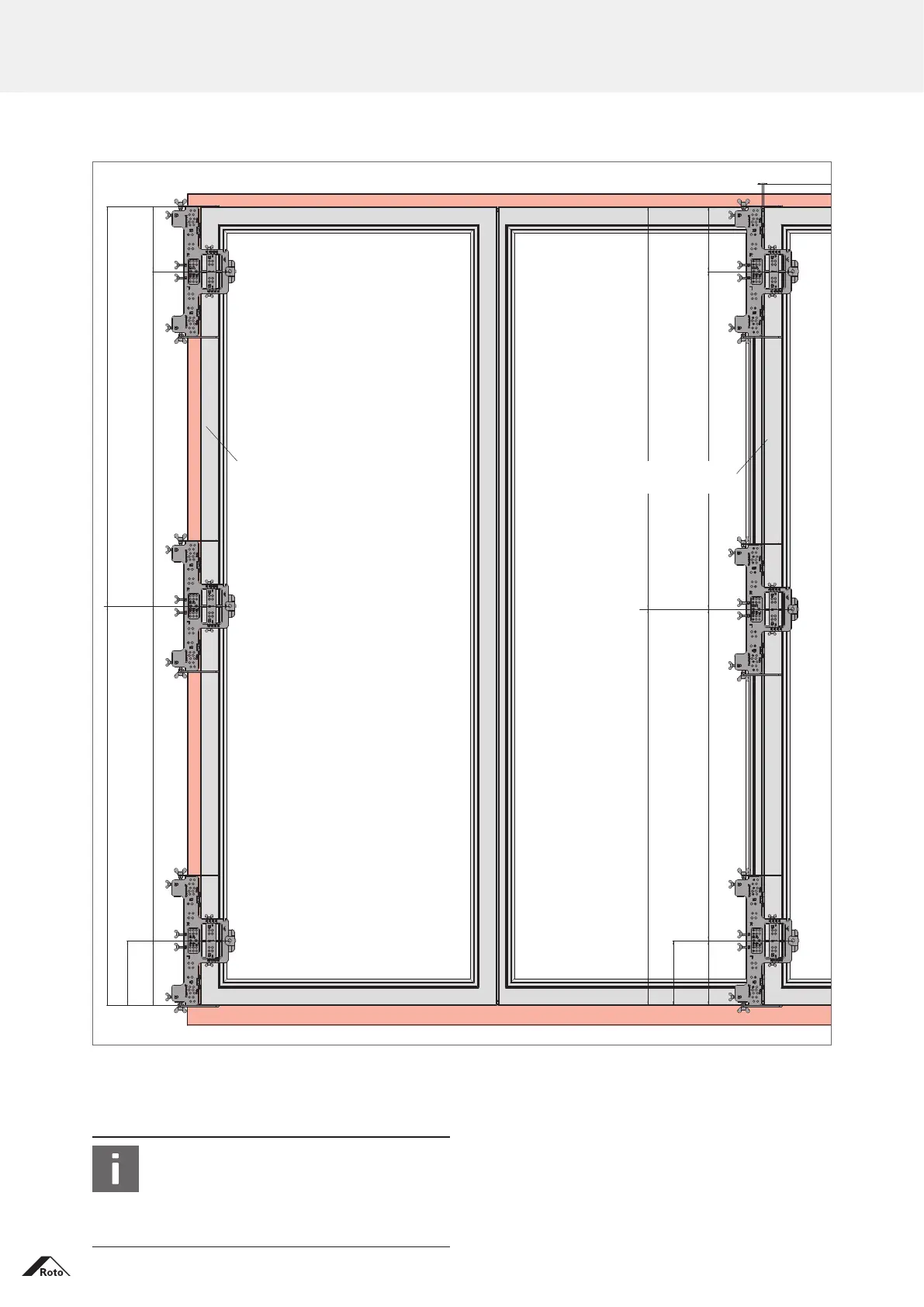

Inserting the drilling jig
205
=
205
=
SF = 4 - 6 mm
205
205
= =
Flügelmitte
Flügelmitte
max. 1000 mm max. 1000 mm
max. 1000 mm
max. 1000 mm
215*
215*
Position: Frame hinge-bearing Position: Sash hinge-bearing
Can be mounted on rod 10x10
(not included in Roto delivery scope)
Can be mounted on rod 10x10
(not included in Roto delivery scope)
Sash centre
Sash centre
* with enhanced threshold
NOTE!
SH ≤2400mm: Install 3 hinges for each sash
evenly distributed over the whole sash height.
SH ≥ 2401mm: Install 4 hinges for each sash
evenly distributed over the whole sash height.
