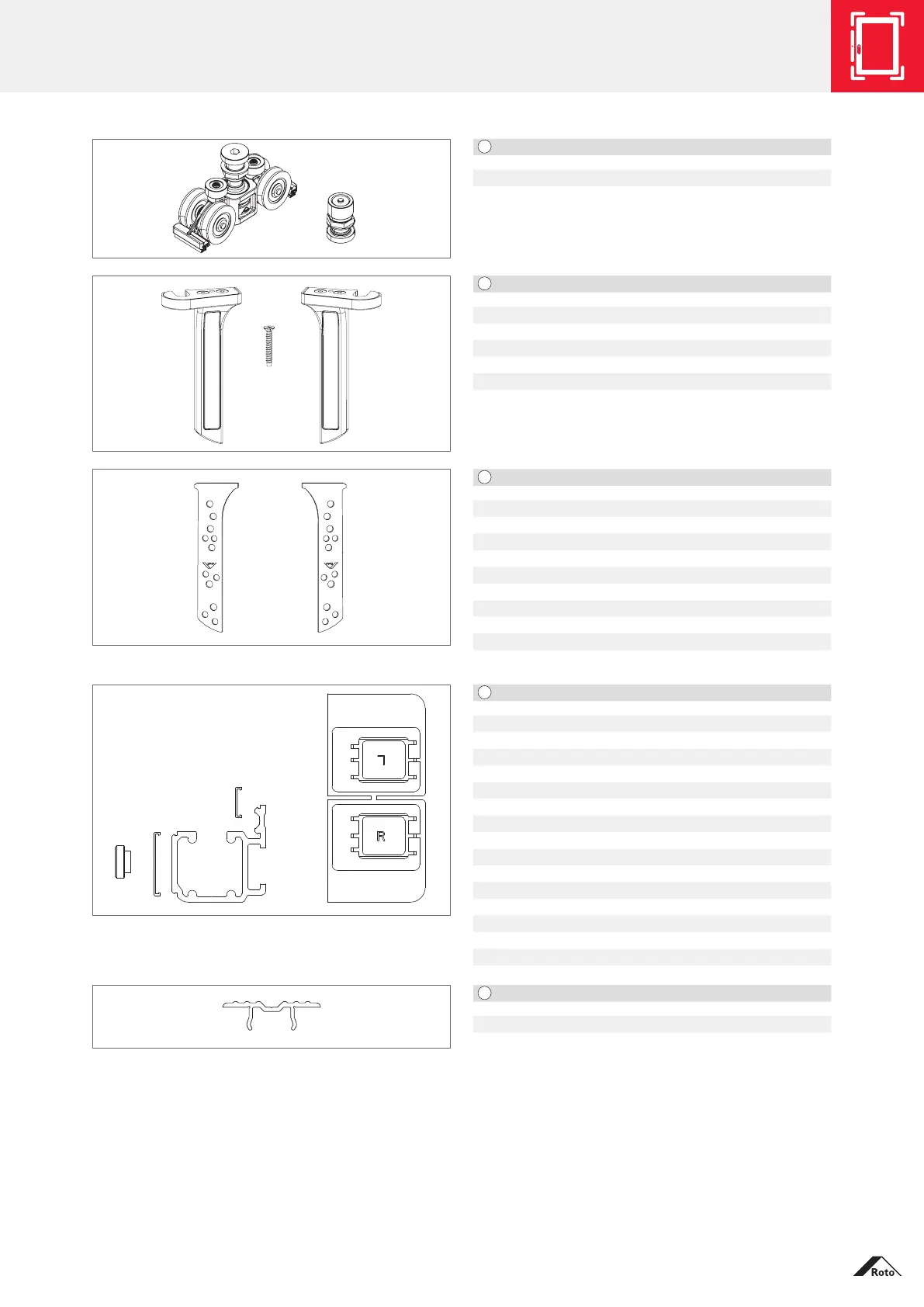

Hardware overview
Parts list standard roller track
1
Bogie set
Description PQ Material no.
Bogie and guide roller 1 642422
8x
2
Support bracket incl. accessories
Version Colour PQ Material no.
with pin 30mm White R07.2 1 739802
Medium bronze R05.3 1 739803
EV1 R01.1 1 739804
Black brown R04.4 1 739895
Unpainted unc. 1 739896
2a
Packer for support bracket
Height Colour PQ Material no.
3mm White R07.2 1 643351
Medium bronze R05.3 1 643352
EV1 R01.1 1 643353
Black brown R04.4 1 739897
Unpainted unc. 1 643354
6mm White R07.2 1 737260
Medium bronze R05.3 1 737261
EV1 R01.1 1 737262
Black brown R04.4 1 739898
Unpainted unc. 1 737263
8x
3
Roller track incl. accessories
Length Colour PQ Material no.
3000mm White R07.2 1 642436
Medium bronze R05.3 1 642440
EV1 Silver R01.1 1 642444
Black brown R04.4 1 738945
4000mm White R07.2 1 642437
Medium bronze R05.3 1 642441
EV1 Silver R01.1 1 642445
Black brown R04.4 1 738955
5000mm White R07.2 1 642438
Medium bronze R05.3 1 642442
EV1 Silver R01.1 1 642446
Black brown R04.4 1 765177
6000mm White R07.2 1 642439
Medium bronze R05.3 1 642443
EV1 Silver R01.1 1 642447
Black brown R04.4 1 738956
4
Cover strip for roller track
Length Colour PQ Material no.
1300mm EV1 Silver – 1 642452
